Home >> Nissan-Datsun >> 2006 >> Altima SE-R, Standard >> Repair and Diagnosis >> Drivelines & Axles >> Differentials & Drive Axles >> Front Axle >> Front Drive Shaft >> Removal and Installation >> Notes

Removal and Installation: Notes

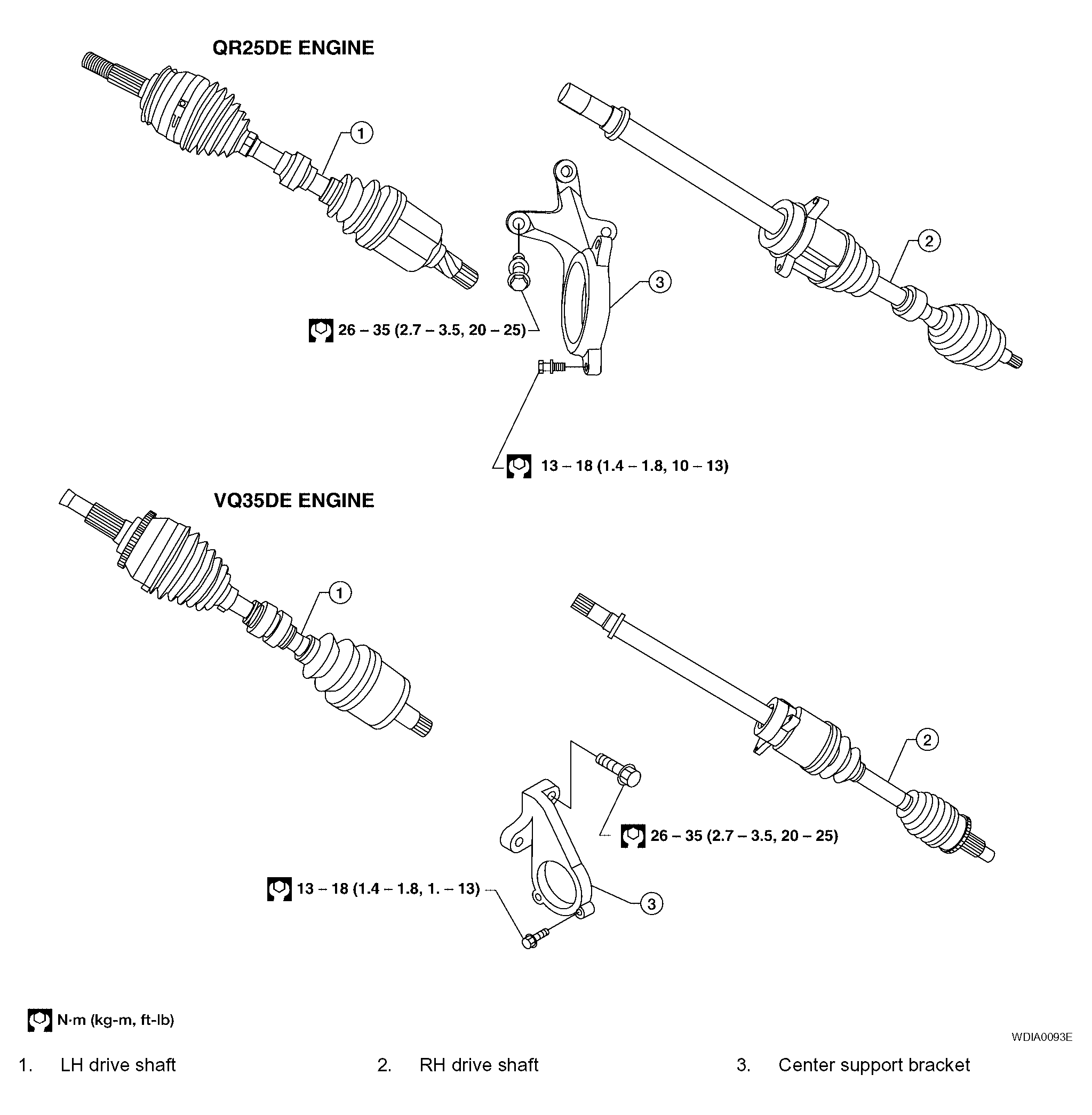

Fig 1: Removing/Installing Of Front Drive Shaft (With Specifications)

G04169544

Courtesy of NISSAN MOTOR CO., U.S.A.
