Dynamic Damper

  1. Use new damper bands when installing.
  2. Install dynamic damper from stationary-joint side while holding it securely.
    DYNAMIC DAMPER SPECIFICATIONS

    Unit: mm (in)
    Applied model RH LH
    Engine QR25DE VQ35DE QR25DE VQ35DE
    "A" 207 - 213 (8.1 - 8.4) - 207 - 213 (8.1 - 8.4) 207 - 213 (8.1 - 8.4)
    "B" 50 (2.0) - 50 (2.0) 50 (2.0)

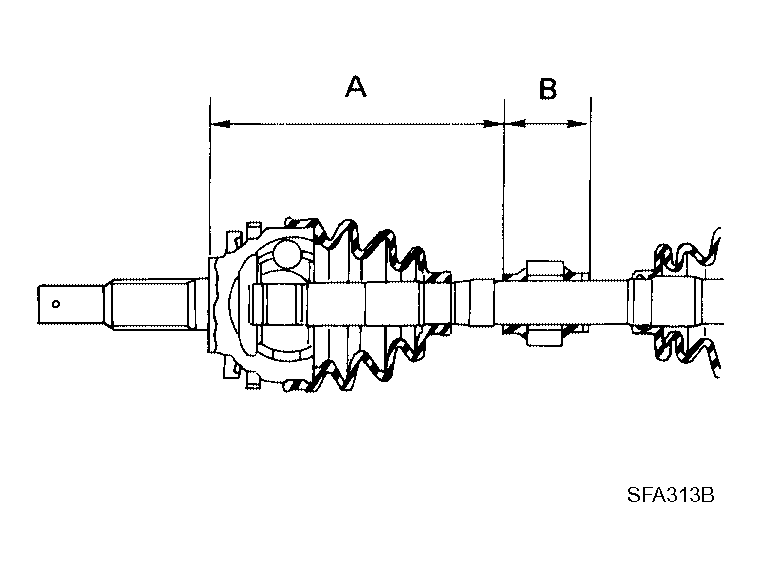

    Fig 1: Installing Dynamic Damper
    G04169578Courtesy of NISSAN MOTOR CO., U.S.A.
