Trouble Diagnosis: Schematic

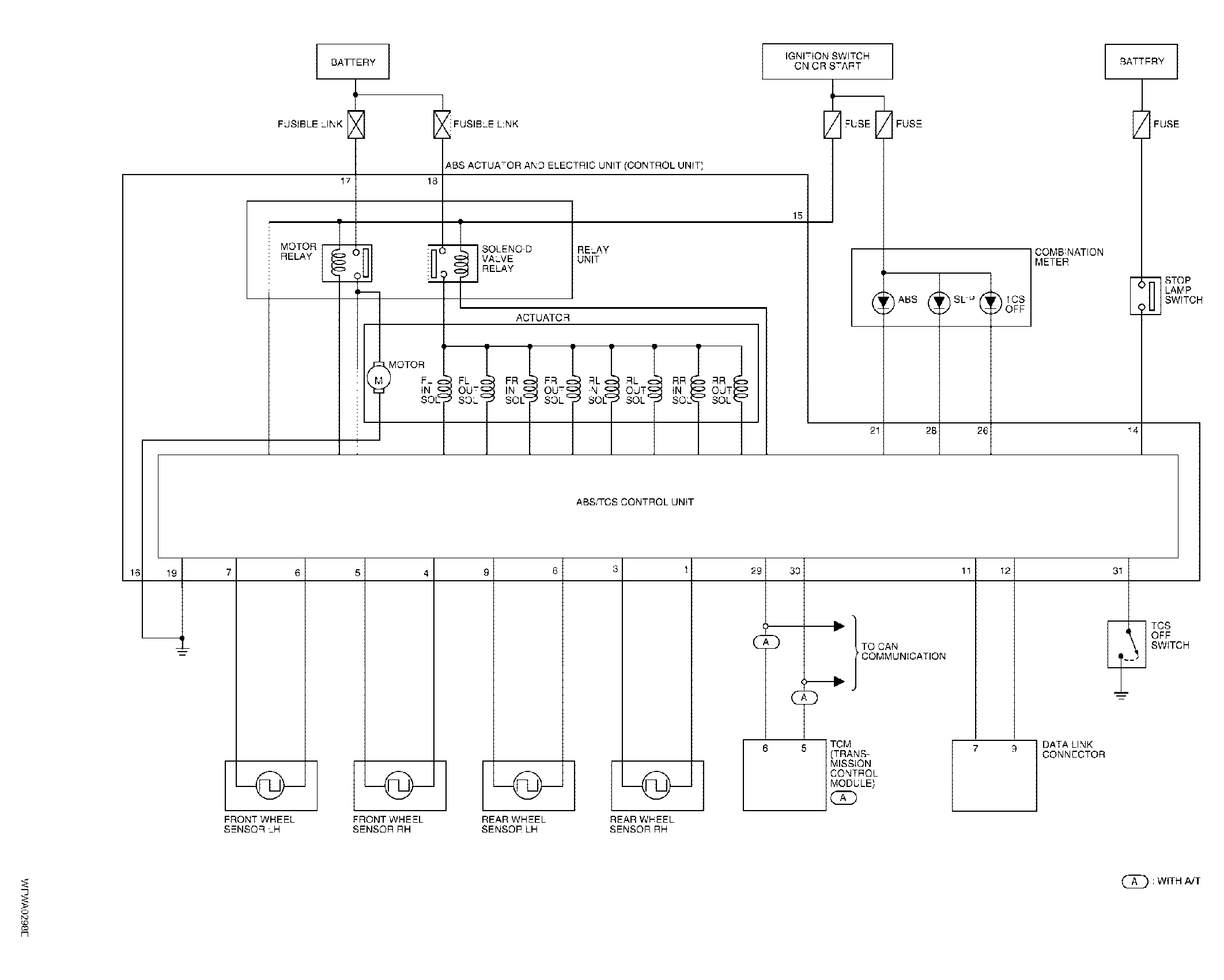

Fig 1: Trouble Diagnosis Schematic Diagram

G04169832

Courtesy of NISSAN MOTOR CO., U.S.A.
