Preliminary Check

Low fluid level may indicate brake pad wear or leakage from brake line.

Fig 1: Checking Brake Fluid Level

Courtesy of NISSAN MOTOR CO., U.S.A.

Is brake fluid filled between MAX and MIN lines on reservoir tank and is brake fluid clean and free of contamination?

OK: GO TO 2.

NG: Repair. GO TO 2.

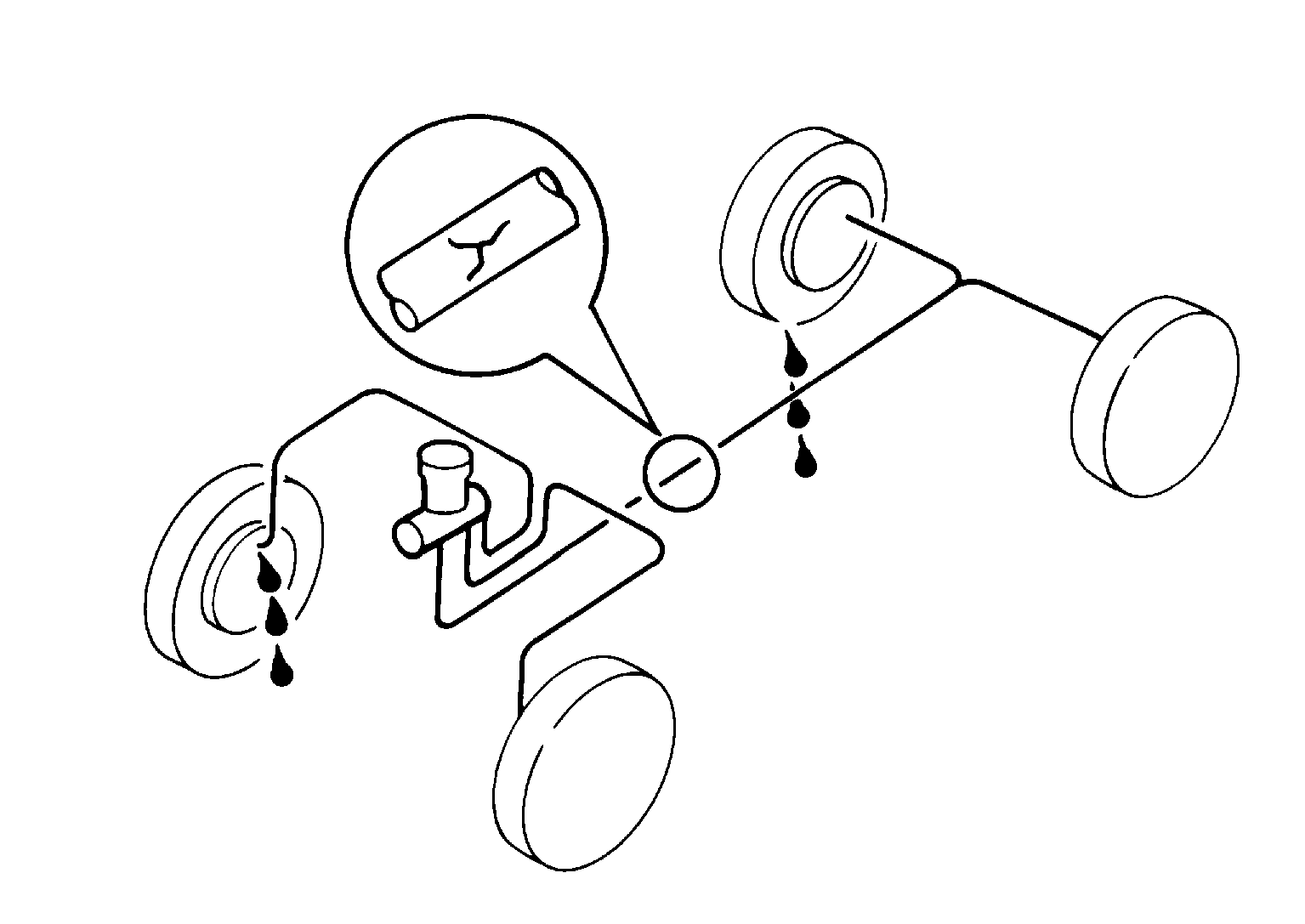

Fig 2: Checking For Brake Line Leaks

Courtesy of NISSAN MOTOR CO., U.S.A.

Is leakage present at or around brake lines, tubes or hoses, or are any of these parts cracked or damaged?

OK: GO TO 3.

NG: Repair. GO TO 3.

Check brake booster for operation and air tightness.

Fig 3: Checking Brake Booster

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to , "AIRTIGHT CHECK ".

Is brake booster airtight and functioning properly?

YES: GO TO 4.

NO: Replace. GO TO 4.

Check brake pads and rotors.

Refer to , "FRONT DISC BRAKE " and , "REAR DISC BRAKE ".

Fig 4: Checking Brake Pads And Rotors

Courtesy of NISSAN MOTOR CO., U.S.A.

Are brake pads and rotors functioning properly?

YES: GO TO 5.

NO: Replace.

Check brake fluid level in reservoir tank again.

Fig 5: Checking Brake Fluid Level

Courtesy of NISSAN MOTOR CO., U.S.A.

Is brake fluid filled between MAX and MIN lines on reservoir tank and is brake fluid clean and free of contamination?

OK: GO TO 6.

NG: Add brake fluid as necessary.

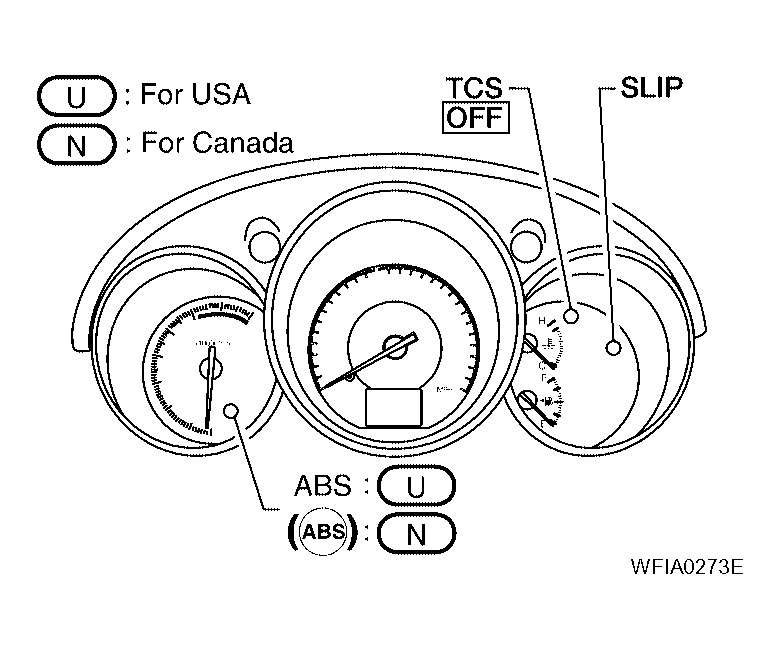

Fig 6: Checking Warning Lamp And Indicator Lamps Activation

Courtesy of NISSAN MOTOR CO., U.S.A.

Do ABS warning lamp, TCS OFF indicator lamp and SLIP indicator lamp turn on when ignition switch is turned ON?

YES: GO TO 7.

NO: Check combination meter. Refer to , "SELF-DIAGNOSIS FUNCTION ".

Do lamps turn off when engine is started?

YES: GO TO 8.

NO: Go to Self-diagnosis. Refer to , "SELF-DIAGNOSIS PROCEDURE ".

Drive vehicle at speeds over 30 km/h (19 MPH) for at least one minute.

Do warning lamp and indicator lamps remain off after vehicle has been driven at 30 km/h (19 MPH) for at least one minute?

YES: Inspection End.

NO: Go to Self-diagnosis. Refer to , "SELF-DIAGNOSIS PROCEDURE ".
