Sunroof Switch System Check

1. Disconnect sunroof motor assembly connector.
2. Turn ignition switch ON.
3. Check voltage between sunroof motor assembly connector R5 terminals 1, 2, 3, 10 and ground.
   TERMINAL VOLTAGE SPECIFICATION



   Connector	Terminals		Condition	Voltage (V) (Approx.)
   	(+)	(-)
   R5	1	Ground	Sunroof switch in TILT UP position	Battery voltage
   			Other than above	0
   	2		Sunroof switch in TILT DOWN position	Battery voltage
   			Other than above	0
   	3		Sunroof switch in CLOSE position	Battery voltage
   			Other than above	0
   	10		Sunroof switch in OPEN position	Battery voltage
   			Other than above	0

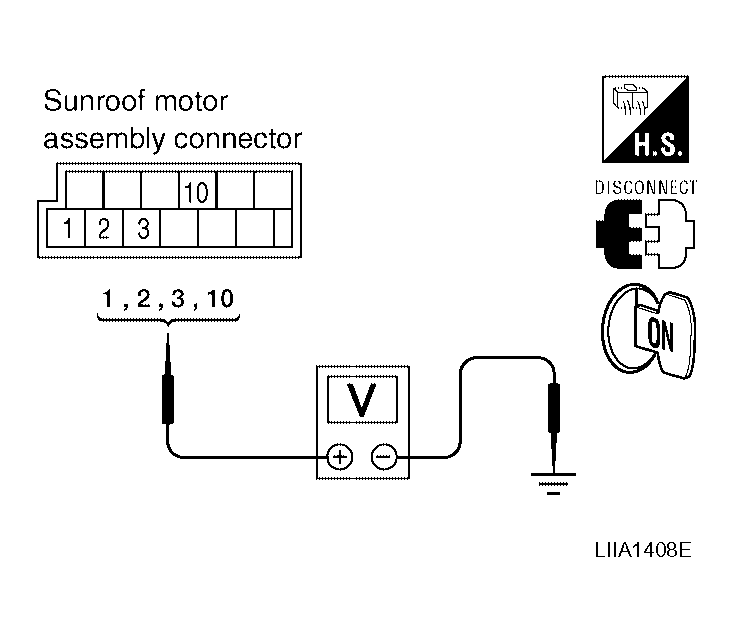

   Fig 1: Checking Voltage Between Sunroof Motor Assembly Connector R5 Terminals And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Replace sunroof motor. Refer to , "SUNROOF MOTOR ".

NG: GO TO 2.

1. Turn ignition switch OFF.
2. Disconnect sunroof switch connector.
3. Check continuity between sunroof motor assembly connector R5 terminals 1, 2, 3, 10 and sunroof switch connector R4 terminals 1, 3, 4, 6.

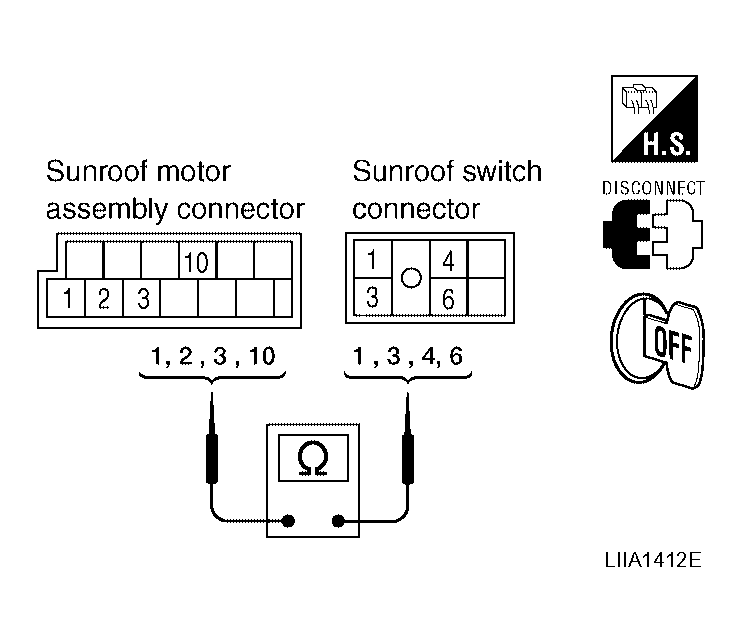

   Fig 2: Checking Continuity Between Sunroof Motor Assembly Connector R5 Terminals And Sunroof Switch Connector R4 Terminals

   Courtesy of NISSAN MOTOR CO., U.S.A.

   1 - 6: Continuity should exist.

   2 - 4: Continuity should exist.

   3 - 3: Continuity should exist.

   10 - 1: Continuity should exist.

OK or NG

OK: GO TO 3.

NG: Repair or replace harness between sunroof motor assembly and sunroof switch.

Operate sunroof slide switch and check continuity of the sunroof switch as follows.

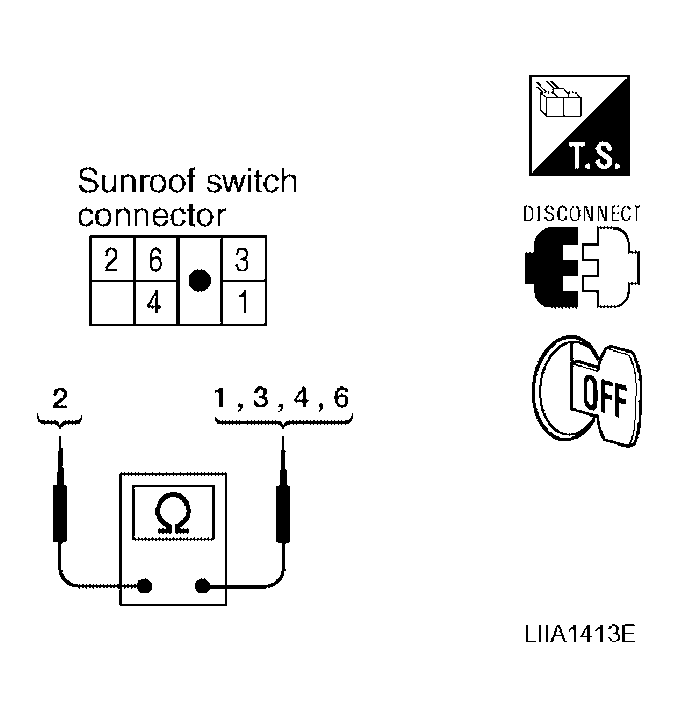

Fig 3: Checking Continuity Between Sunroof Switch Connector Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Check the condition of the harness and connector.

NG: Replace sunroof switch.
