Removal and Installation: Notes

CAUTION:

Always work with a helper.
After installing sunroof unit assembly or glass lid assembly, check gap adjustment and make sure
there is no malfunction.
Handle glass lid assembly with care to prevent damage.
When taking sunroof unit out, use shop cloths to protect the seats and trim from damage.

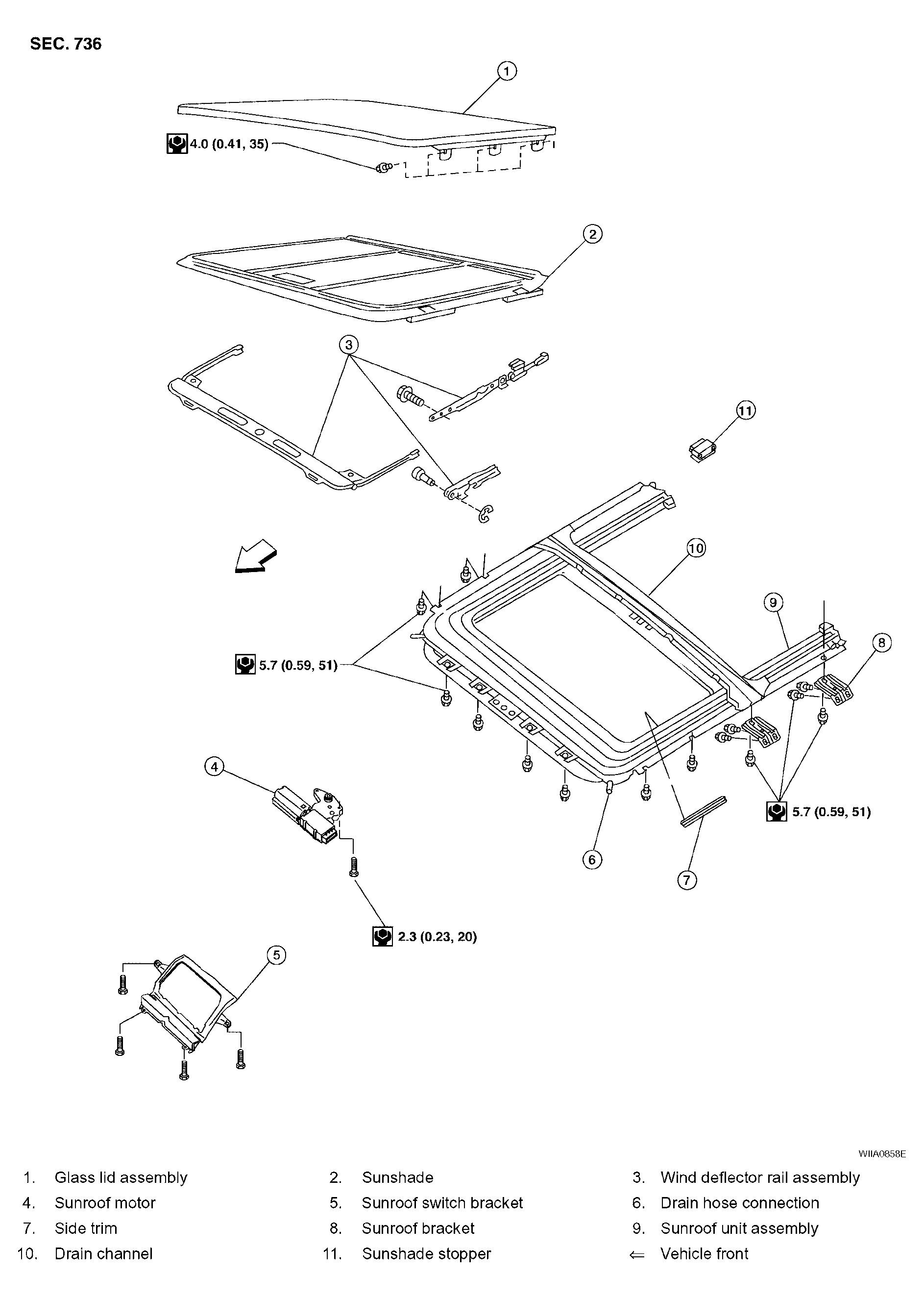

Fig 1: Removing And Installing Sunroof (With Specifications)

Courtesy of NISSAN MOTOR CO., U.S.A.
