Sun Roof/T-Top/Convertible Top: Sunroof: Inspection: Adjustment: Notes

CAUTION:

• Always work with a helper.
• Handle glass lid assembly with care to prevent damage.

NOTE:

• For easier and more accurate installation, always mark each point before removal.
• After any adjustment, check sunroof operation and glass lid assembly alignment.

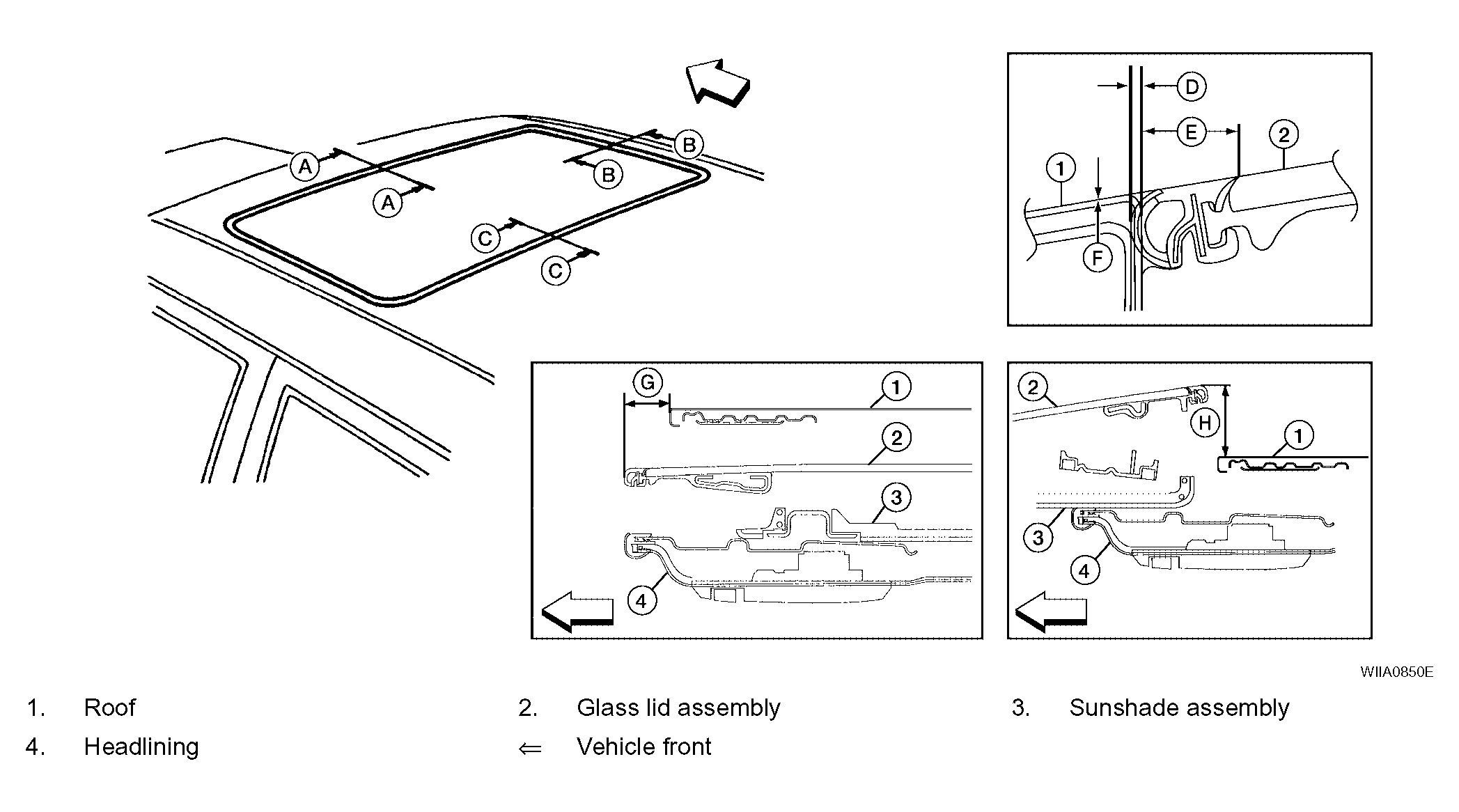

Fig 1: Adjusting Sunroof

Courtesy of NISSAN MOTOR CO., U.S.A.

SUNROOF ADJUSTMENT DESCRIPTION

Unit: mm (in)
A-A		B-B	C-C
D.	1.8 +/- 0.7 (0.07 +/- 0.03) (1)	1.8 +/- 0.7 (0.07 +/- 0.03) (1)	1.8 +/- 0.7 (0.07 +/- 0.03) (1)
E.	11.5 +/- 0.7 (0.45 +/- 0.03) (1)	11.5 +/- 0.7 (0.45 +/- 0.03) (1)	11.5 +/- 0.7 (0.45 +/- 0.03) (1)
F.	0 +/- 1.5 (0 +/- 0.06) (1)	0 +/- 1.5 (0 +/- 0.06) (1)	0 +/- 1.5 (0 +/- 0.06) (1)
G.	-	-	90.0 (3.54) (4) - 26.1 (1.03) (2)
H.	-	-	43.3 (1.70) (3)
(1) With glass lid assembly in fully closed position (2) With glass lid assembly in fully open position (3) With glass lid assembly tilted up (4) With glass lid assembly in comfort stop state
