Door Switch Check

  1. CHECK DOOR SWITCH INPUT SIGNAL

    With CONSULT-II

    Check door switches ("DOOR SW-DR" and "DOOR SW-AS") in "DATA MONITOR" mode with CONSULT-II.

    MONITOR ITEM CONDITION

    Monitor item Condition
    DOOR SW-DR Door open : ON
    Door closed : OFF
    DOOR SW-AS Door open : ON
    Door closed : OFF
    Fig 1: CONSULT II Display - Data Monitor
    G04077386Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Turn ignition switch OFF.
    2. Check voltage between BCM connector and ground.
      TERMINAL VOLTAGE SPECIFICATION

      Item Connector Terminals Condition Voltage (V) (Approx)
      (+) (-)
      RH M18 12 Ground Door OPEN (switch closed) 0
      Door CLOSED (switch open) Battery voltage
      LH M19 47 Door OPEN (switch closed) 0
      Door CLOSED (switch open) Battery voltage
      Fig 2: Checking Voltage Between BCM Connector And Ground
      G04170381Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: Door switches are OK.

    NG: GO TO 2.

  2. CHECK DOOR SWITCH CIRCUIT
    1. Disconnect front door switches and BCM.
    2. Check continuity between front door switch connector B8 (LH) or B108 (RH) terminal 2 and BCM connectors M18, M19 terminals 12, 47.

      Front door LH

      2 - 47: Continuity should exist.

      Front door RH

      2 - 12: Continuity should exist.

    3. Check continuity between front door switch connector B8 (LH) or B108 (RH) terminal 2 and ground.

      2 - Ground: Continuity should not exist.

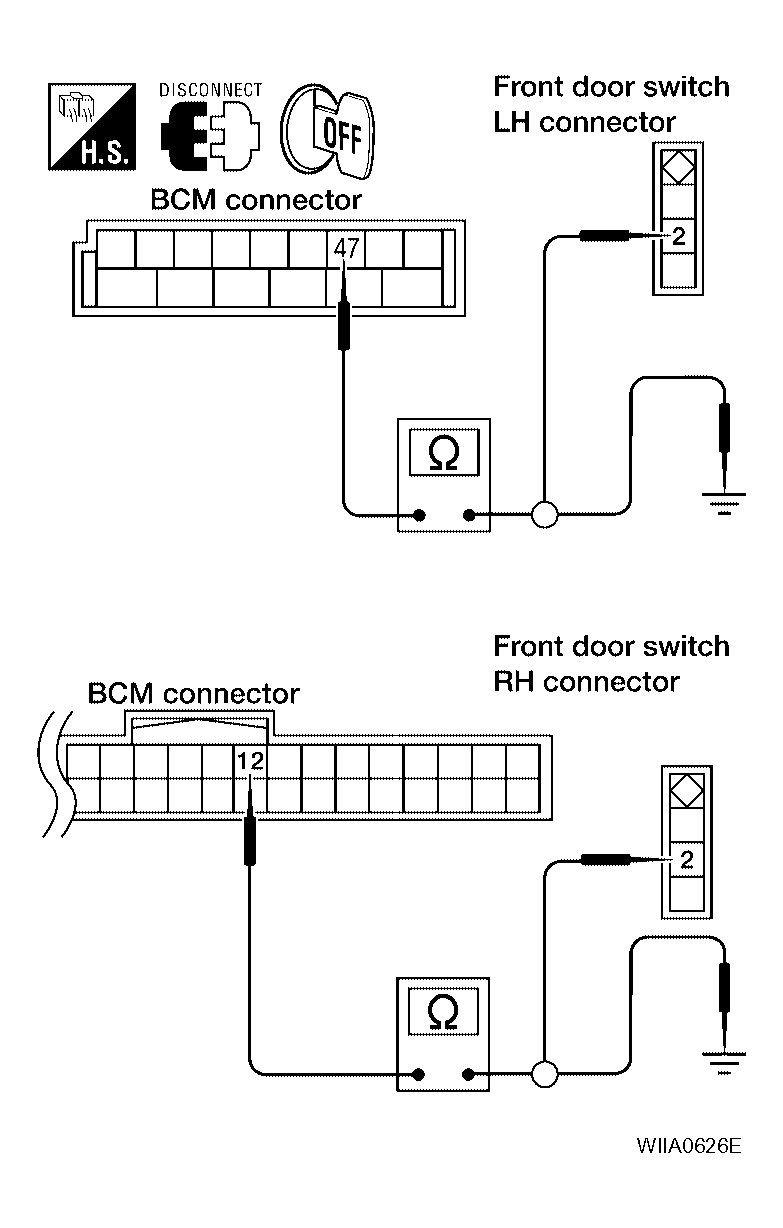

      Fig 3: Checking Continuity Between Front Door Switch Connector B8 (LH) Or B108 (RH) Terminal 2 And Ground
      G04170382Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO 3.

    NG: Repair or replace harness between BCM and sunroof motor assembly.

  3. CHECK DOOR SWITCH

    Check continuity between each door switch terminal 2 and body ground part of door switch.

    TERMINAL CONTINUITY

    Terminals Condition Continuity
    2 Body ground part of door switch Door switch pushed No
    Door switch released Yes

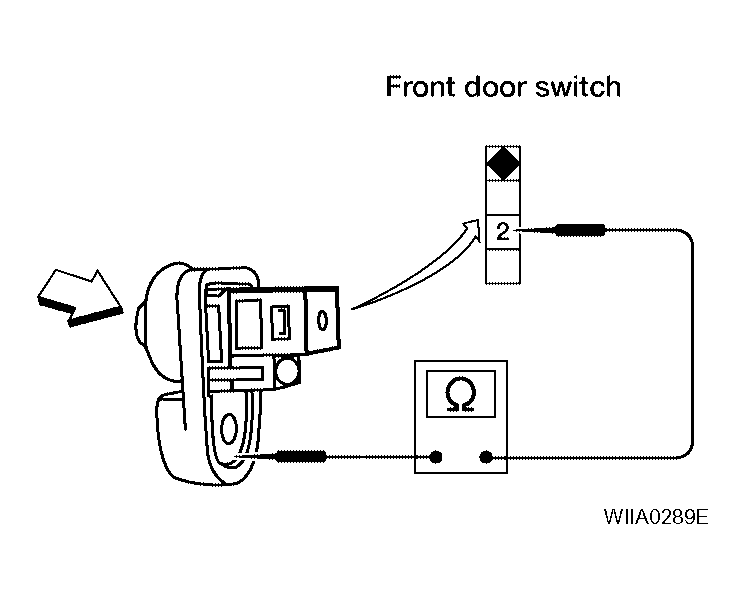

    Fig 4: Checking Continuity Between Door Switch Terminal 2 And Body Ground
    G04170383Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO 4.

    NG: Replace malfunctioning door switch.

  4. CHECK BCM OUTPUT SIGNAL
    1. Connect BCM connector.
    2. Check voltage between BCM connector M18 terminal 12, M19 terminal 47 and ground.

      12 - Ground: Battery voltage

      47 - Ground: Battery voltage

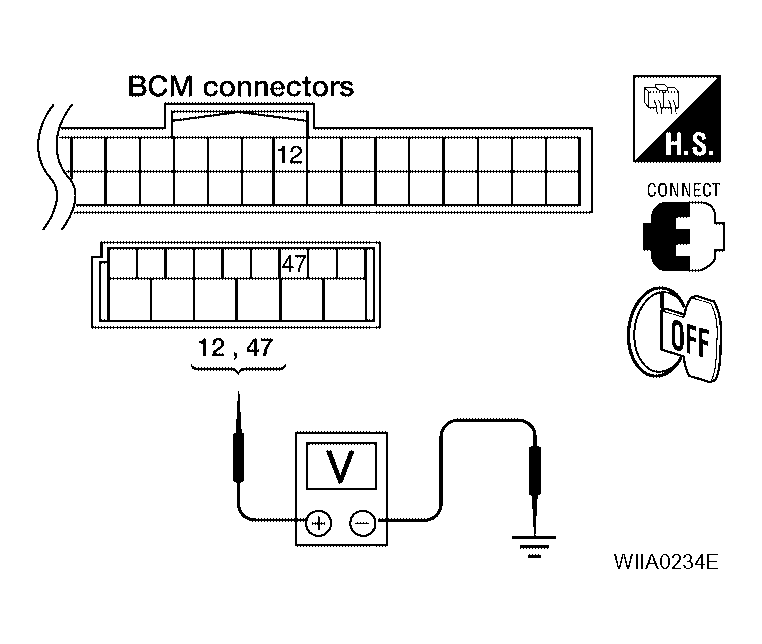

      Fig 5: Checking Voltage Between BCM Connector M18 Terminal 12, M19 Terminal 47 And Ground
      G04170384Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: Check the condition of the harness and the connector.

    NG: Replace BCM. Refer to , "REMOVAL AND INSTALLATION OF BCM ".
