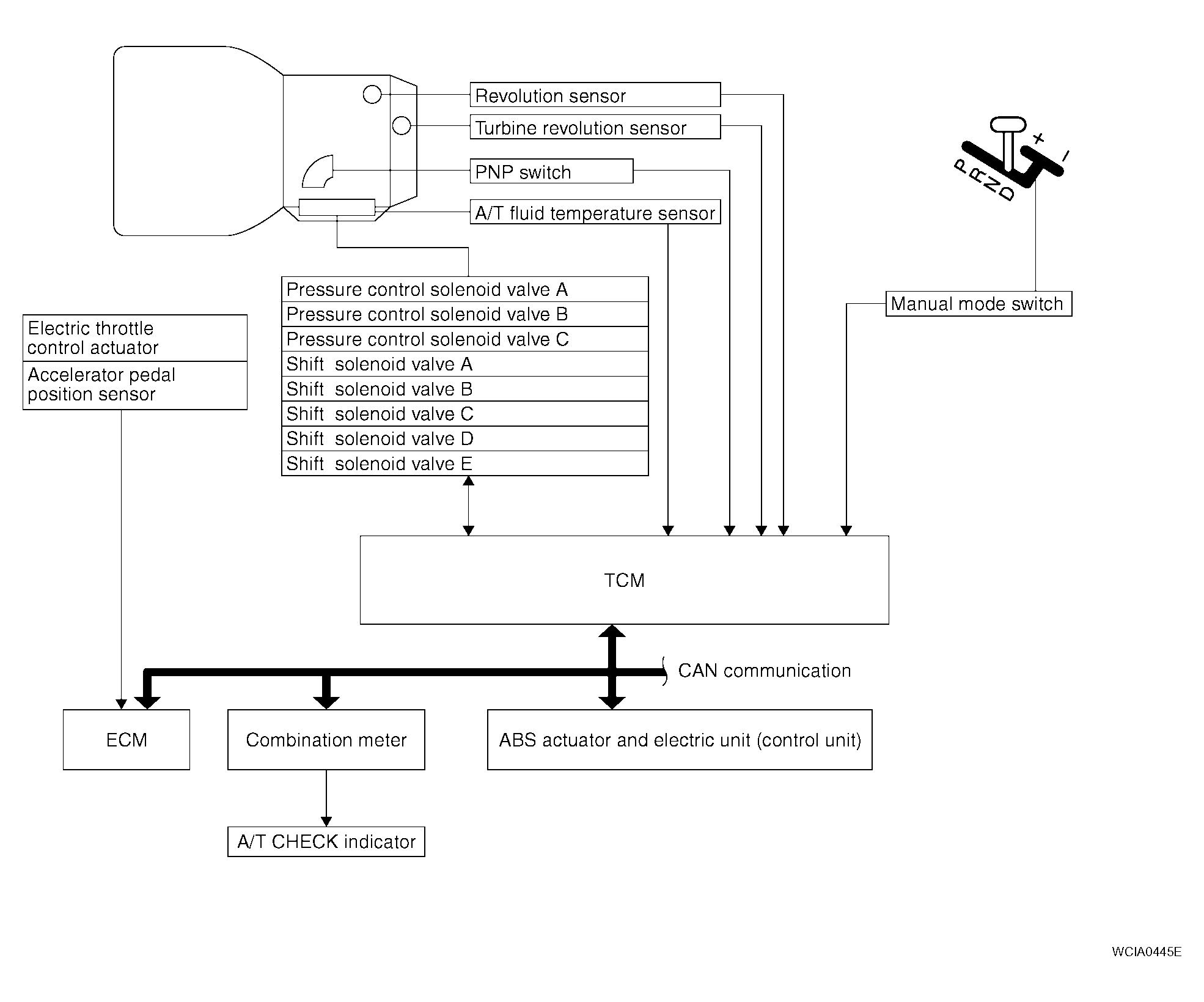

Home >> Nissan-Datsun >> 2006 >> Altima SE-R, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - Re5F22A - DTC Index, Troubleshooting Introduction >> Re5F22A >> A/T Control System >> TCM Function >> Control System Diagram
