Rear Suspension Assembly: Components

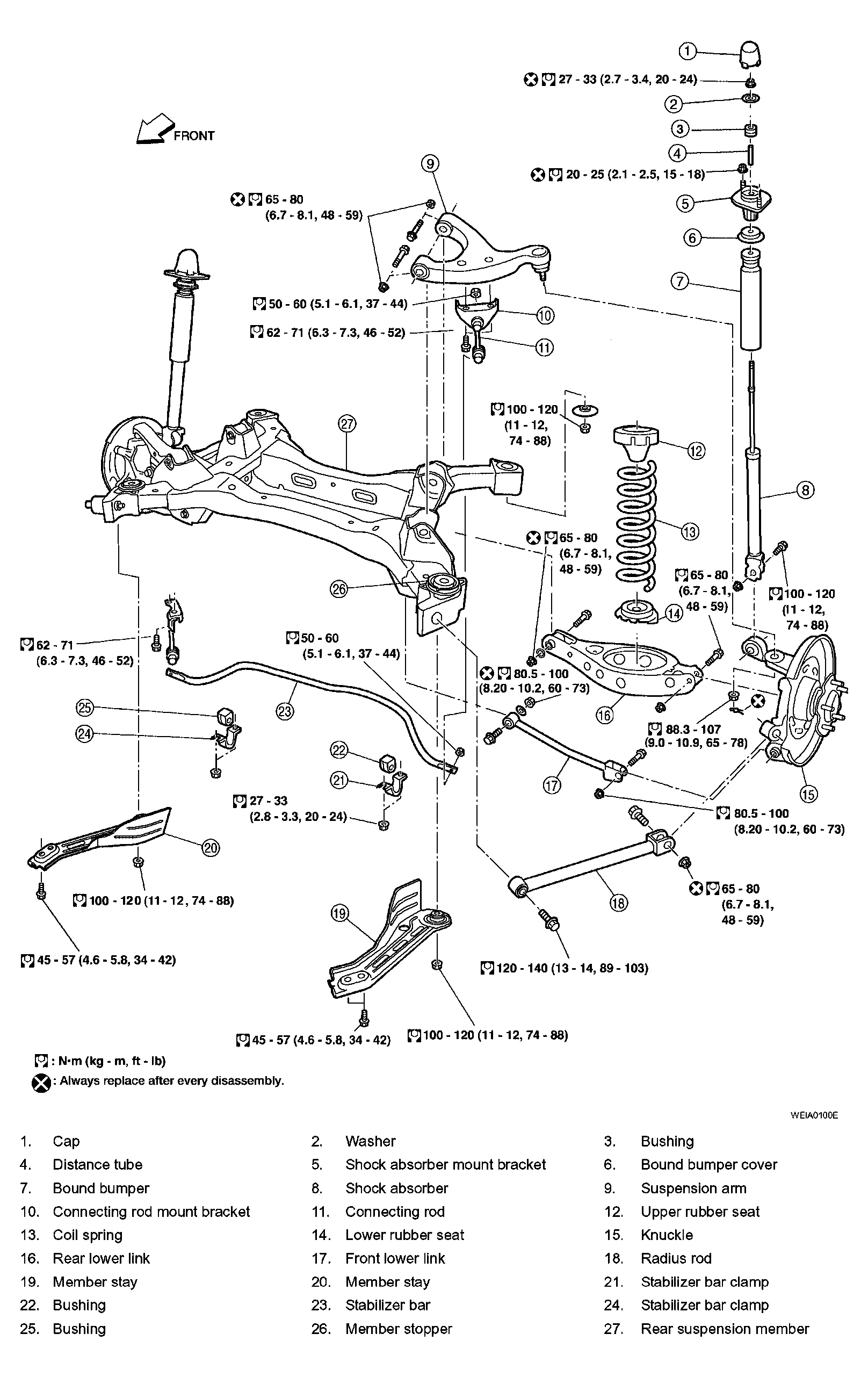

Fig 1: Exploded View Of Rear Suspension (With Specifications)

G04169634

Courtesy of NISSAN MOTOR CO., U.S.A.
