Front Wheel Turning Angle

  1. Set the front wheels in a straight-ahead position. Then move the vehicle forward until the front wheels rest on the turning radius gauge as shown.
  2. Rotate steering wheel all the way right and left; measure the turning angles "A" and "B" as shown.

    Wheel turning angle (full turn) : Refer to  , "FRONT WHEEL ALIGNMENT (UNLADEN*1) ".

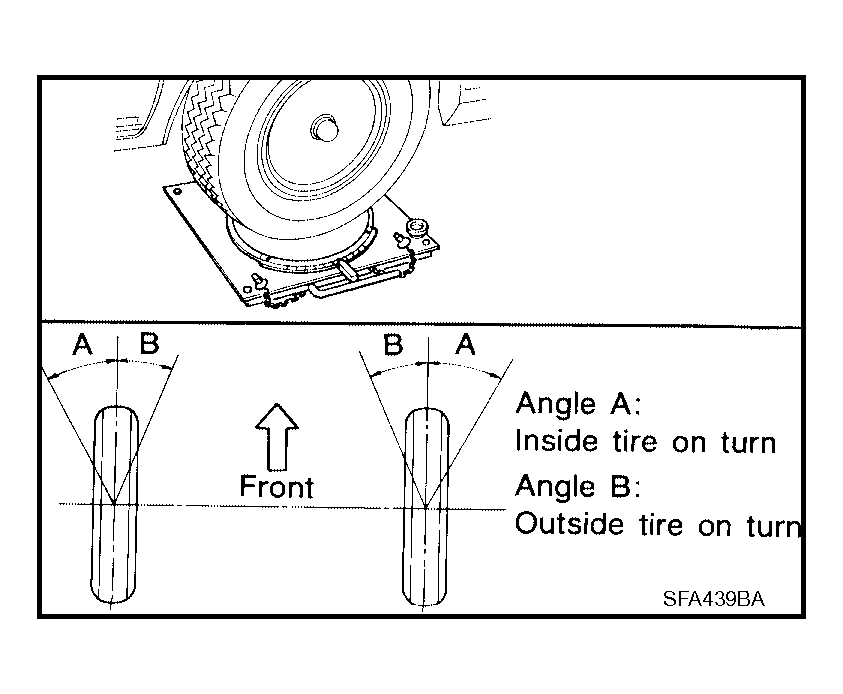

    Fig 1: Measuring Front Wheel Turning Angle
    G04169607Courtesy of NISSAN MOTOR CO., U.S.A.
