Removal and Installation

Refer to Fig 1 for hydraulic line routing. Remove any components necessary to access lines.

CAUTION: Be careful not to kink or bend lines.

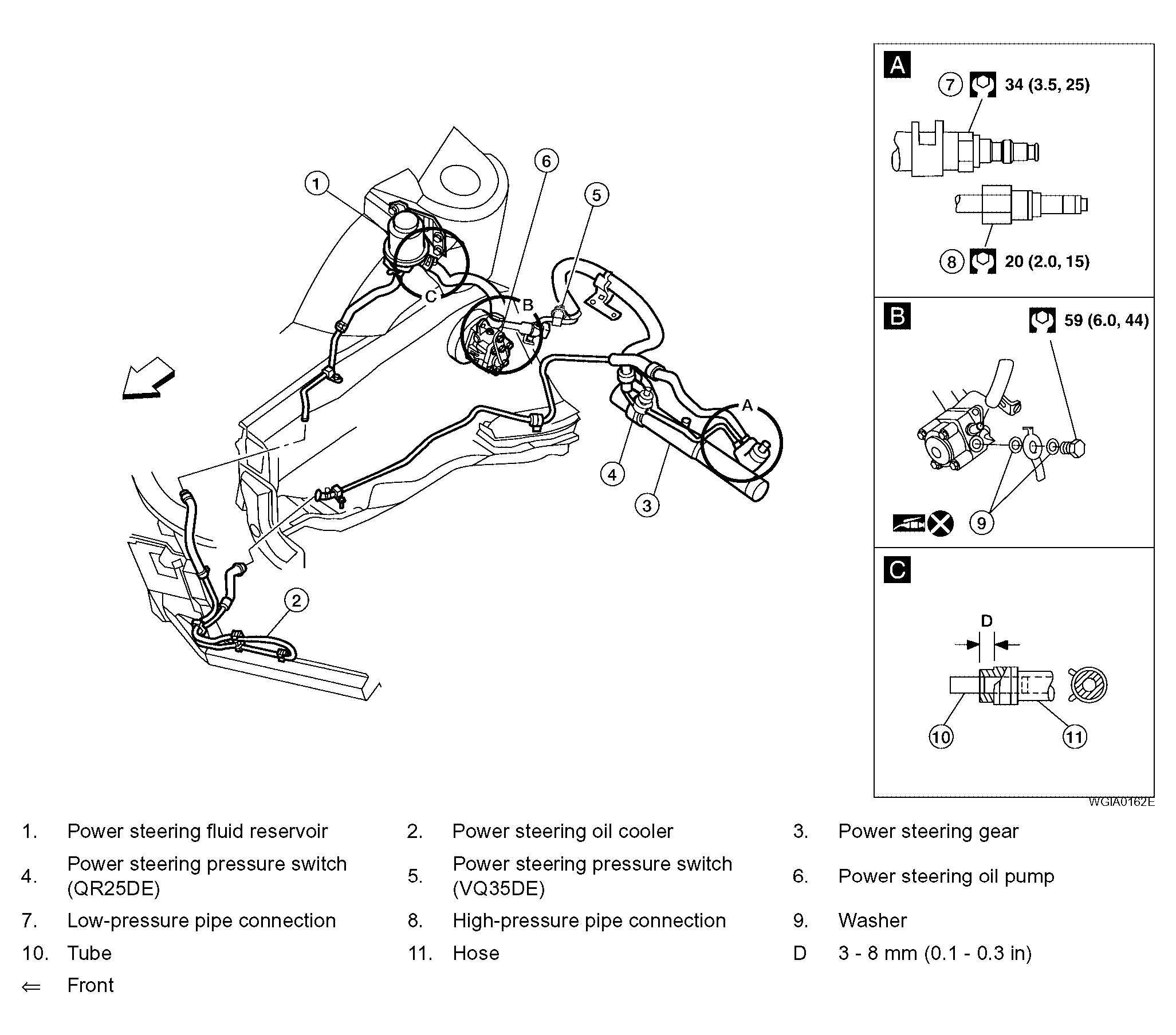

Fig 1: Removing And Installing Hydraulic Line (With Specifications)

Courtesy of NISSAN MOTOR CO., U.S.A.
