Display with Pushed "DEST" button

WARNING: This page is about a different car, the 2005 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

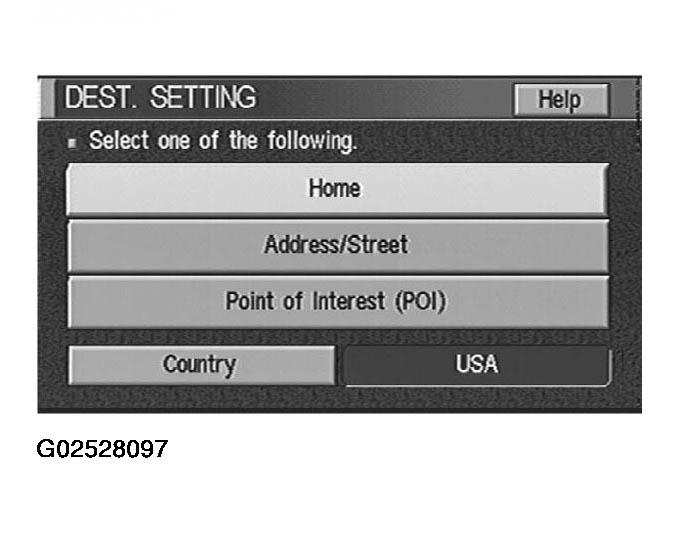

Easy Mode ("Short Menus" ON)

Fig 1: Scan Tool Display - Easy Mode (Short Menus ON)
Courtesy of NISSAN MOTOR CO., U.S.A.
Expert Mode ("Short Menus" OFF)

Fig 2: Scan Tool Display - Expert Mode (Short Menus OFF)
Courtesy of NISSAN MOTOR CO., U.S.A.

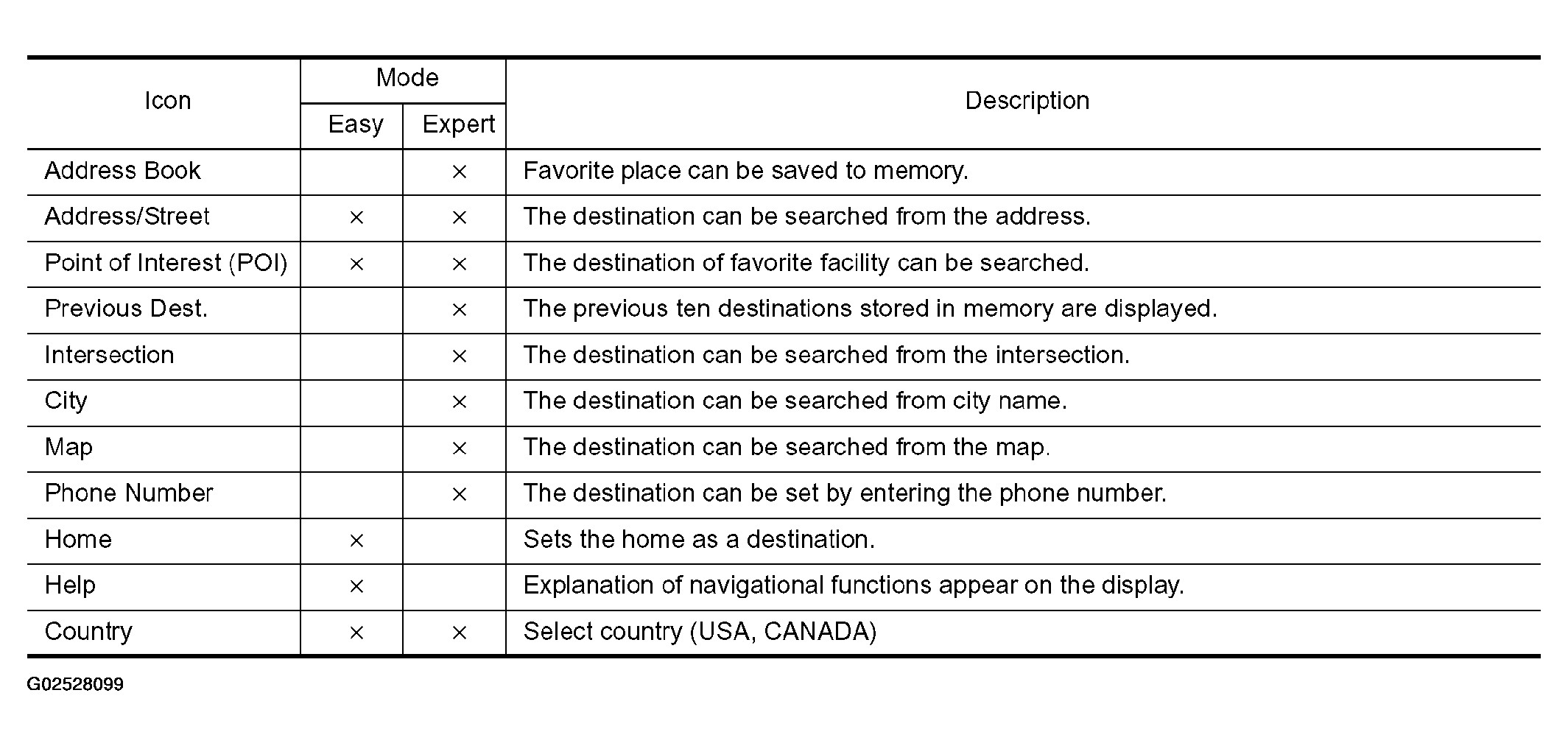

Fig 3: Icon Mode Function Description

Courtesy of NISSAN MOTOR CO., U.S.A.
