Altima SE-R, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System - Introduction (VQ35DE)
>>
Trouble Diagnosis
>>
Circuit Diagram
Circuit Diagram

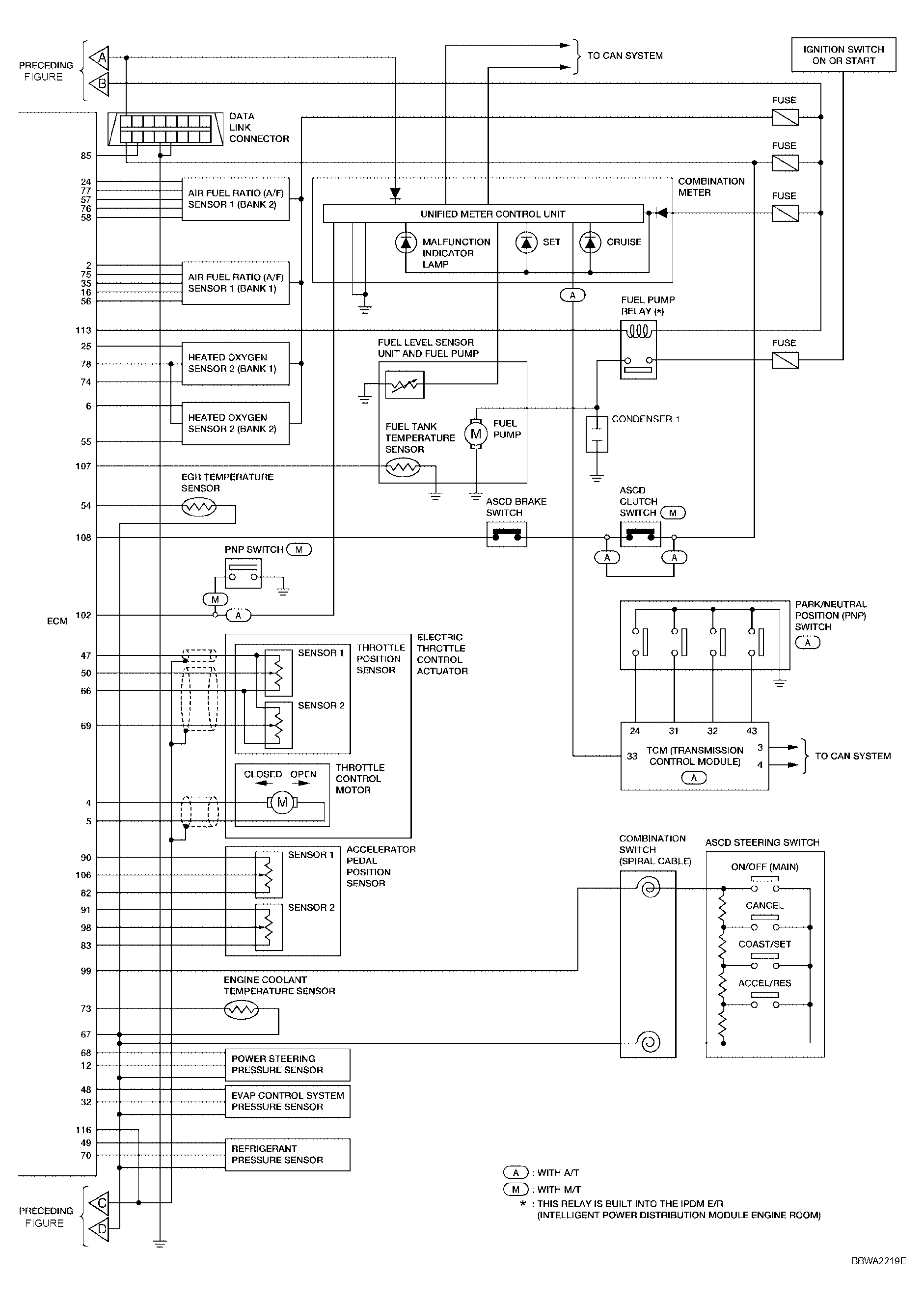

Fig 1: Trouble Diagnosis - Circuit Diagram (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

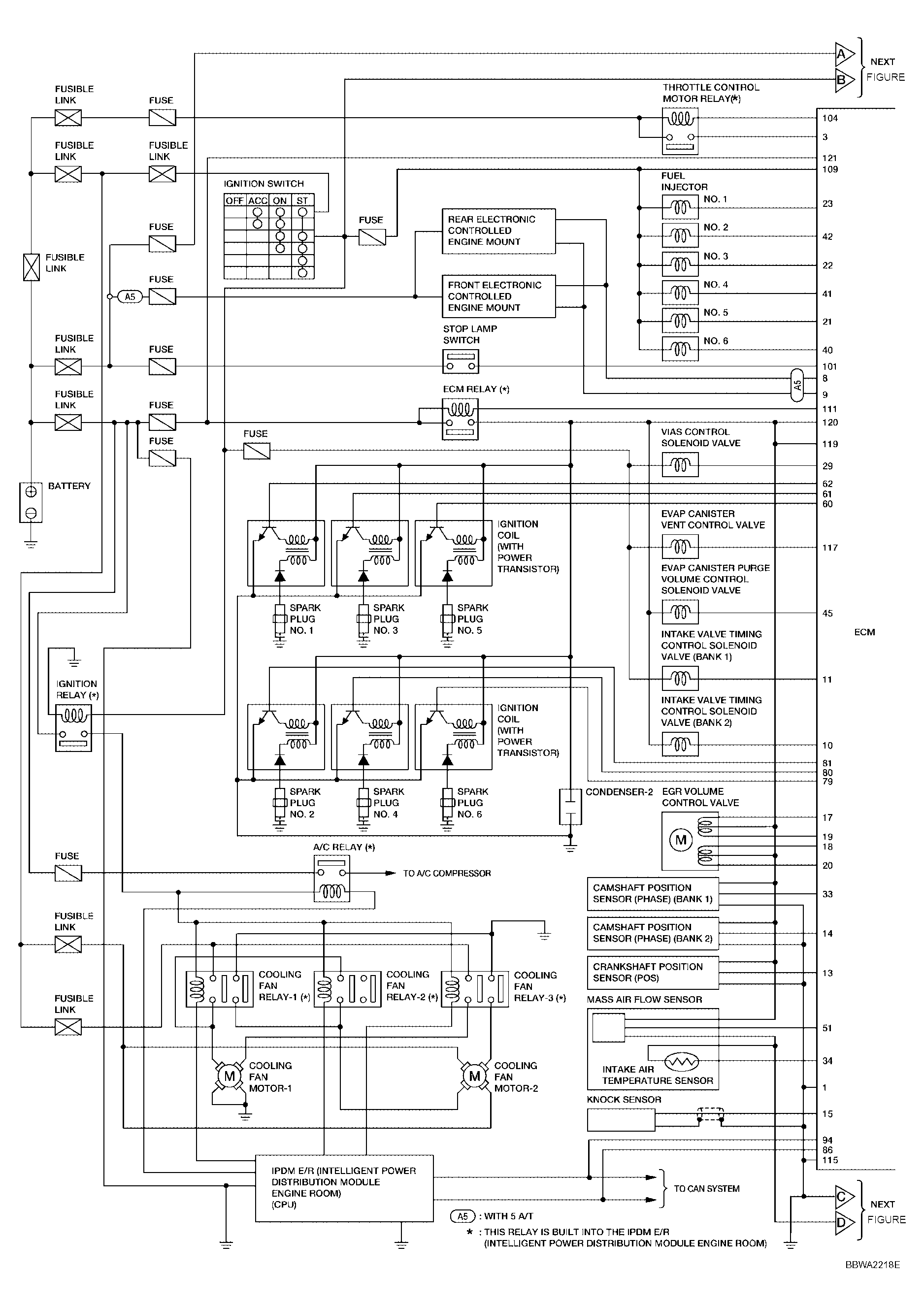

Fig 2: Trouble Diagnosis - Circuit Diagram (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
