Notes
Disassembly and Assembly: Notes

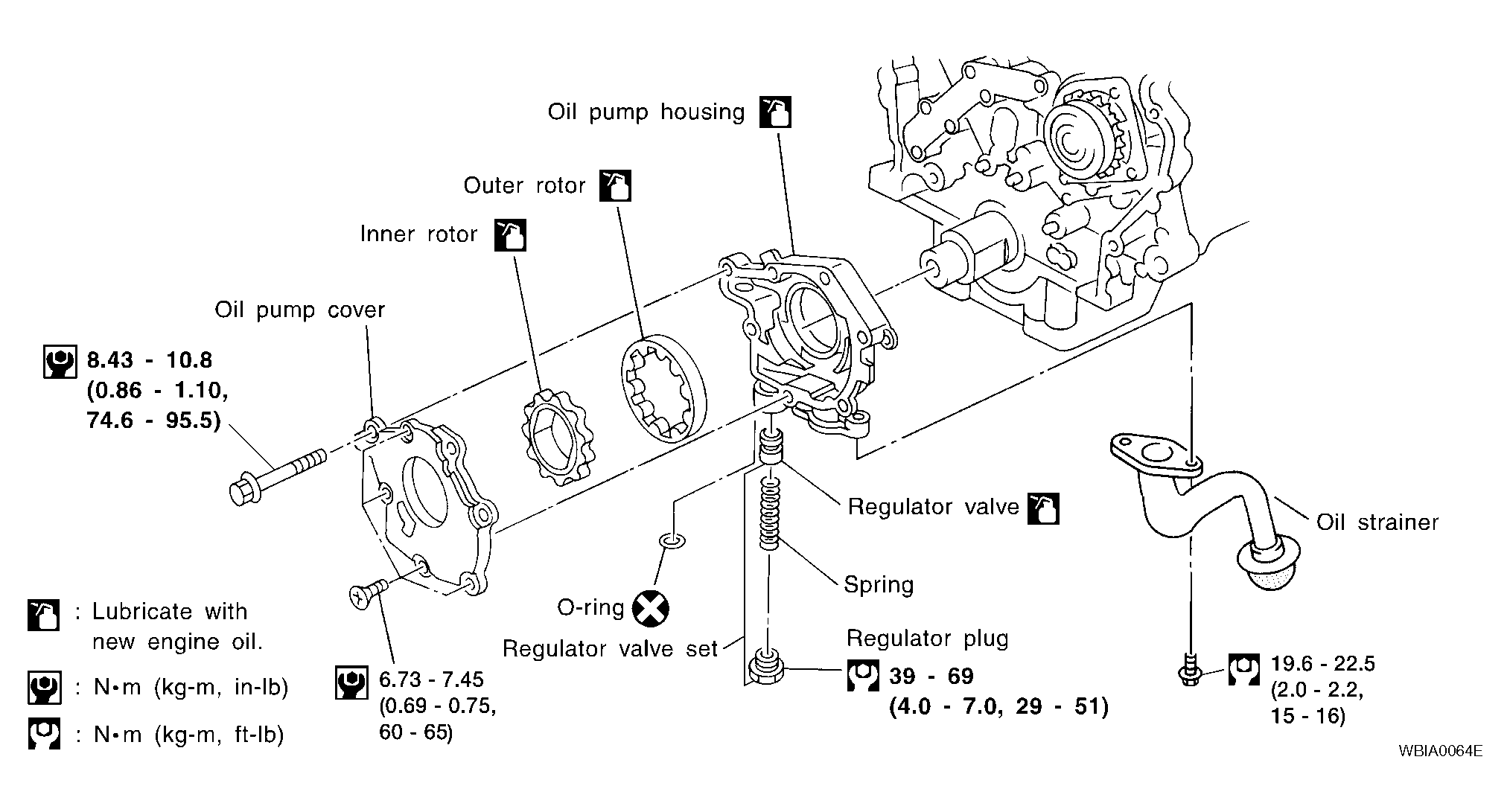

Fig 1: Disassembling And Assembling Of Oil Pump
Courtesy of NISSAN MOTOR CO., U.S.A.
Disassemble as shown.
Assembly is in the reverse order of Disassembly. When assembling the oil pump, apply engine oil to the rotors.
