Oil Level

NOTE:
  • Before starting the engine, check the oil level. If the engine is already started, stop it and allow 10 minutes before checking.
  • Check that the oil level is within the range as indicated on the dipstick.
  • If it is out of range, add oil as necessary. Refer to , "RECOMMENDED FLUIDS AND LUBRICANTS ".

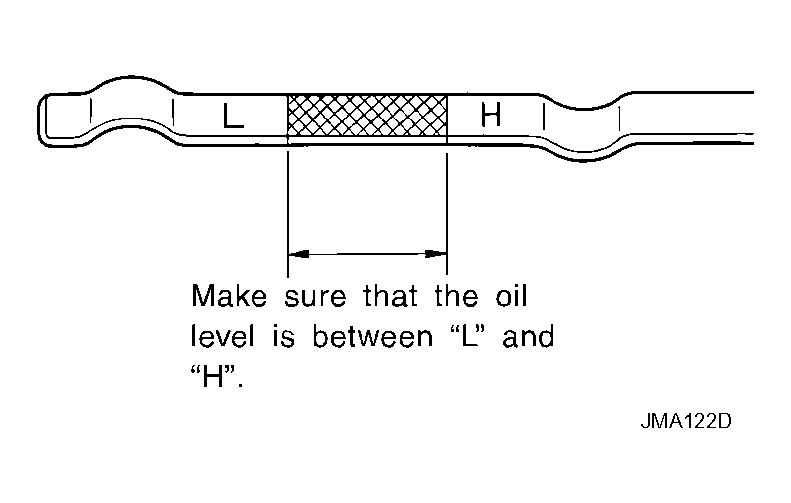

    Fig 1: Inspecting Oil Level
    G04165848Courtesy of NISSAN MOTOR CO., U.S.A.
