Preliminary Check

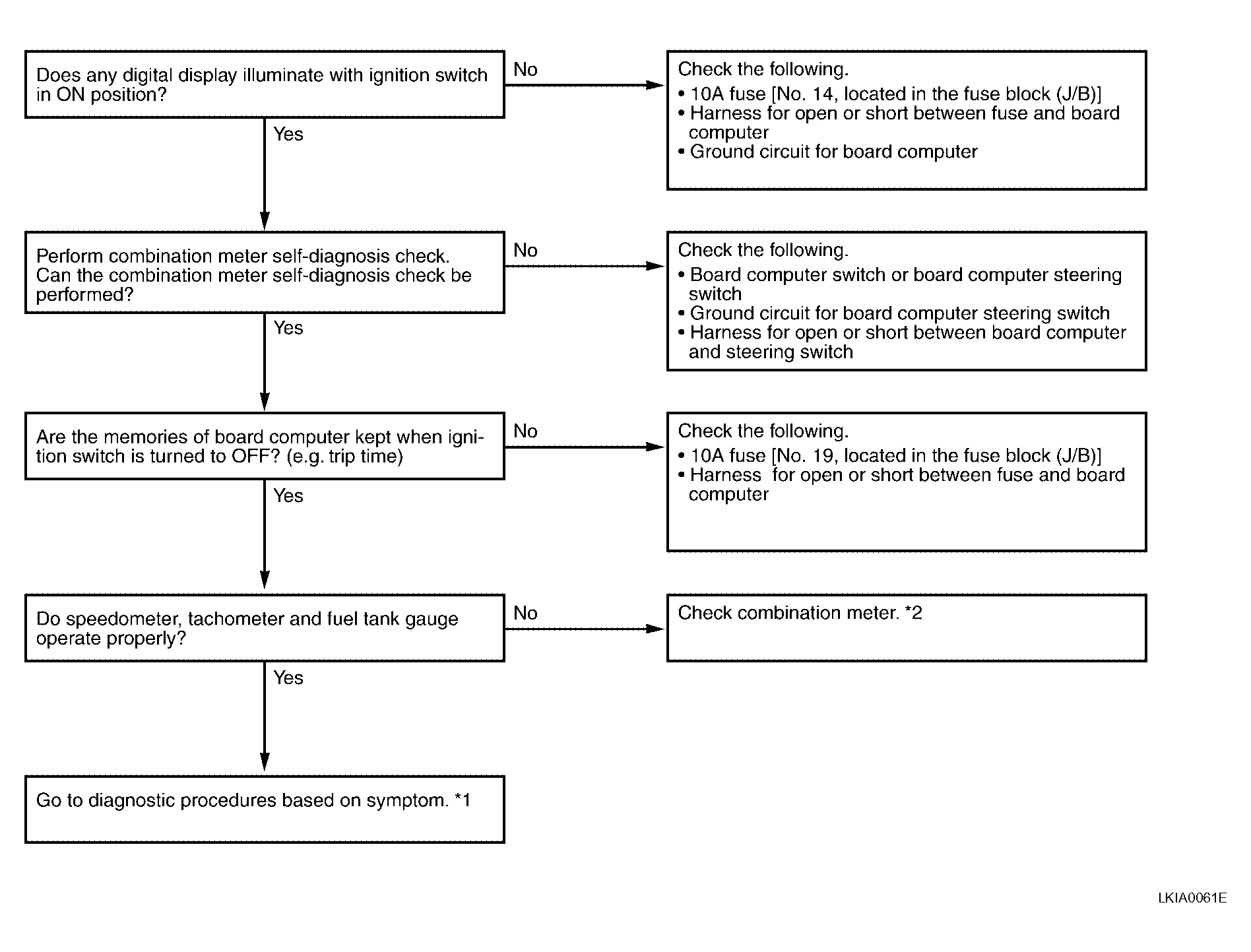

Fig 1: Preliminary Check Flow Chart

G04171183

Courtesy of NISSAN MOTOR CO., U.S.A.
