Rear Body: Measurement

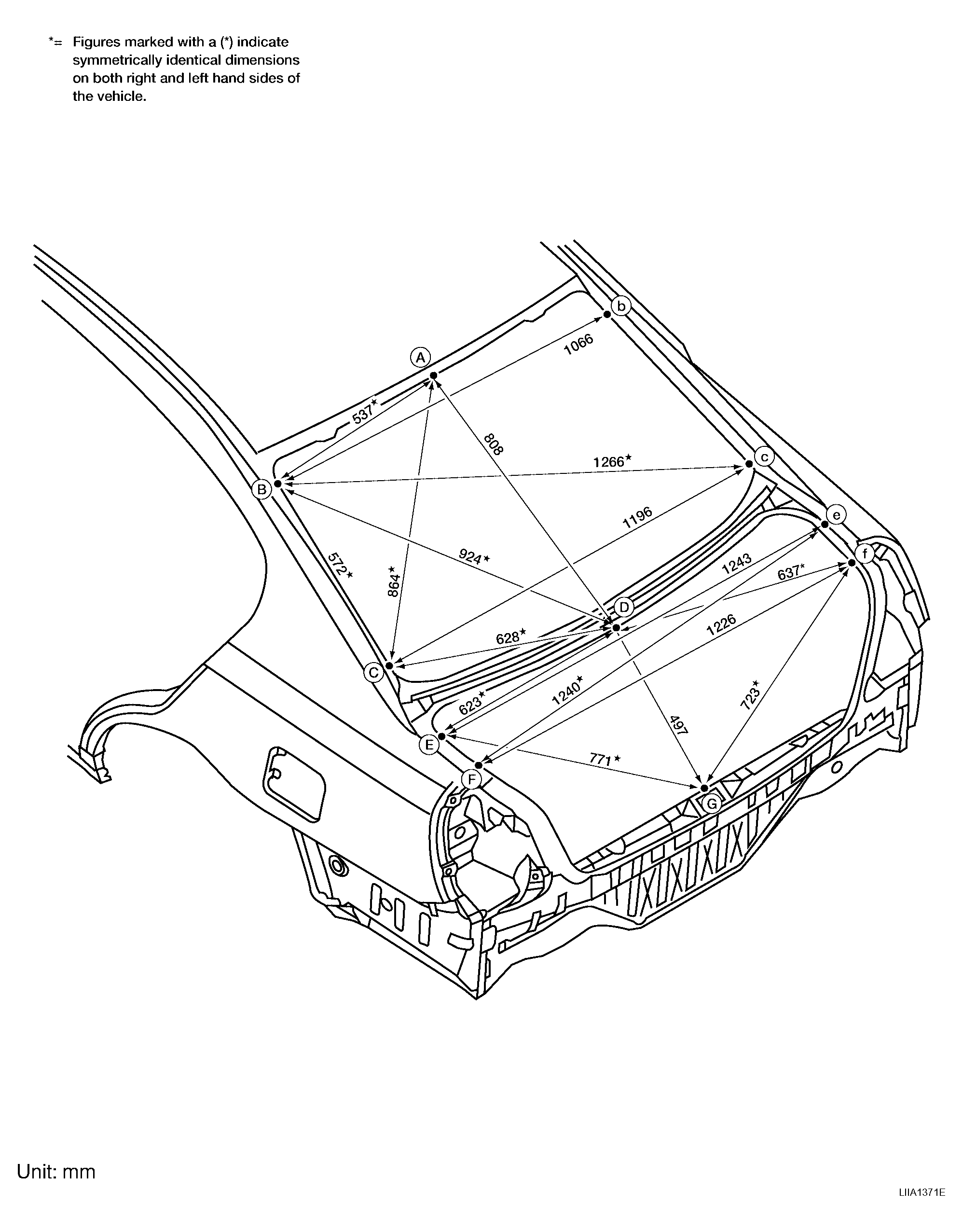

Fig 1: Measurement Of Rear Body

G04170240

Courtesy of NISSAN MOTOR CO., U.S.A.
