Mil And Data Link Connector: Wiring Diagram

For wiring diagram abbreviations, see WIRING DIAGRAM ABBREVIATIONS IDENTIFICATION TABLE .

For PG-POWER, refer to SYSTEM WIRING DIAGRAMS .

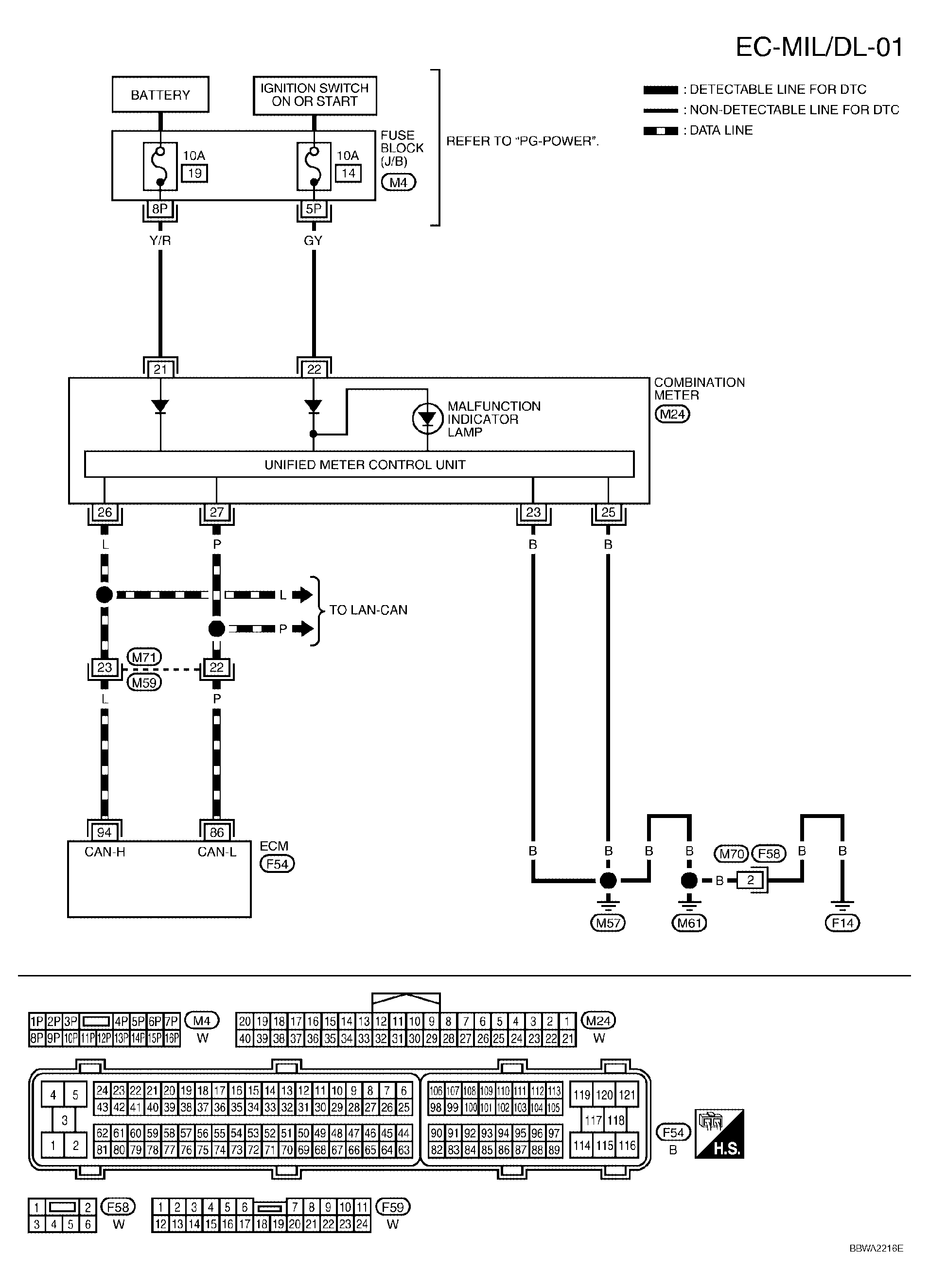

Fig 1: EC-MIL/DL-01 - Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

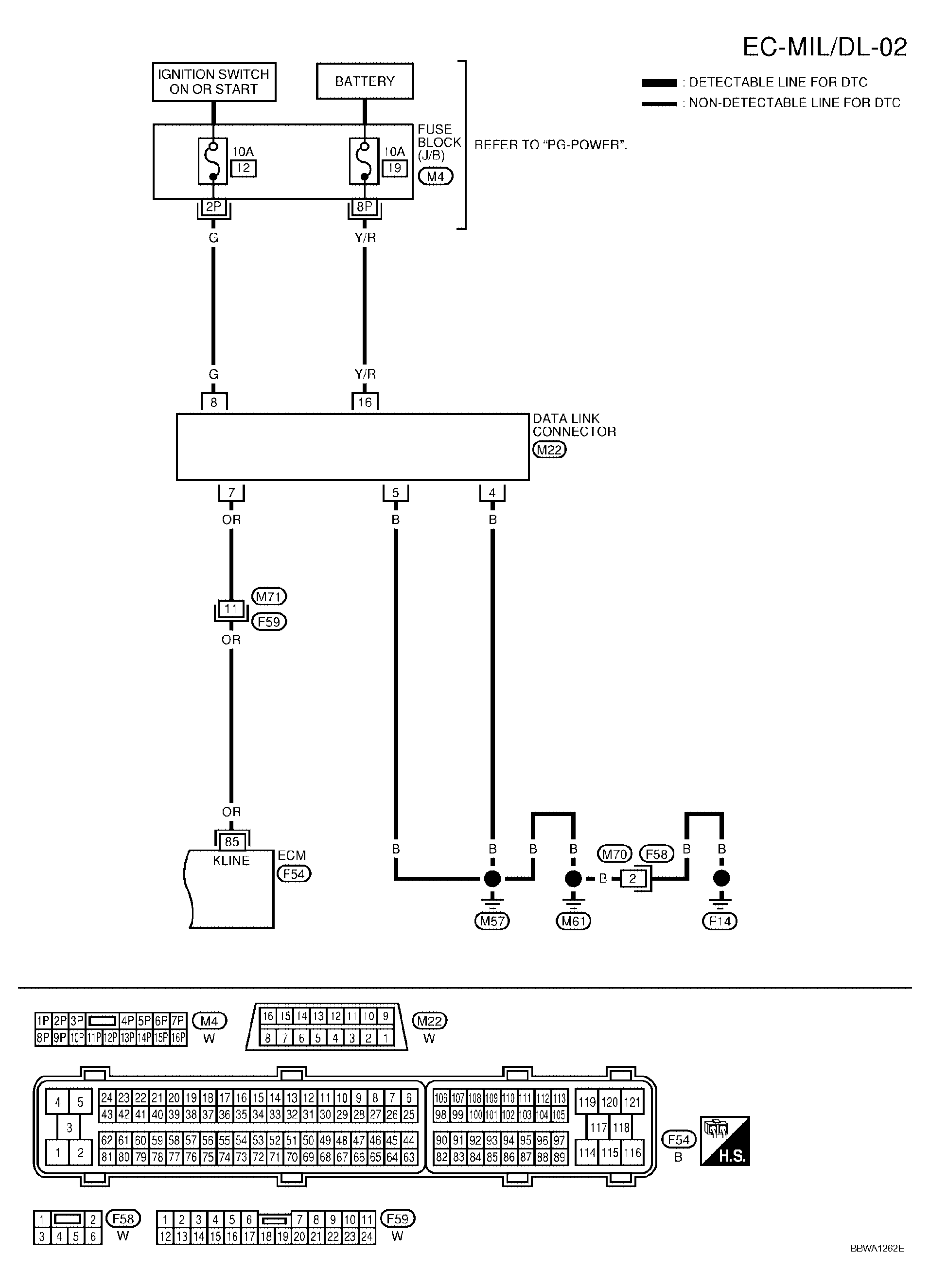

Fig 2: EC-MIL/DL-02 - Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
