Engine Control Component Parts Location (A/T Models)

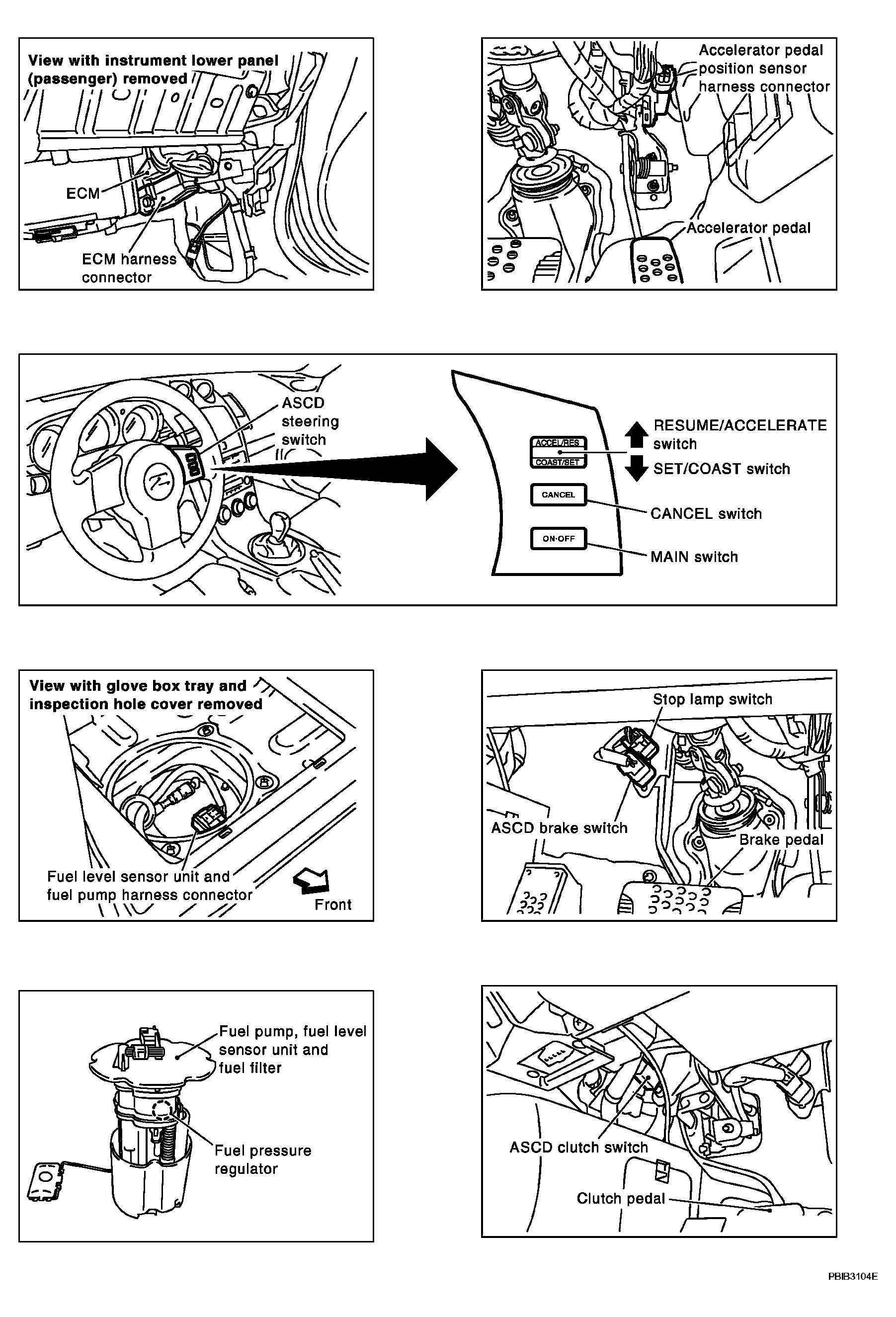

Fig 1: Identifying Engine Control Component Location (A/T Models) (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

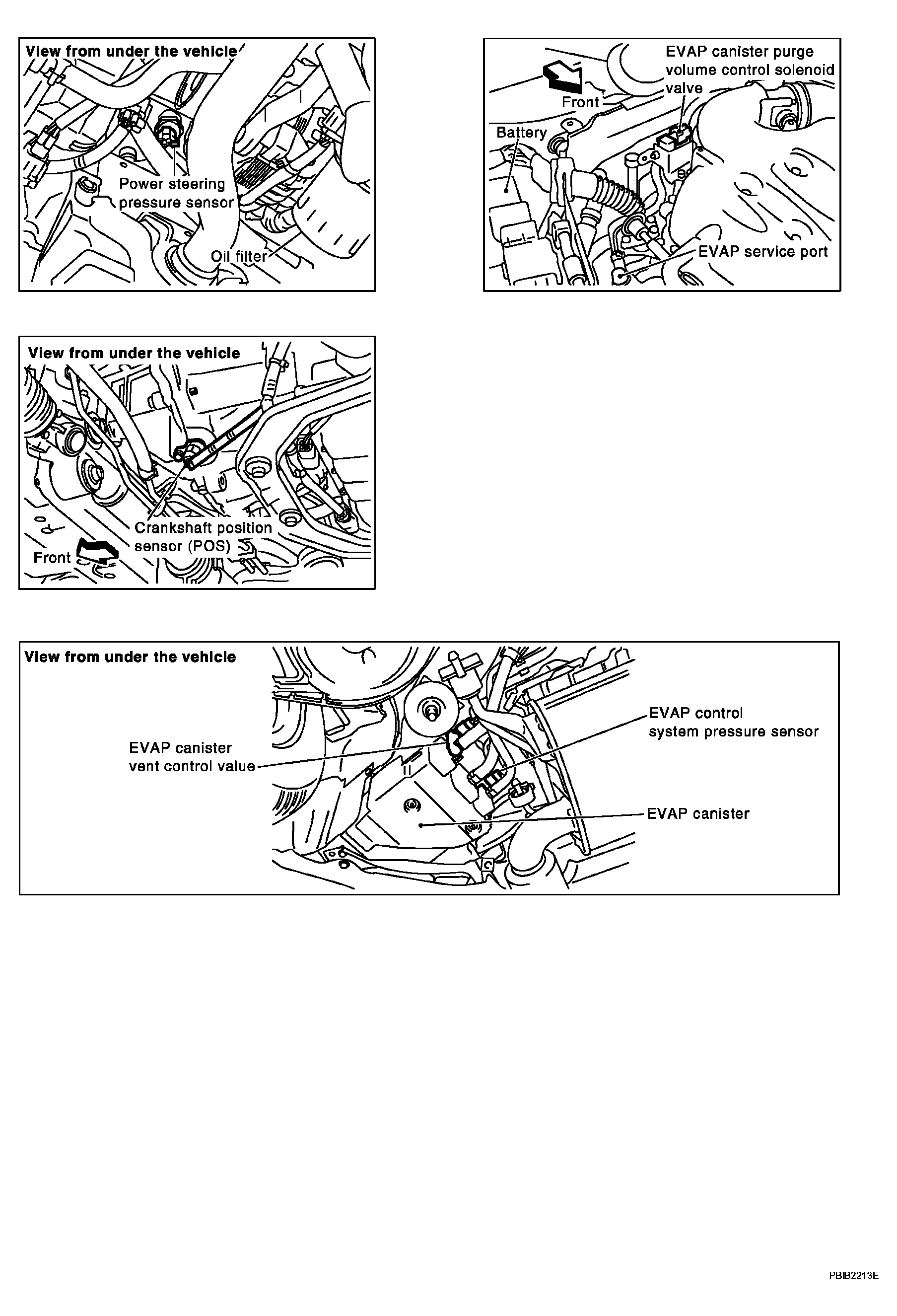

Fig 2: Identifying Engine Control Component Location (A/T Models) (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

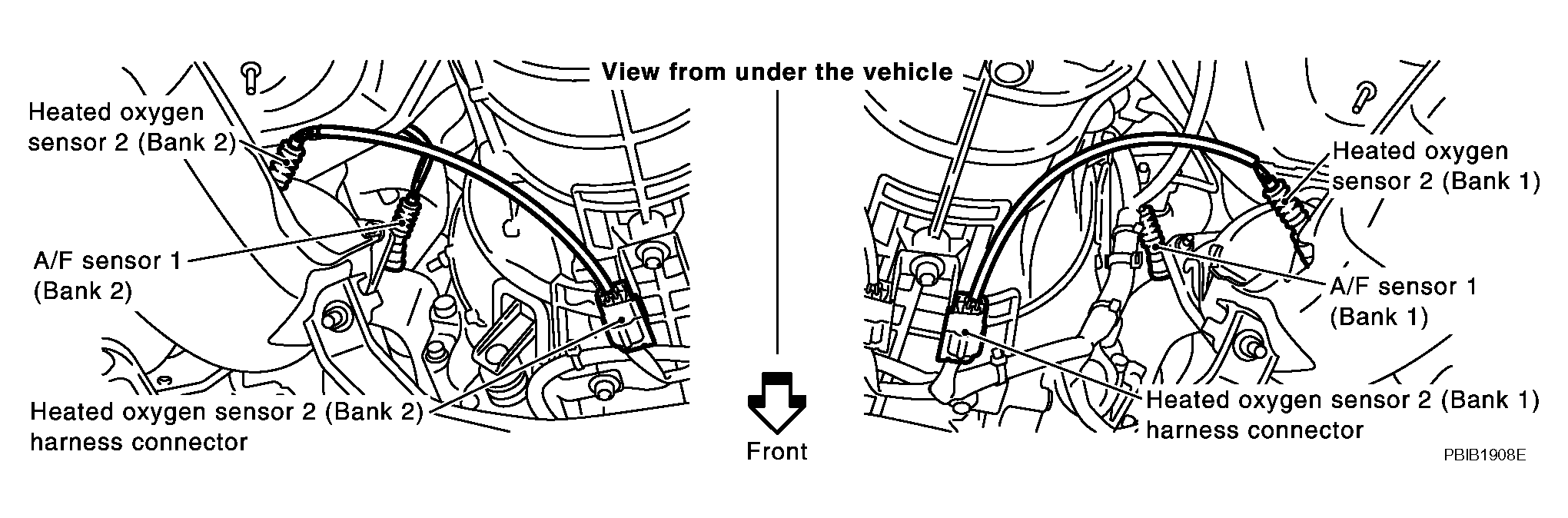

Fig 3: Identifying Engine Control Component Location (A/T Models) (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

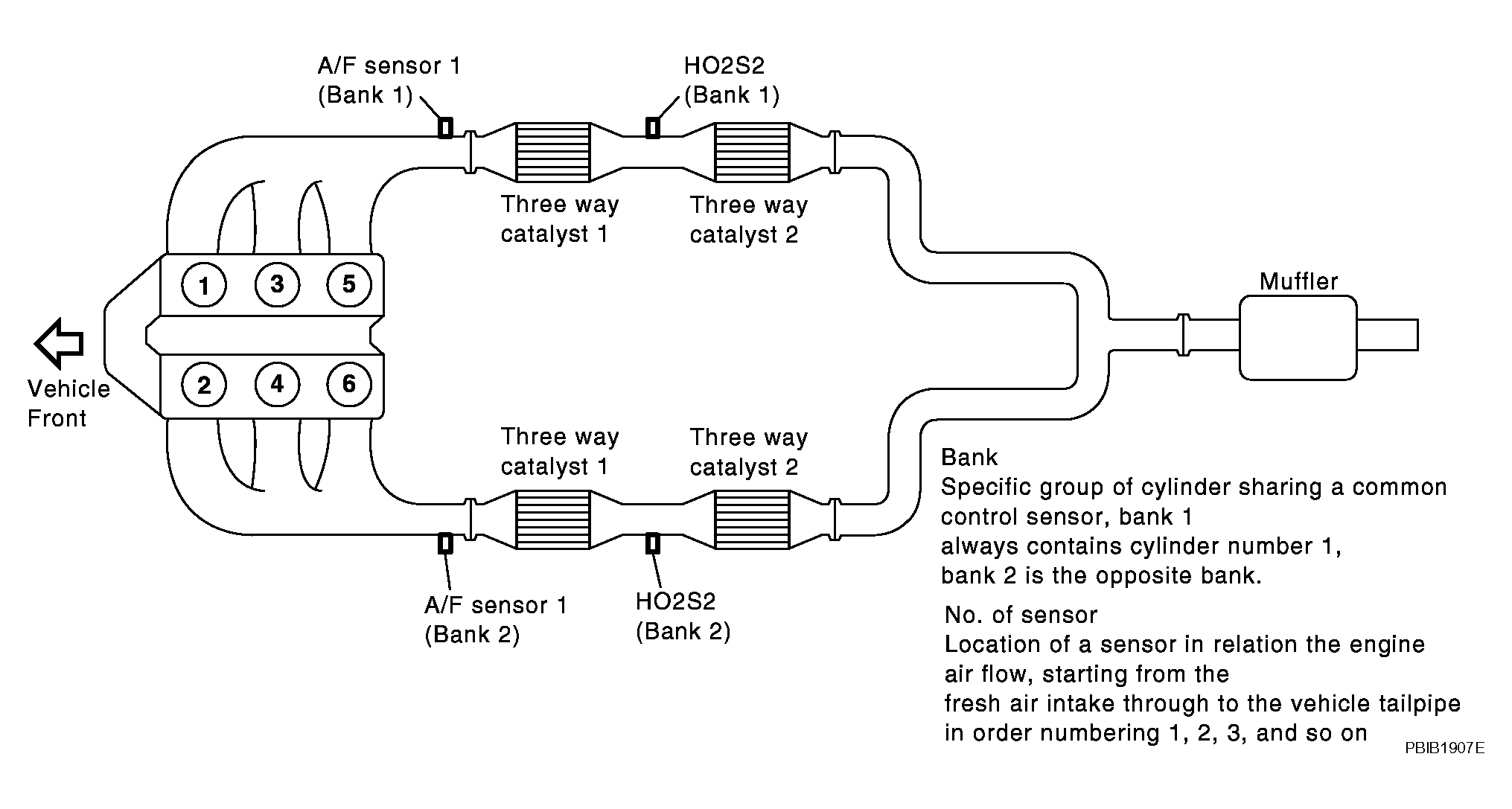

Fig 4: Identifying Engine Control Component Location (A/T Models) (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

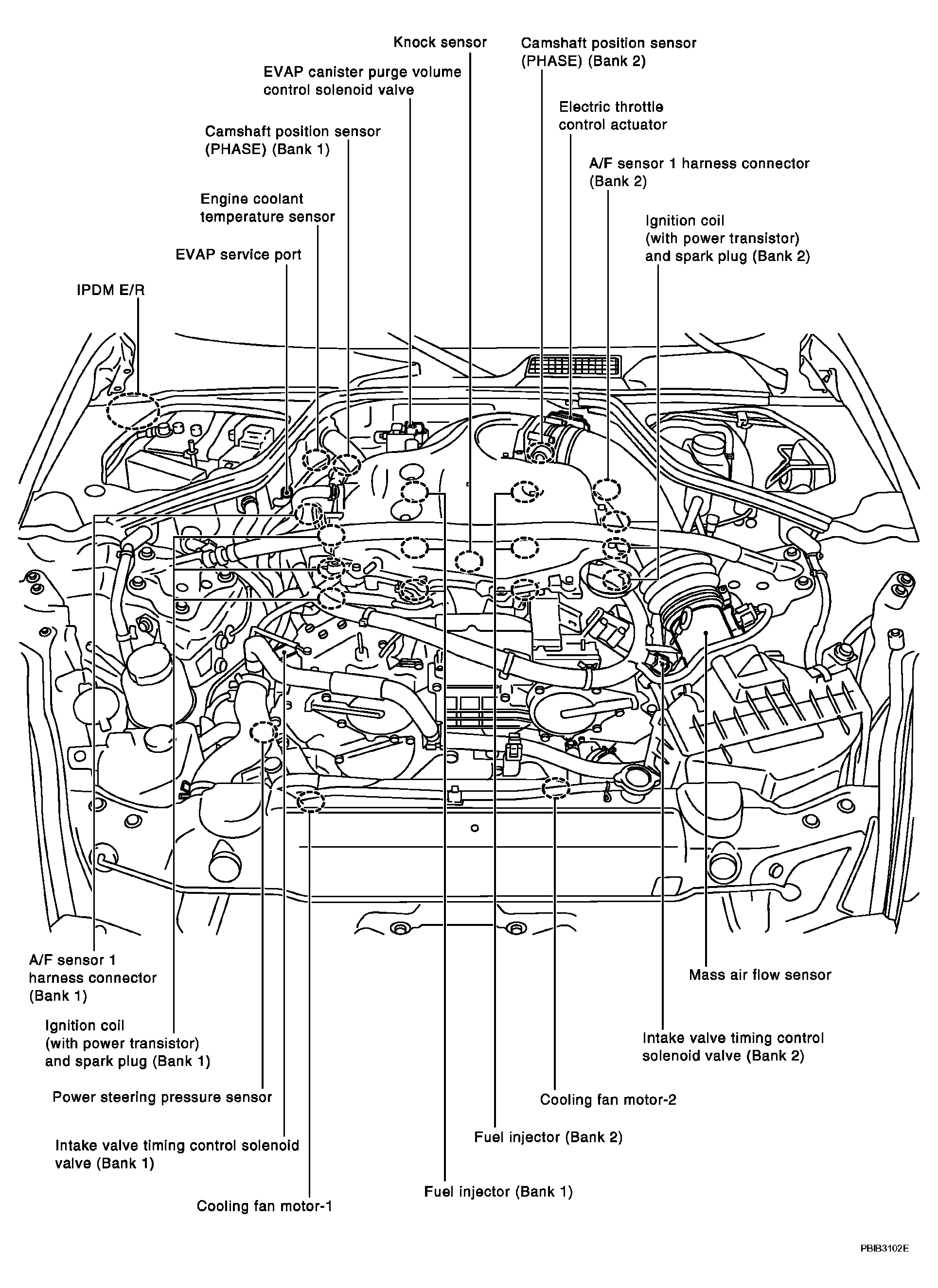

Fig 5: Identifying Engine Control Component Location (A/T Models) (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

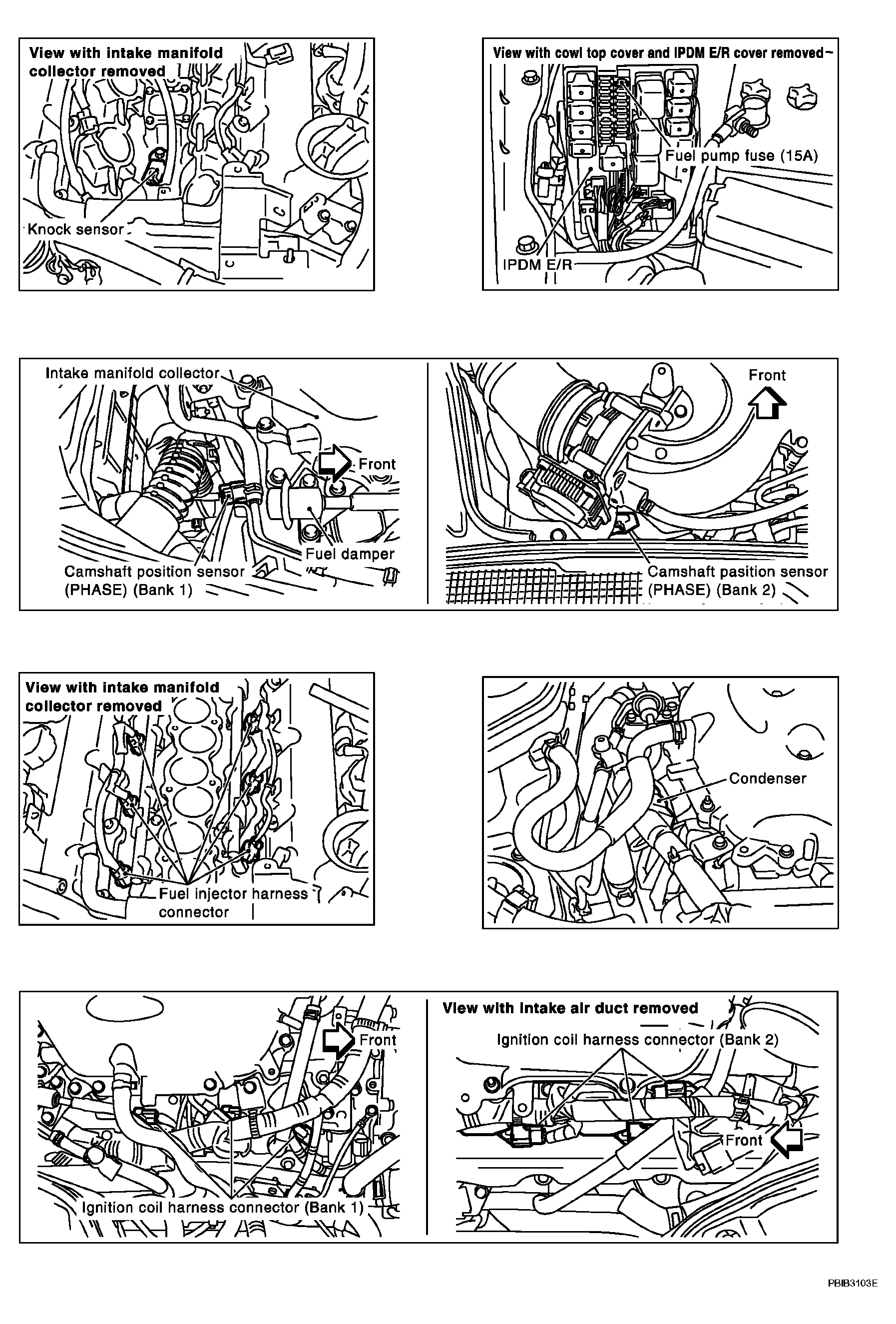

Fig 6: Identifying Engine Control Component Location (A/T Models) (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

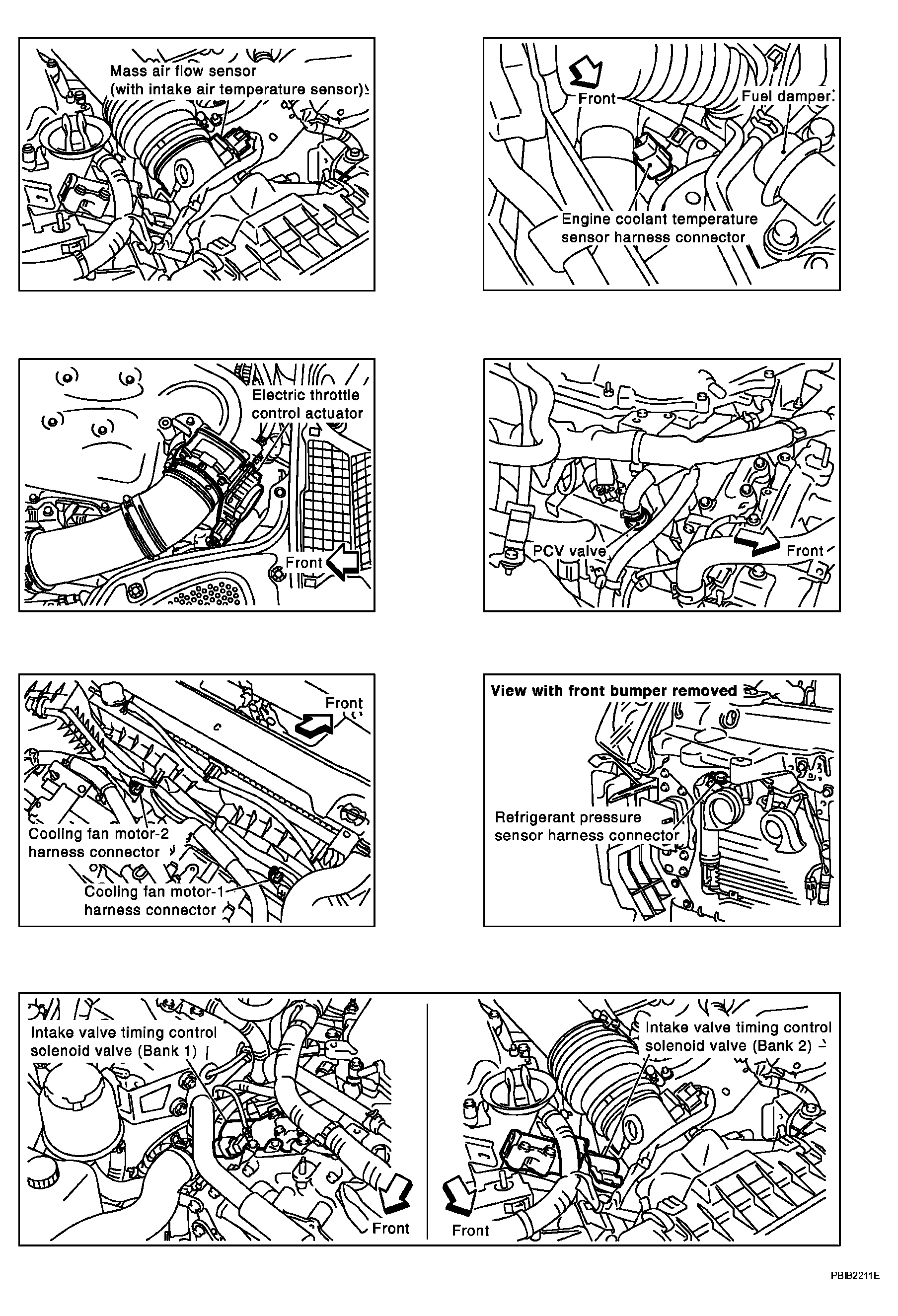

Fig 7: Identifying Engine Control Component Location (A/T Models) (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
