Engine Control System - Introduction
>>
Trouble Diagnosis
>>
Trouble Diagnosis Introduction
>>
Work Flow
>>
Overall Sequence
Overall Sequence

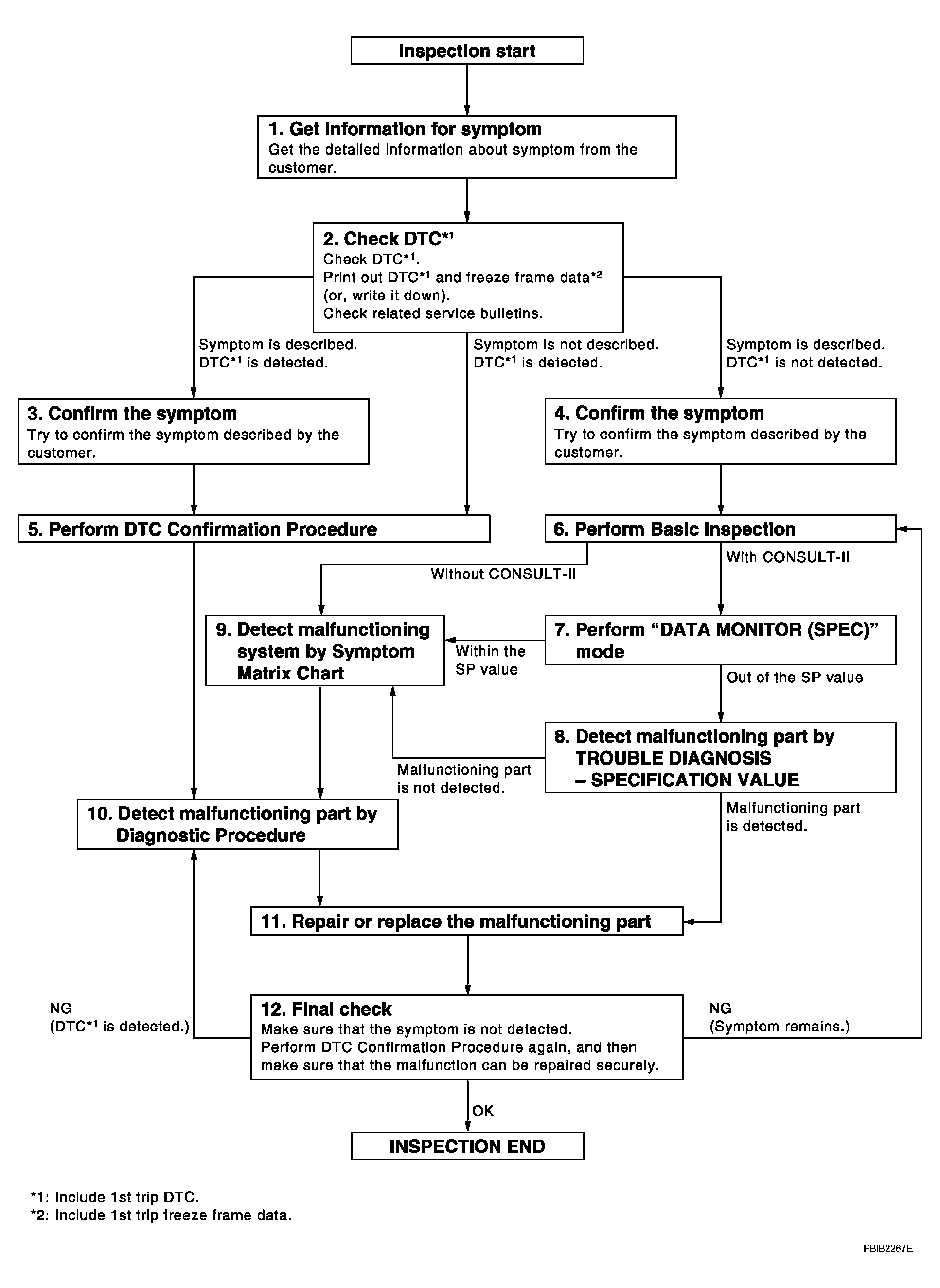

Fig 1: Inspection Work Flow Chart
Courtesy of NISSAN NORTH AMERICA, INC.
