Low & Reverse Brake
>>
Components
Low & Reverse Brake: Components

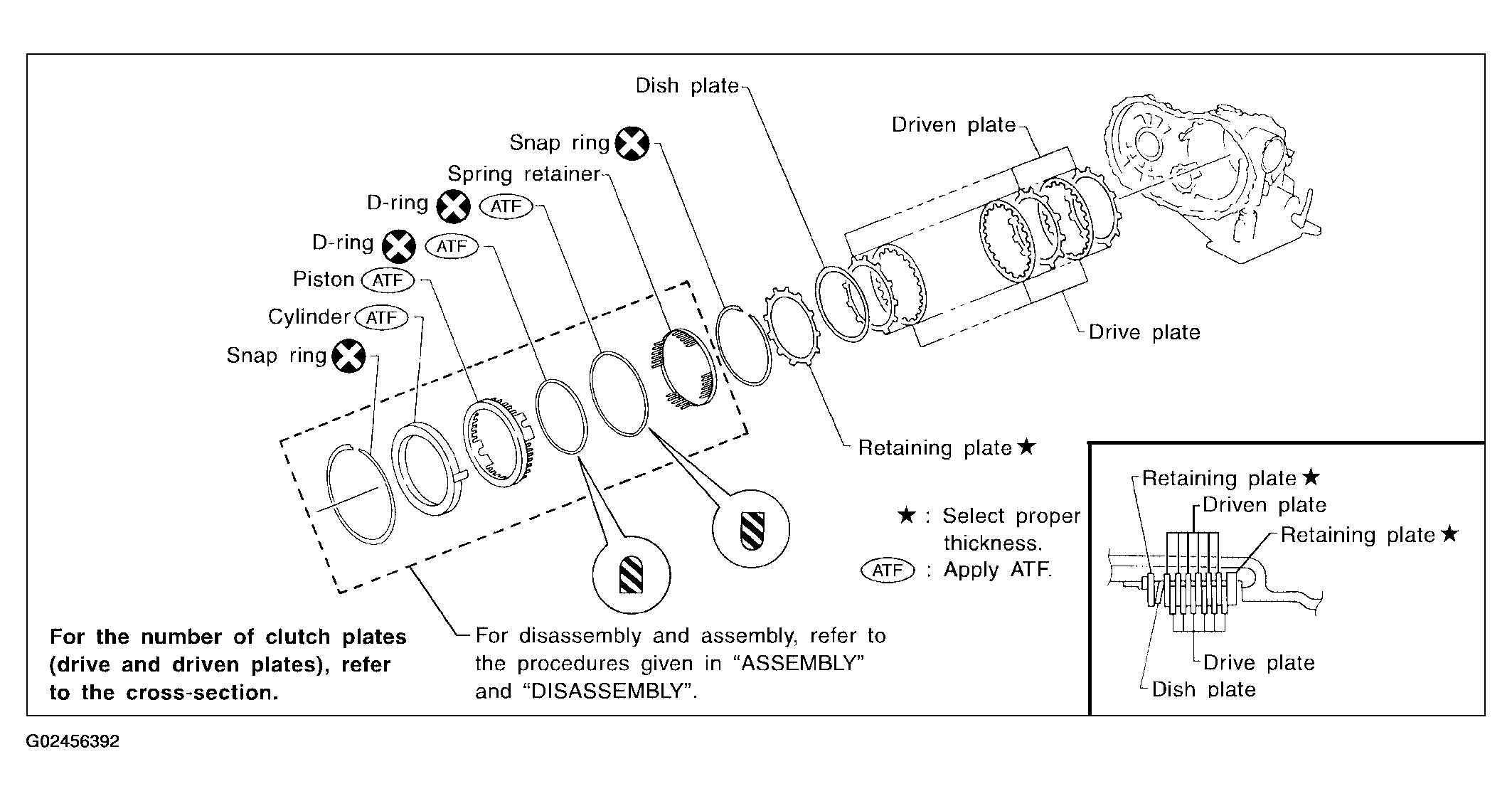

Fig 1: Exploded View Of Low & Reverse Brake
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
