High Clutch: Assembly

  1. Install D-rings on piston.
    • Apply ATF to both parts.

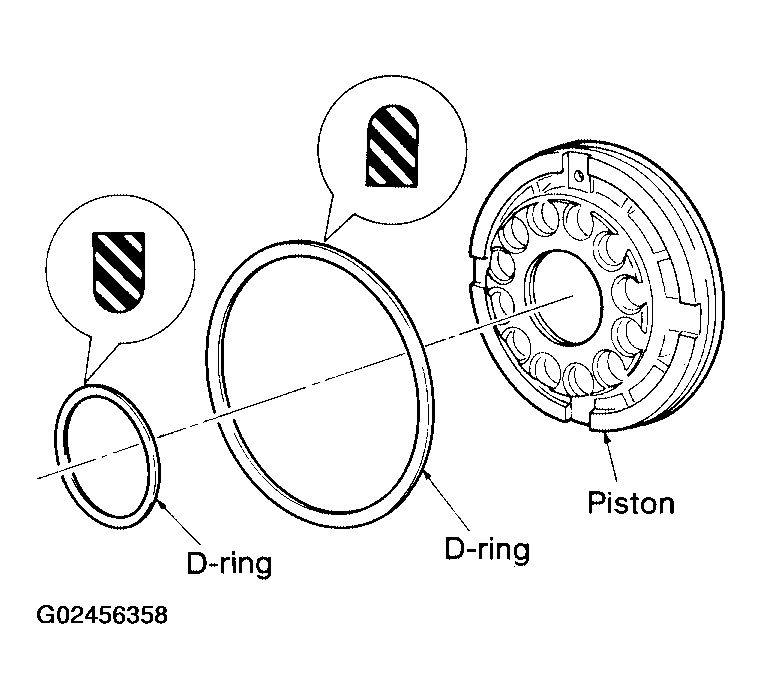

    Fig 1: Installing D-Rings On Piston
    G02456358Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install piston assembly by turning it slowly.
    • Apply ATF to inner surface of drum.

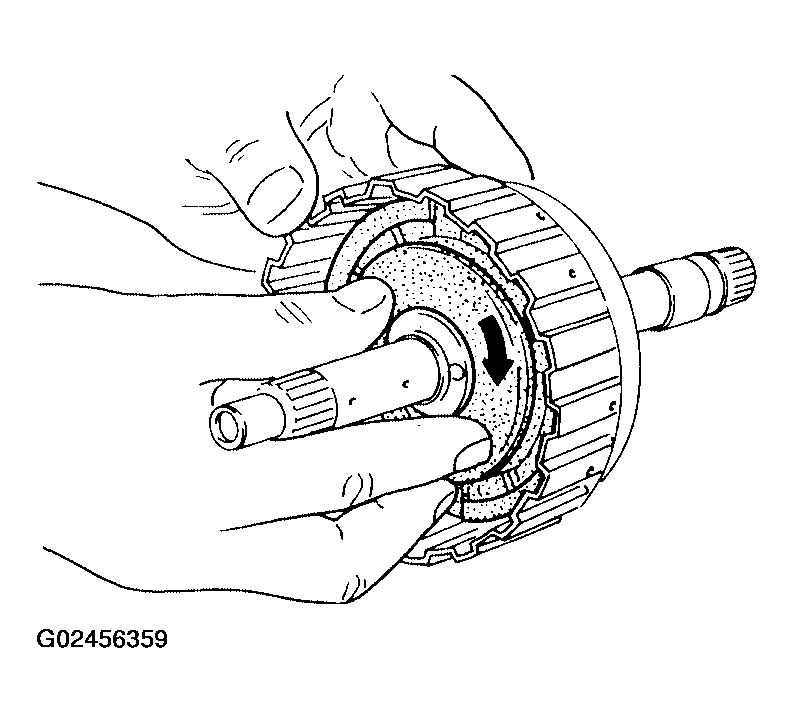

    Fig 2: Installing Piston Assembly By Hand Turning Slowly
    G02456359Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install return springs and spring retainer on piston.
    Fig 3: Installing Return Springs & Spring Retainer
    G02456360Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Set Tool on spring retainer and install snap ring while compressing return springs.
    • Set Tool directly over return springs.
      Fig 4: Installing Snap Ring Using Tool
      G02456361Courtesy of NISSAN MOTOR CO., U.S.A.
    • Do not align snap ring gap with spring retainer stopper.

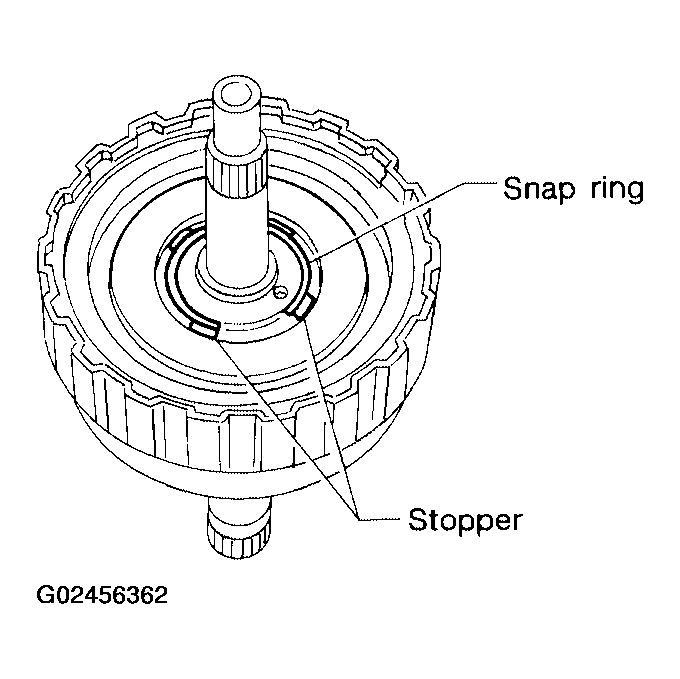

    Fig 5: Aligning Snap Ring Gap With Spring Retainer Stopper
    G02456362Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install drive plates, driven plates and retaining plate.
    • Take care with the order and direction of plates.
    Fig 6: Installing Snap Ring
    G02456363Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install snap ring.
  7. Measure clearance between retaining plate and snap ring. If not within allowable limit, select proper retaining plate.
    1. Specified clearance
    2. Standard: 1.8 - 2.2 mm (0.071 - 0.087 in)
    3. Allowable limit: 2.8 mm (0.110 in)
    4. Retaining plate: Refer to  HIGH CLUTCH  .

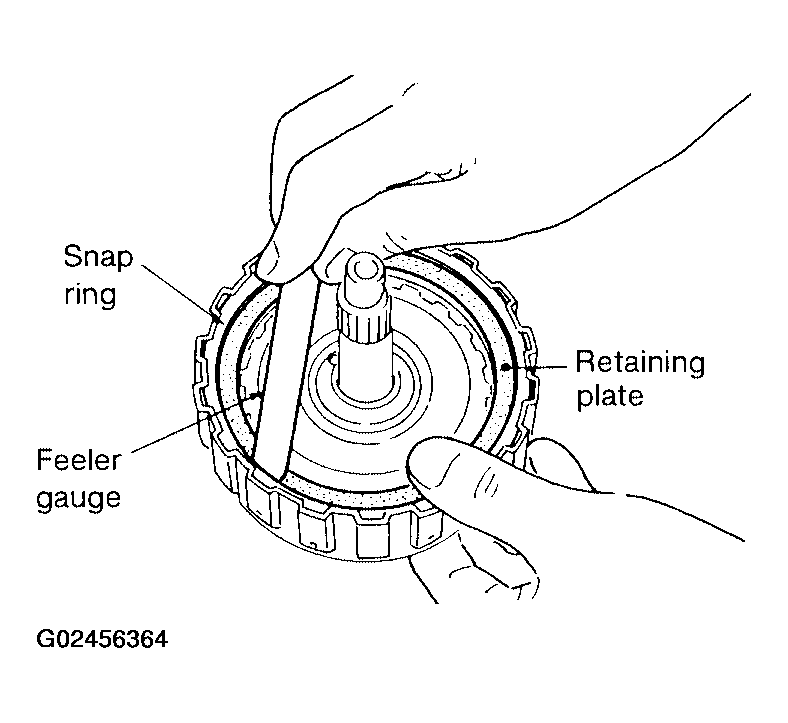

    Fig 7: Measuring Clearance Between Retaining Plate & Snap Ring
    G02456364Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Check operation of high clutch.

    Refer to DISASSEMBLY .

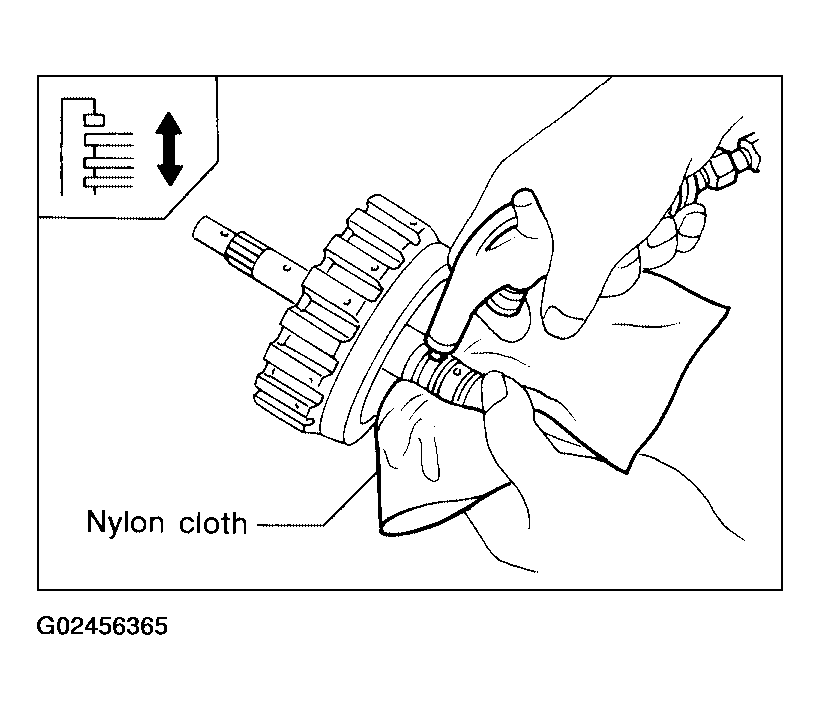

    Fig 8: Applying Compressed Air To Oil Hole Of Input Shaft With Nylon Cloth
    G02456365Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install seal rings to input shaft.
    • Apply petroleum jelly to seal rings.
    • Always replace when removed.
      Fig 9: Installing Seal Rings To Input Shaft
      G02456366Courtesy of NISSAN MOTOR CO., U.S.A.
    • Roll paper around seal rings to prevent seal rings from spreading.
    Fig 10: Identifying Seal Rings
    G02456367Courtesy of NISSAN MOTOR CO., U.S.A.
