R Position
R Position

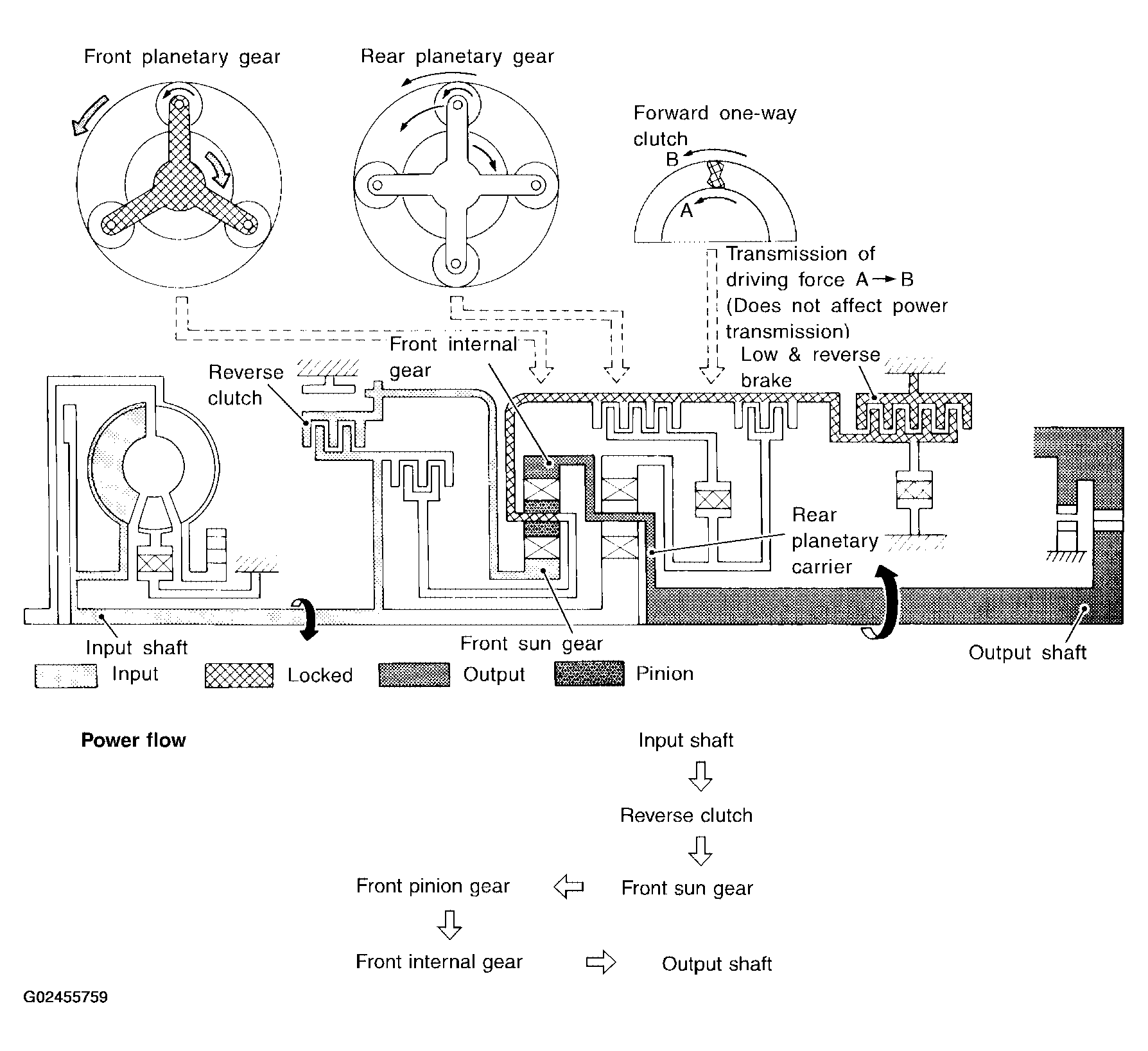

Fig 1: Power Transmission Position R
Courtesy of NISSAN MOTOR CO., U.S.A.

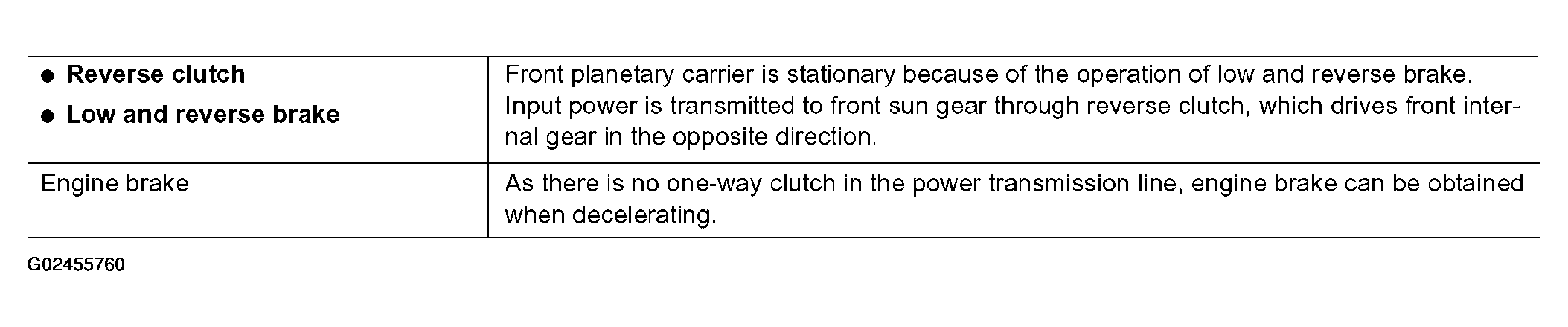

Fig 2: Clutch Engagement Reference Chart (6 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
