Shift Mechanism: Construction

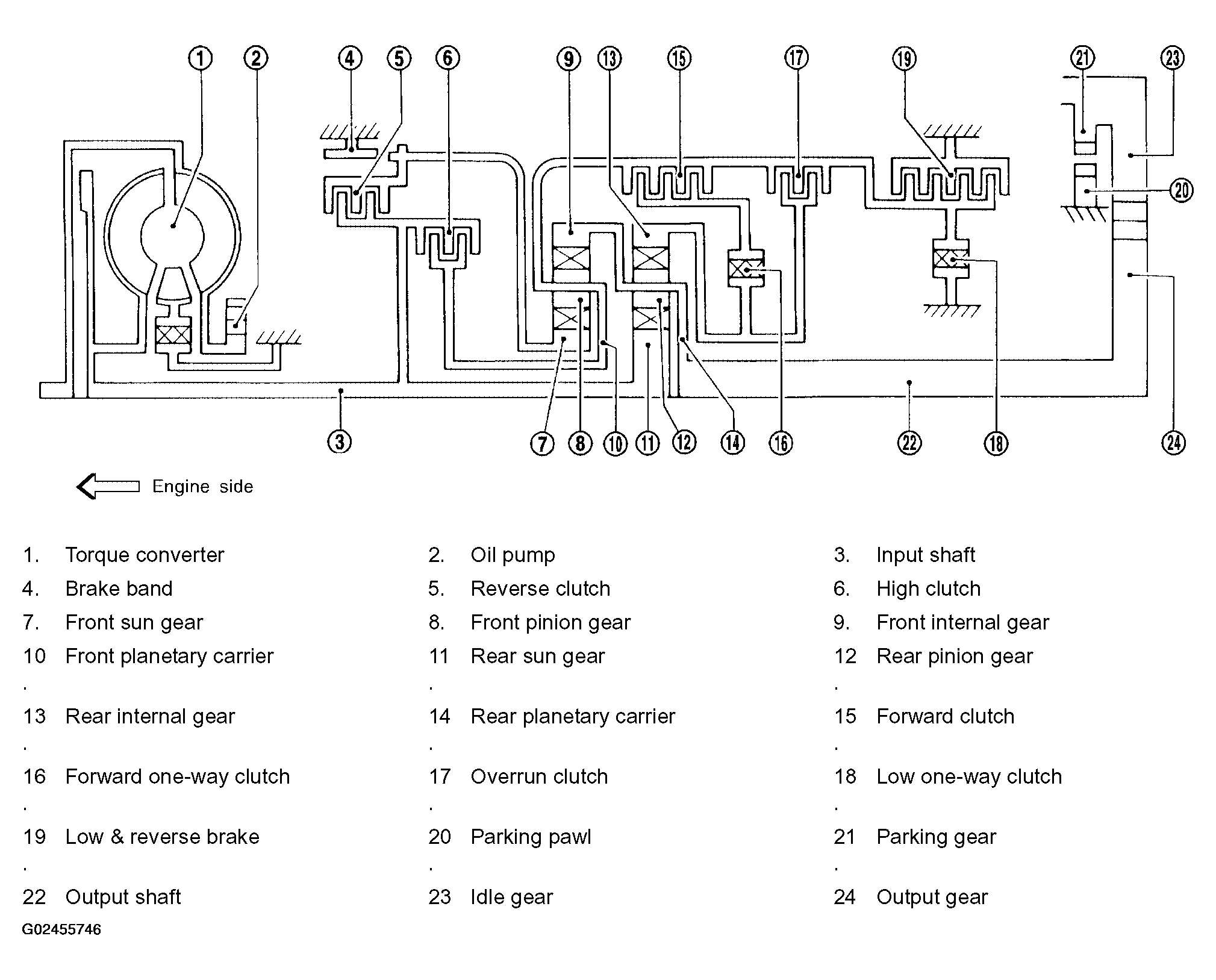

Fig 1: Shift Mechanism Construction

G02455746

Courtesy of NISSAN MOTOR CO., U.S.A.
