Nissan-Datsun
>>
2005
>>
Sentra SE-R
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission (Re4F04B)
>>
Overall System
>>
Circuit Diagram
Circuit Diagram

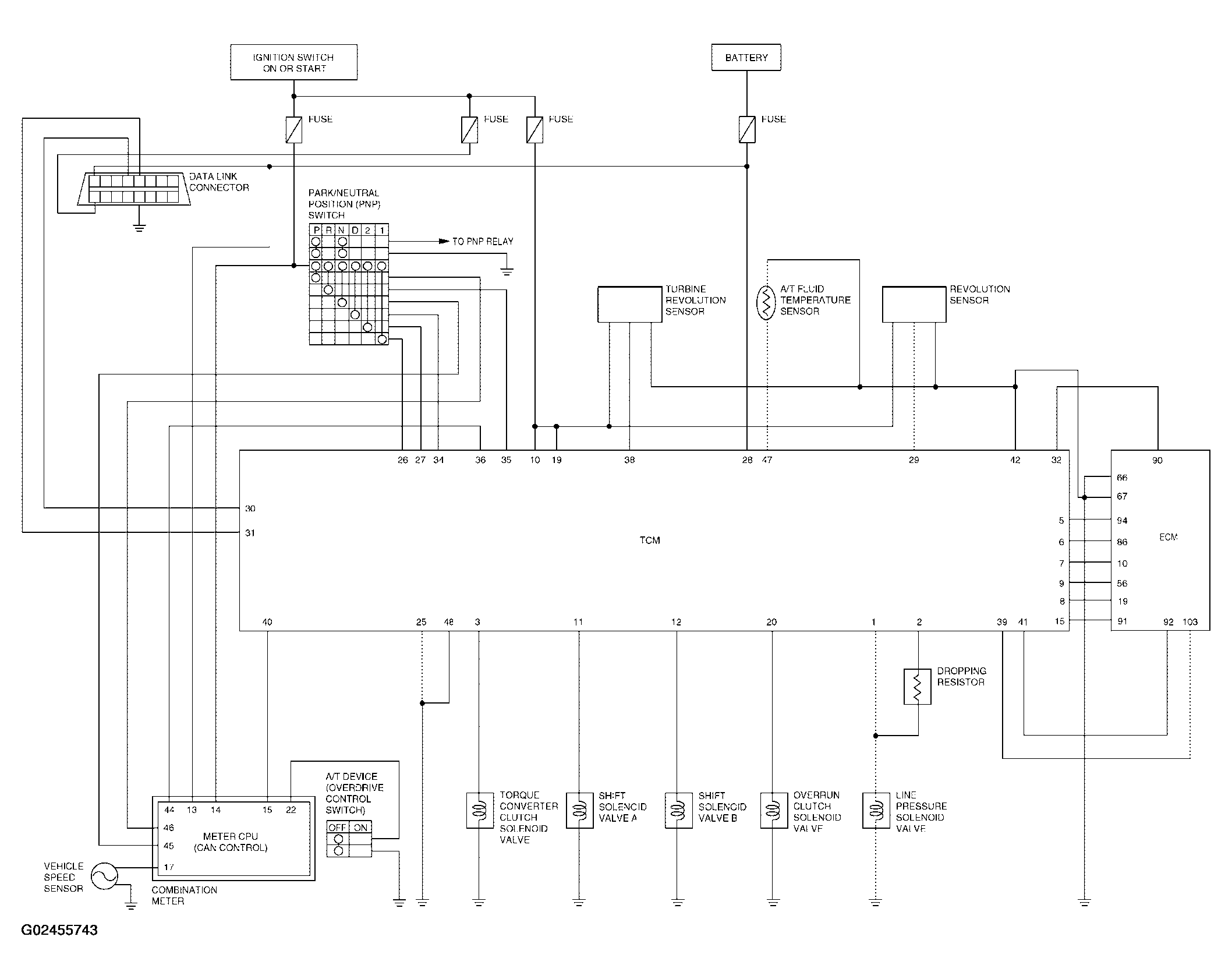

Fig 1: A/T Electrical Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
