Front Suspension
>>
Coil Spring And Shock Absorber
>>
Removal and Installation
Removal and Installation
Remove shock absorber fixing bolt and nut (to hoodledge).

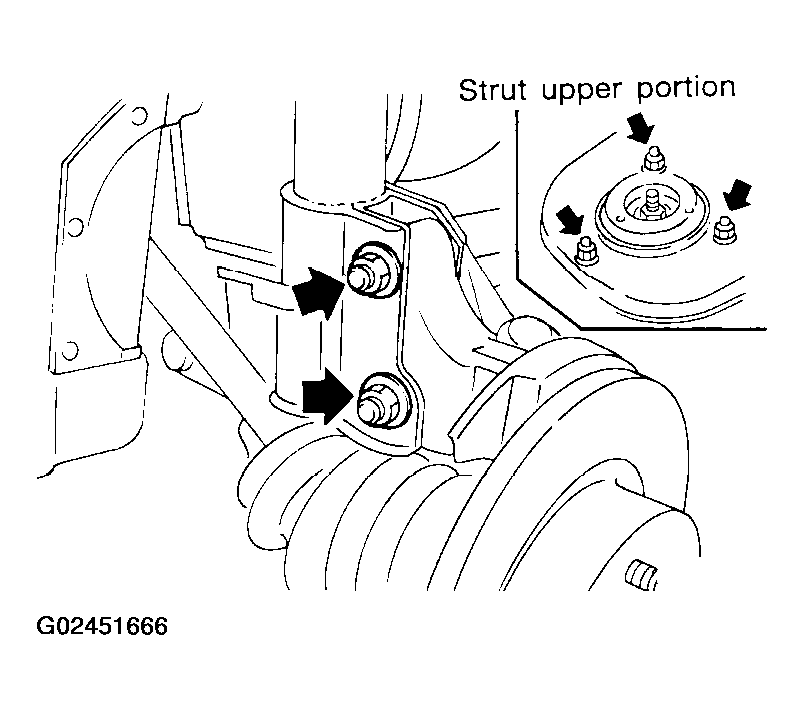

Fig 1: Locating Shock Absorber Fixing Bolts & Nuts
Courtesy of NISSAN MOTOR CO., U.S.A.
Do not remove piston rod lock nut on vehicle.
When installing strut spacer, it must be positioned as shown in
Fig 2
.
Fig 2: Installing Strut Spacer
Courtesy of NISSAN MOTOR CO., U.S.A.
