Service Data And Specifications (SDS)
>>
Steering Gear and Linkage
Steering Gear and Linkage

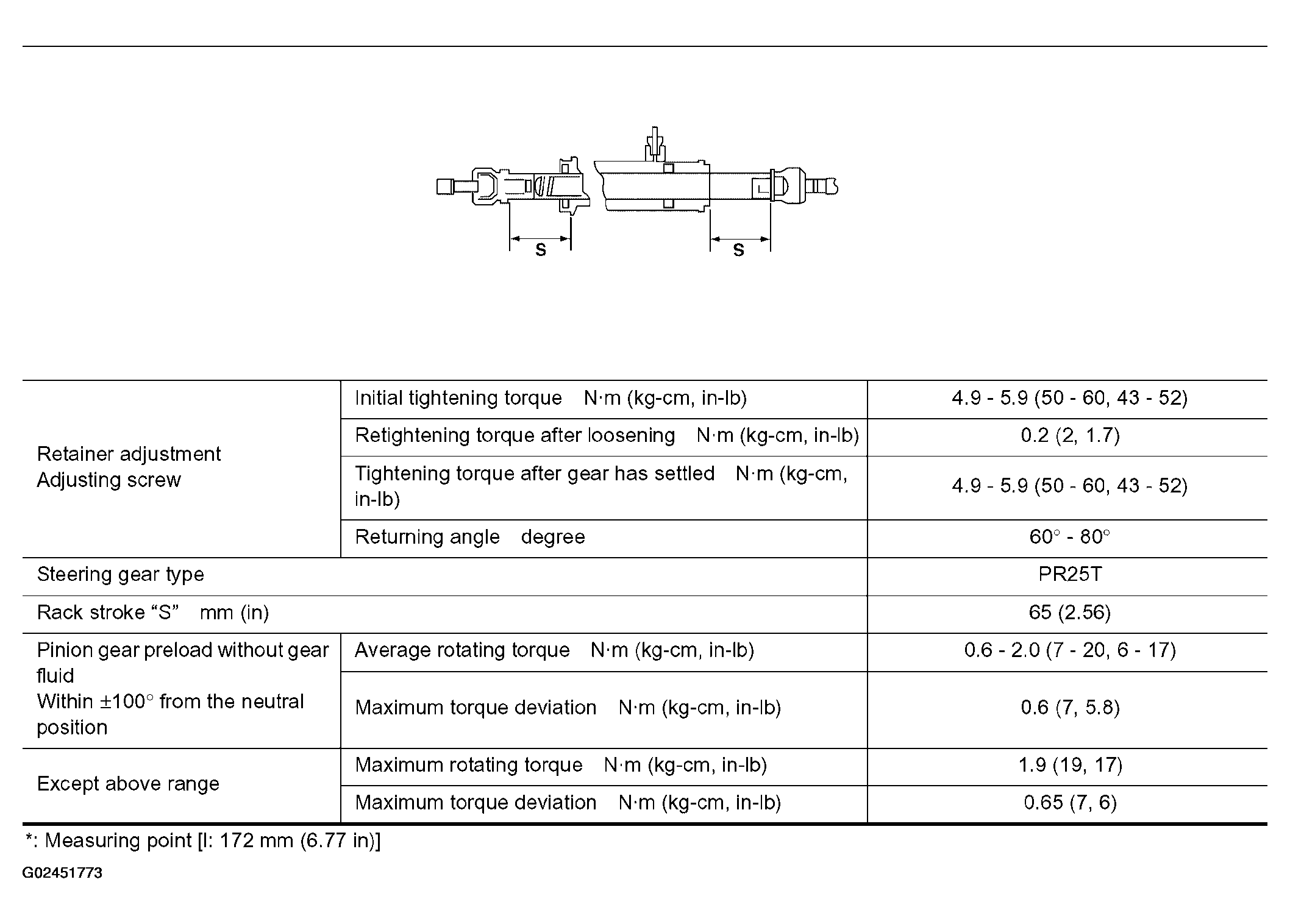

Fig 1: Steering Gear & Linkage Specification Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

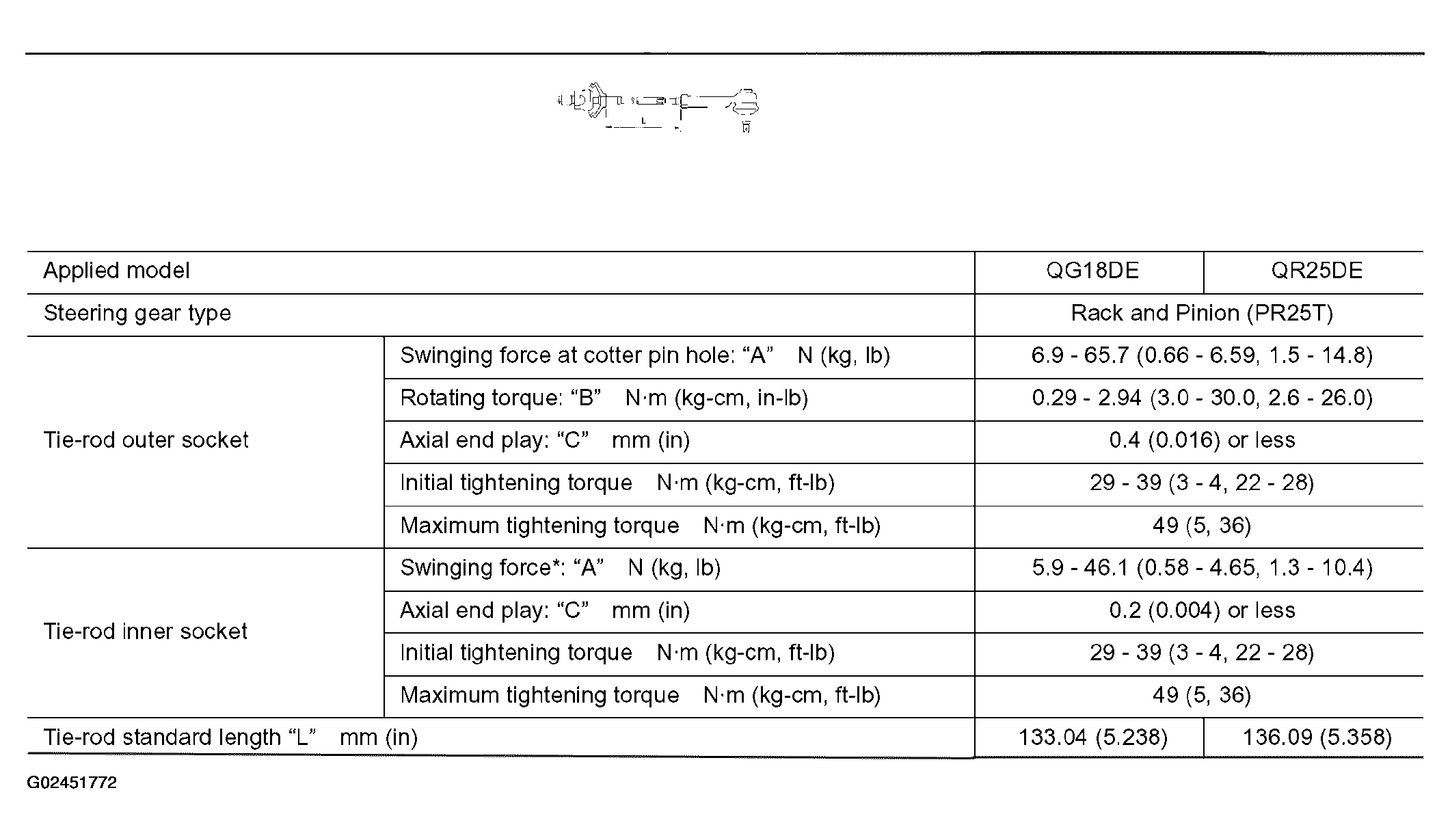

Fig 2: Steering Gear & Linkage Specification Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
