Drive Cycle Pattern No. 16

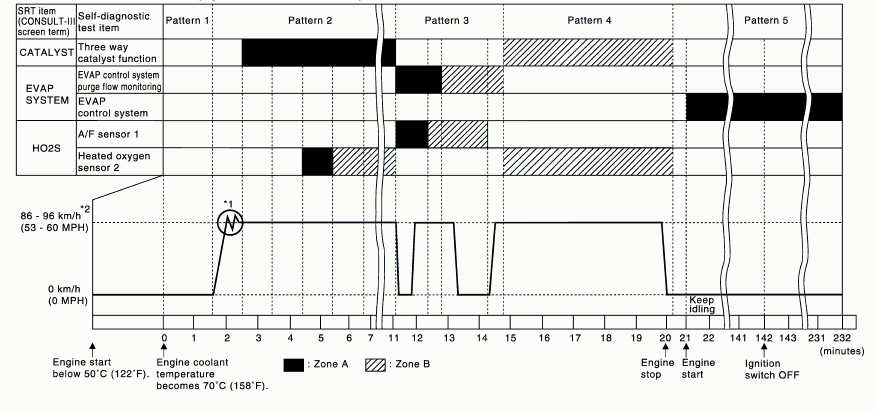

Fig 1: Drive Cycle Pattern No. 16

G00496835

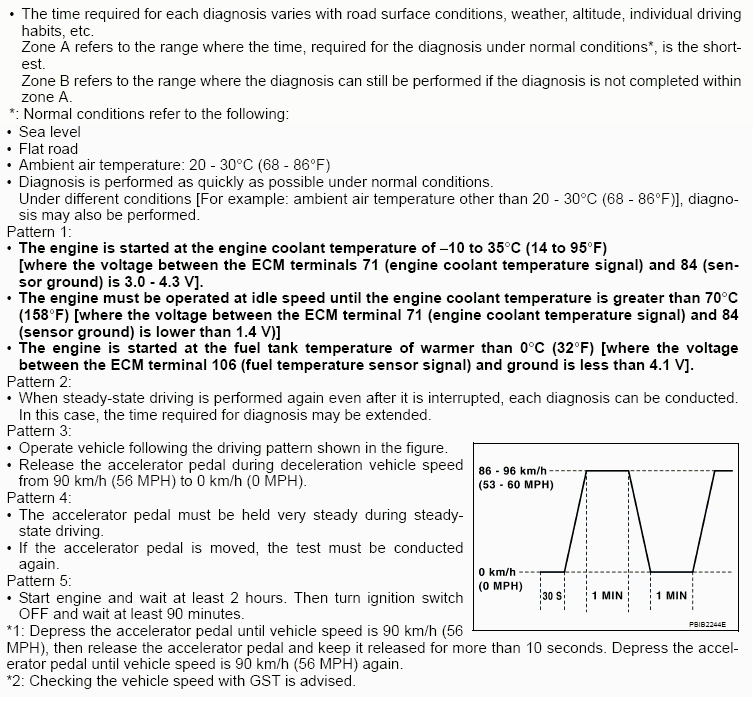

Fig 2: Drive Cycle Legend No. 16

G00496836
