Section 4 (Automatic Transmission (Re4F03B)): Overhaul: Disassembly

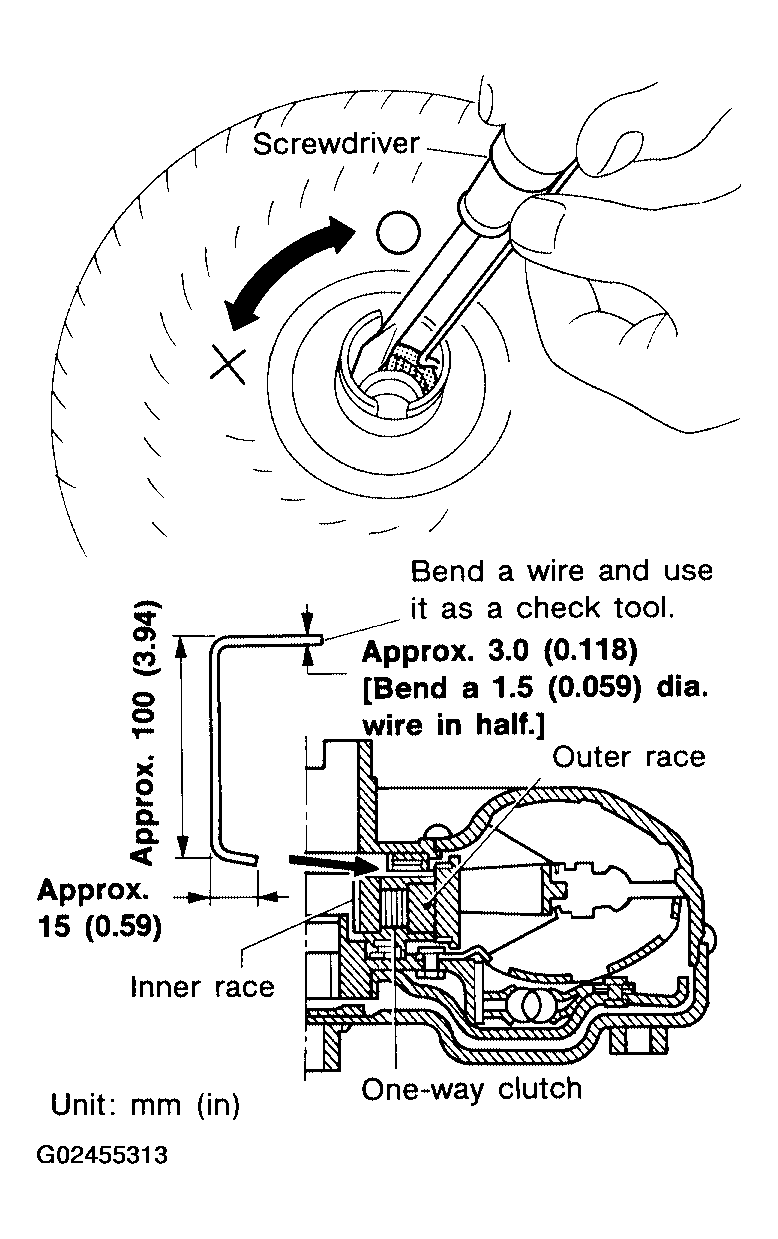

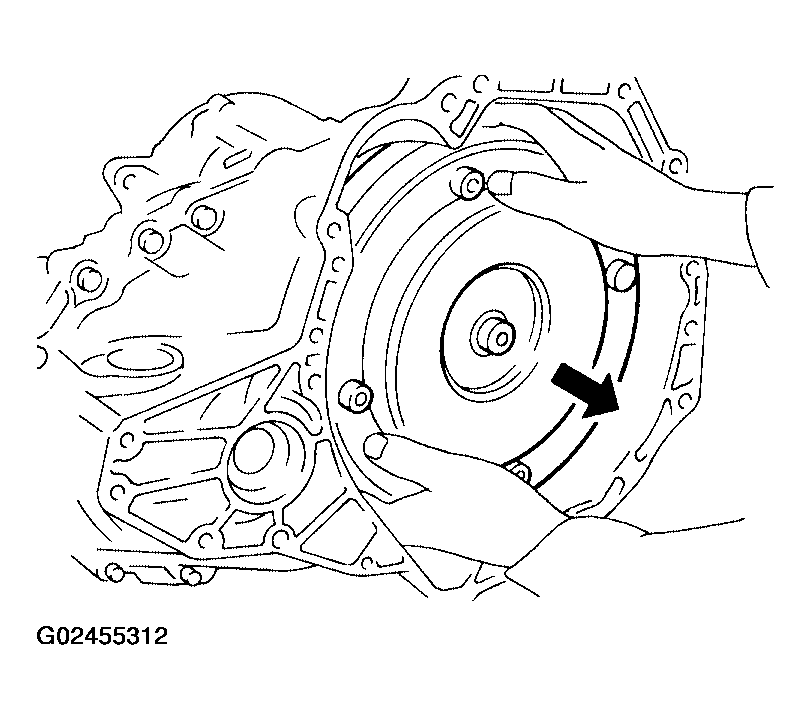

1. Insert check tool into the groove of bearing support built into one-way clutch outer race.
2. While fixing bearing support with check tool, rotate one-way clutch spline using flat-bladed screwdriver.
3. Check to make sure the inner race rotates clockwise only. If not, replace torque converter assembly.

Fig 3: Checking Torque Converter One-Way Clutch

Courtesy of NISSAN MOTOR CO., U.S.A.

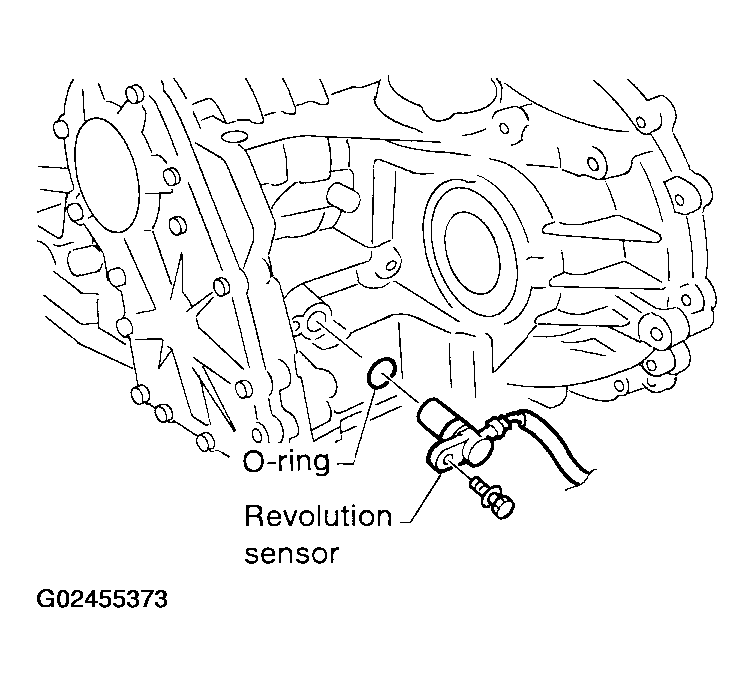

• Always replace oil pan bolts as they are self-sealing bolts  .

• If frictional material is detected, replace radiator after repair of A/T. Refer to  REMOVAL AND INSTALLATION  .

Fig 6: Removing Oil Pan & Oil Pan Gasket

Courtesy of NISSAN MOTOR CO., U.S.A.

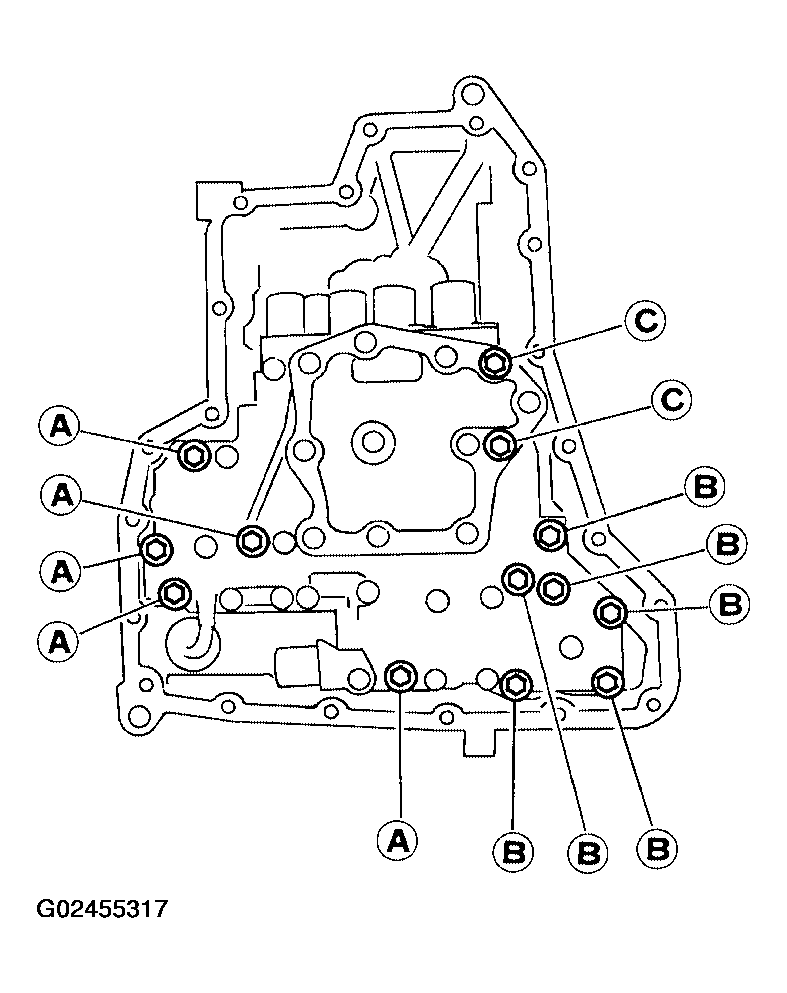

1. Remove control valve assembly mounting bolts A, B and C.
   Fig 7: Removing Control Valve Assembly Mounting Bolts

   Courtesy of NISSAN MOTOR CO., U.S.A.

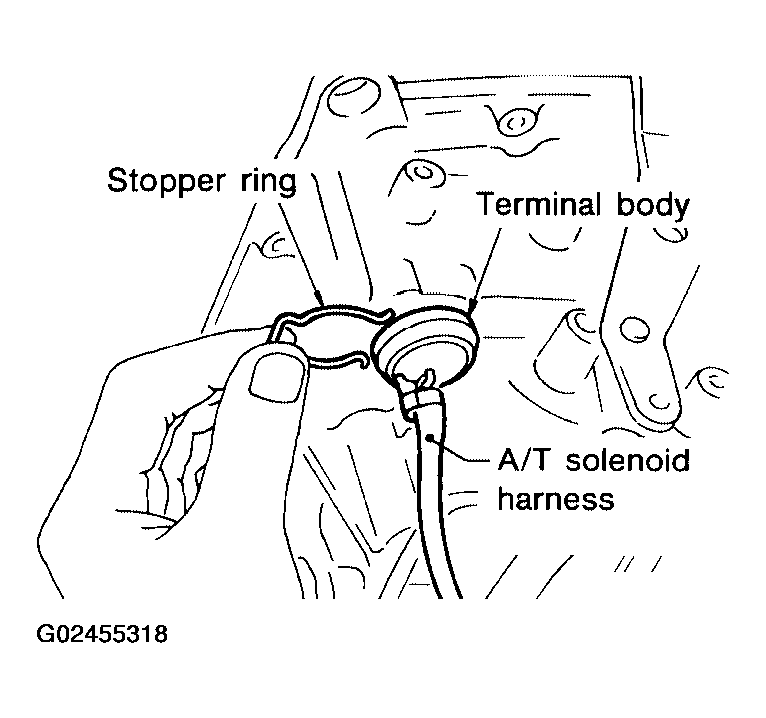

2. Remove stopper ring from terminal body.
3. Push terminal body into transmission case and draw out solenoid harness.

Fig 8: Removing Stopper Ring From Terminal Body

Courtesy of NISSAN MOTOR CO., U.S.A.

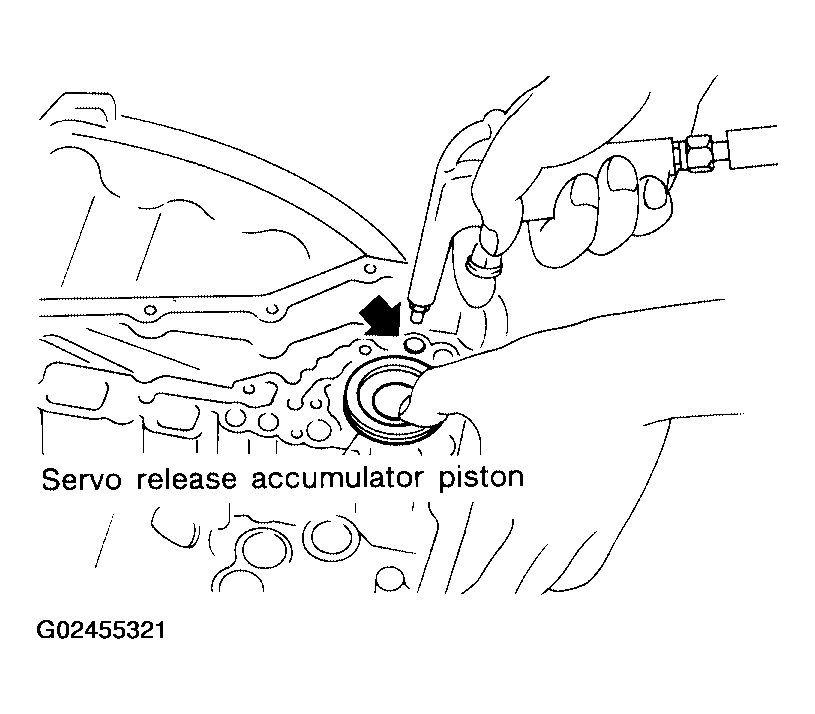

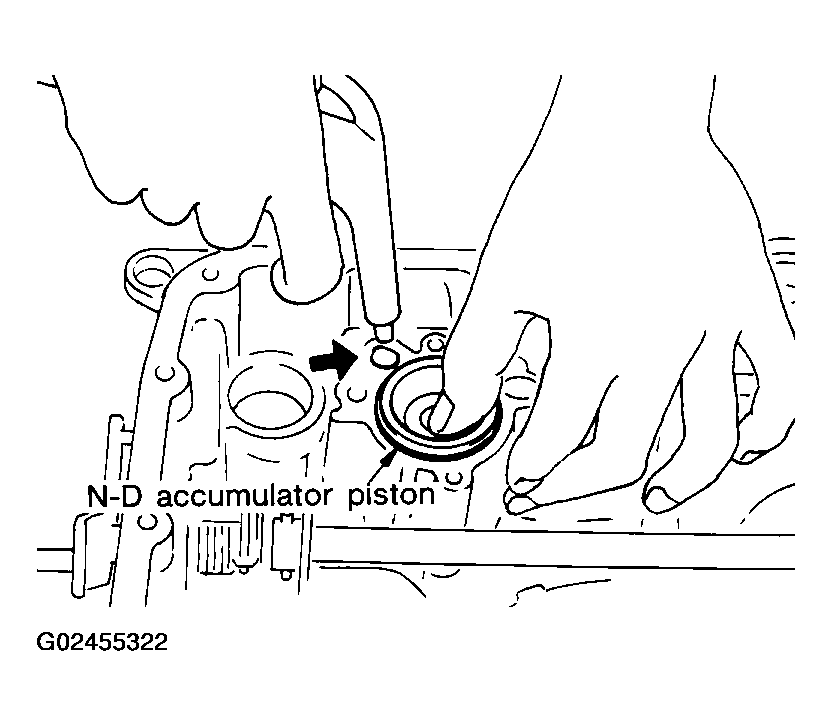

• Return springs: Refer to  RETURN SPRING  .

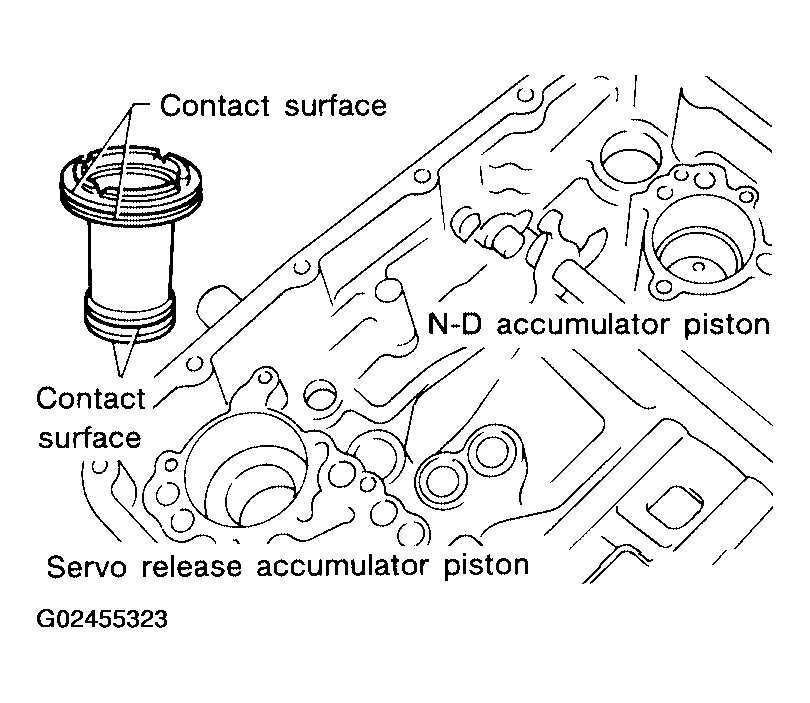

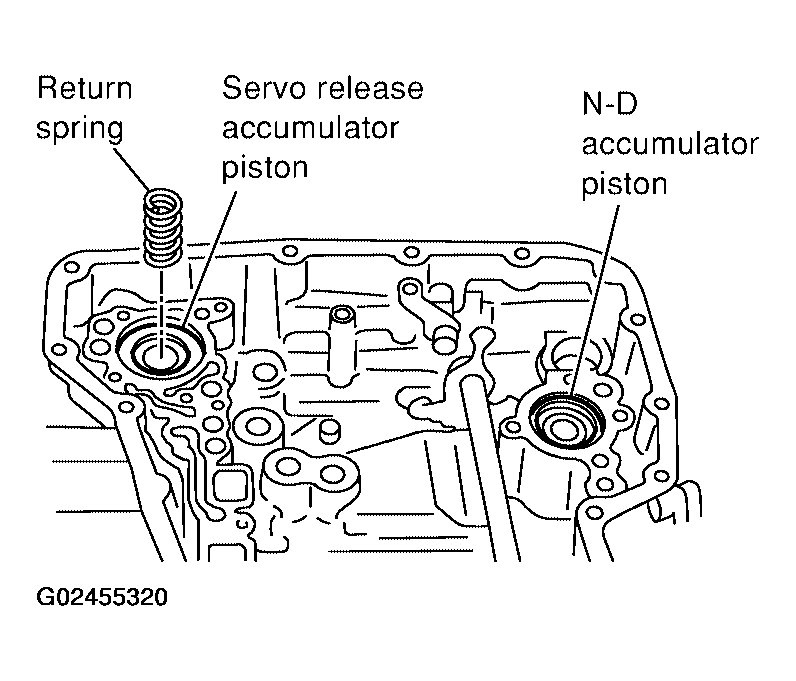

Fig 13: Checking Accumulator Return Springs

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove lip seals from band servo oil port.

Fig 14: Removing Lip Seals From Band Servo Oil Port

Courtesy of NISSAN MOTOR CO., U.S.A.

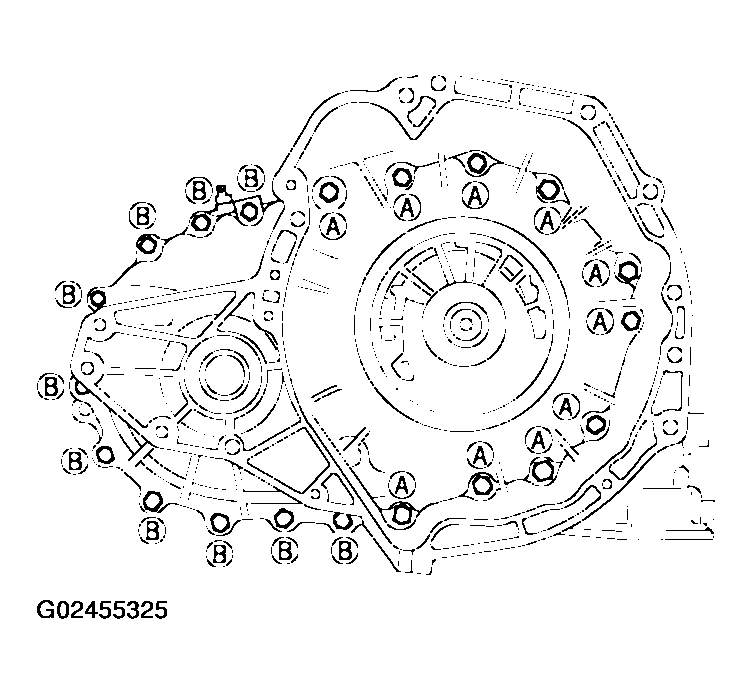

1. Remove converter housing mounting bolts A and B.
   Fig 15: Removing Converter Housing Mounting Bolts

   Courtesy of NISSAN MOTOR CO., U.S.A.

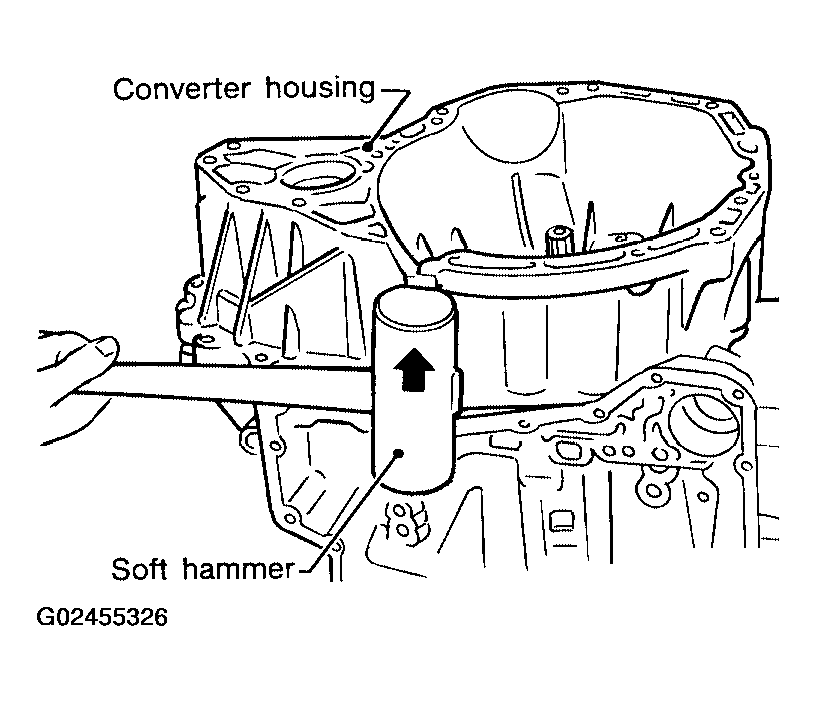

2. Remove converter housing.
   Fig 16: Removing Converter Housing

   Courtesy of NISSAN MOTOR CO., U.S.A.

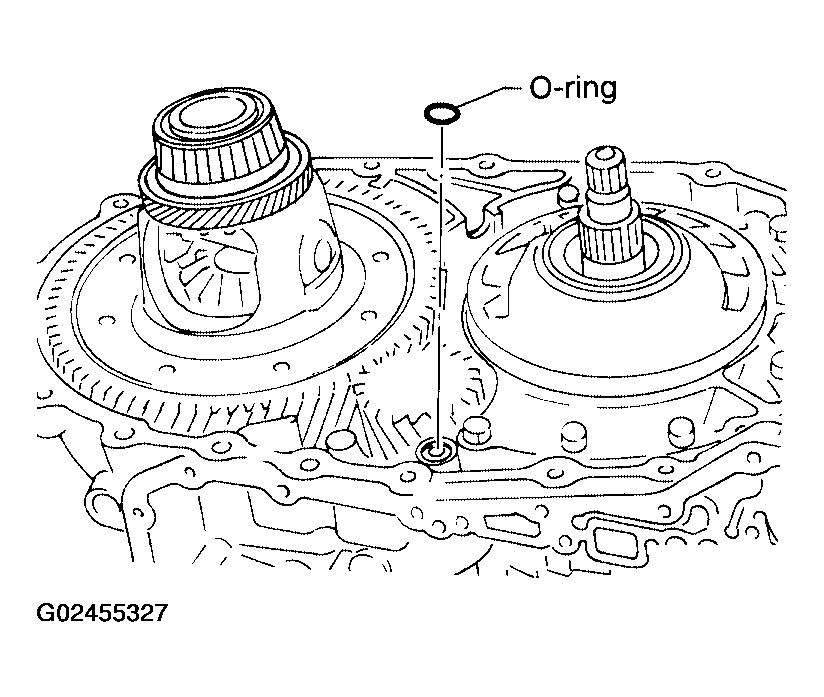

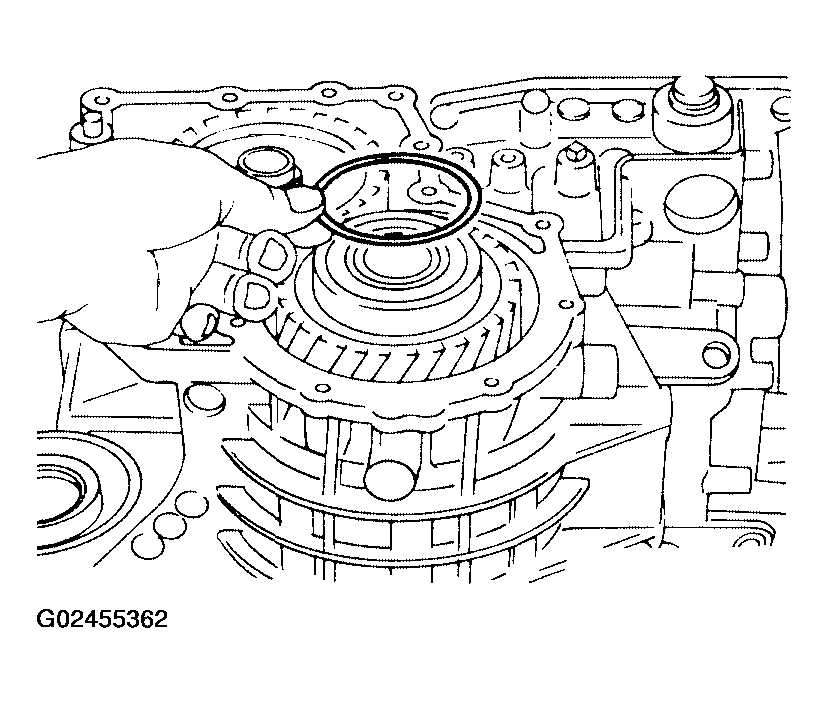

3. Remove O-ring from differential oil port.

Fig 17: Removing O-Ring From Differential Oil Port

Courtesy of NISSAN MOTOR CO., U.S.A.

• Be careful not to damage case  .

Fig 22: Removing Oil Seal From Converter Housing Using Screwdriver

Courtesy of NISSAN MOTOR CO., U.S.A.

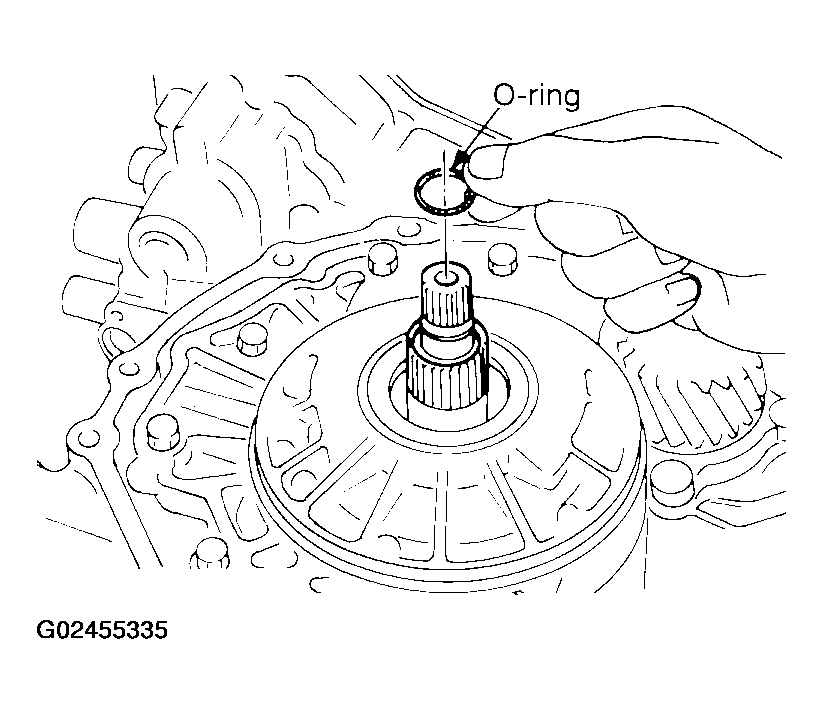

1. Remove O-ring from input shaft.
   Fig 25: Removing O-Ring From Input Shaft

   Courtesy of NISSAN MOTOR CO., U.S.A.

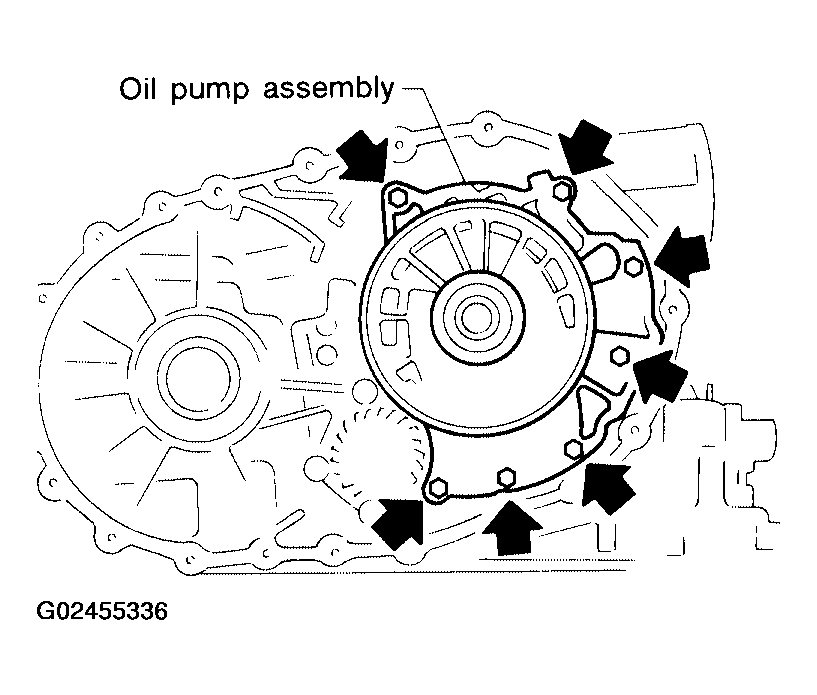

2. Remove oil pump assembly from transmission case.
   Fig 26: Removing Oil Pump Assembly

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Remove thrust washer and bearing race from oil pump assembly.

Fig 27: Removing Thrust Washer & Bearing Race

Courtesy of NISSAN MOTOR CO., U.S.A.

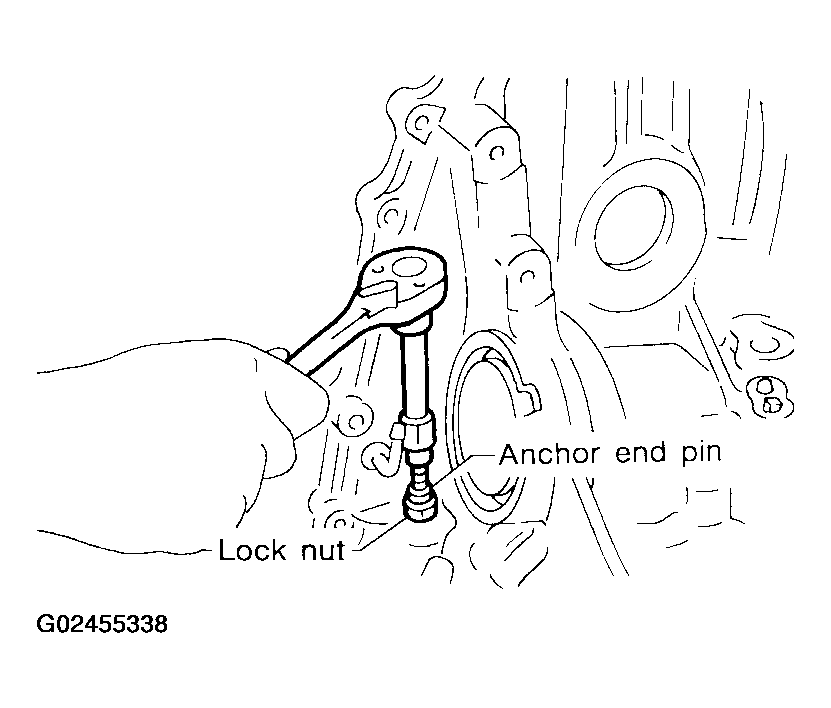

1. Loosen lock nut, then back off anchor end pin.
   • Do not reuse anchor end pin  .
   Fig 28: Removing Brake Band (1 Of 2)

   Courtesy of NISSAN MOTOR CO., U.S.A.

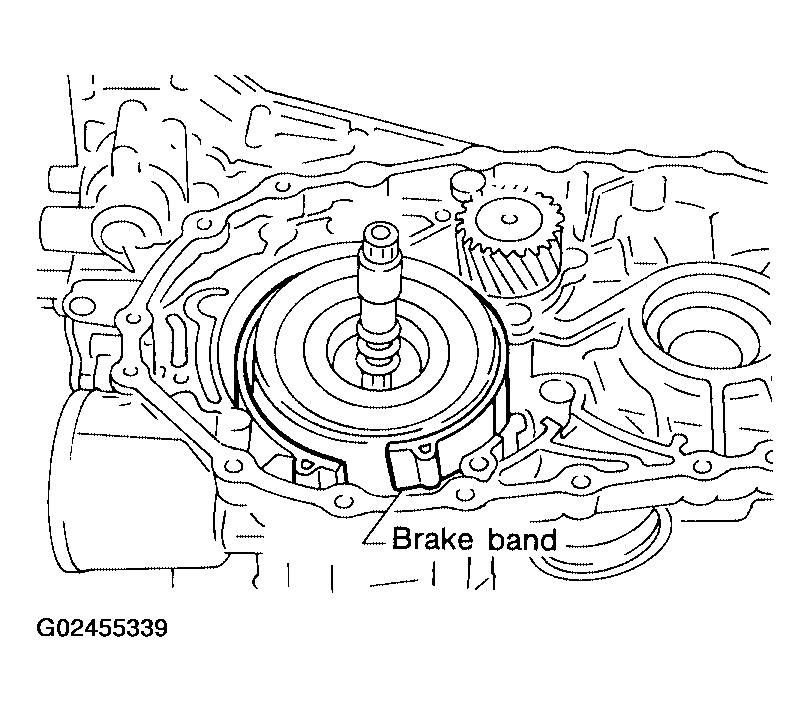

2. Remove brake band from transmission case.
   Fig 29: Removing Brake Band (2 Of 2)

   Courtesy of NISSAN MOTOR CO., U.S.A.
   • To prevent brake linings from cracking or peeling, do not stretch the flexible band unnecessarily. When removing the brake band, always secure it with a clip as shown. Leave the clip in position after removing the brake band.
   Fig 30: Removing Brake Band Clip

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check brake band facing for damage, cracks, wear or burns.

Fig 31: Checking Brake Band Facing For Damage, Cracks, Wear Or Burns

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 32: Removing Input Shaft Assembly (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Remove input shaft assembly (high clutch) with reverse clutch.
2. Remove input shaft assembly (high clutch) from reverse clutch.
   Fig 33: Removing Input Shaft Assembly (2 Of 2)

   Courtesy of NISSAN MOTOR CO., U.S.A.

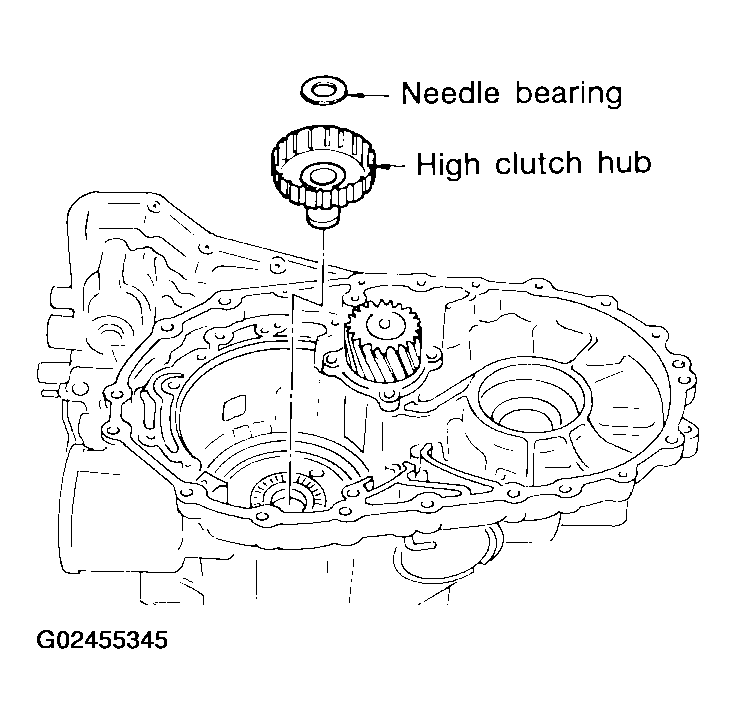

3. Remove needle bearing from high clutch drum.
4. Check input shaft assembly and needle bearing for damage or wear.

Fig 34: Removing Needle Bearing

Courtesy of NISSAN MOTOR CO., U.S.A.

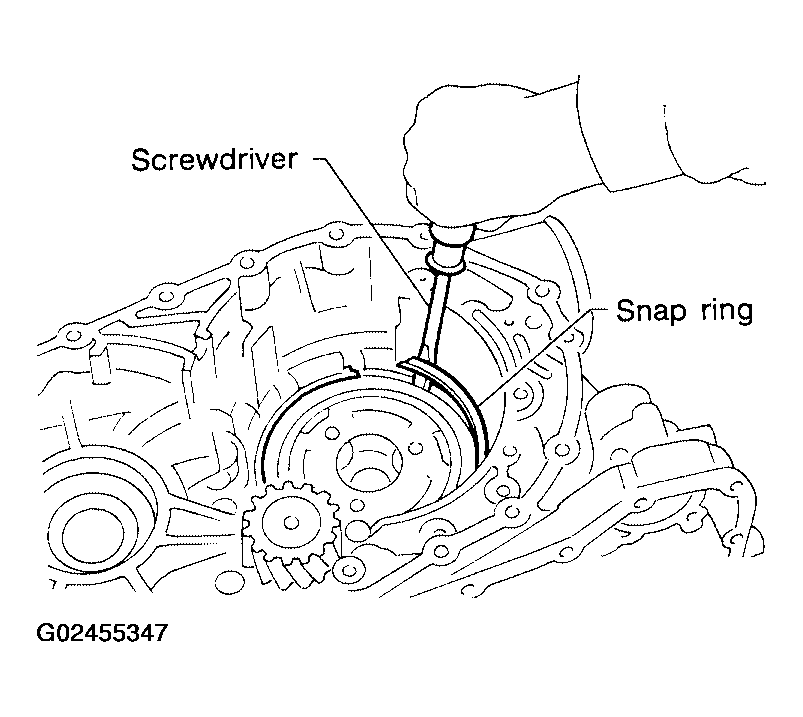

1. Remove snap ring using a screwdriver.
   • Do not expand snap ring excessively  .
   Fig 37: Removing Snap Ring Using Screwdriver

   Courtesy of NISSAN MOTOR CO., U.S.A.

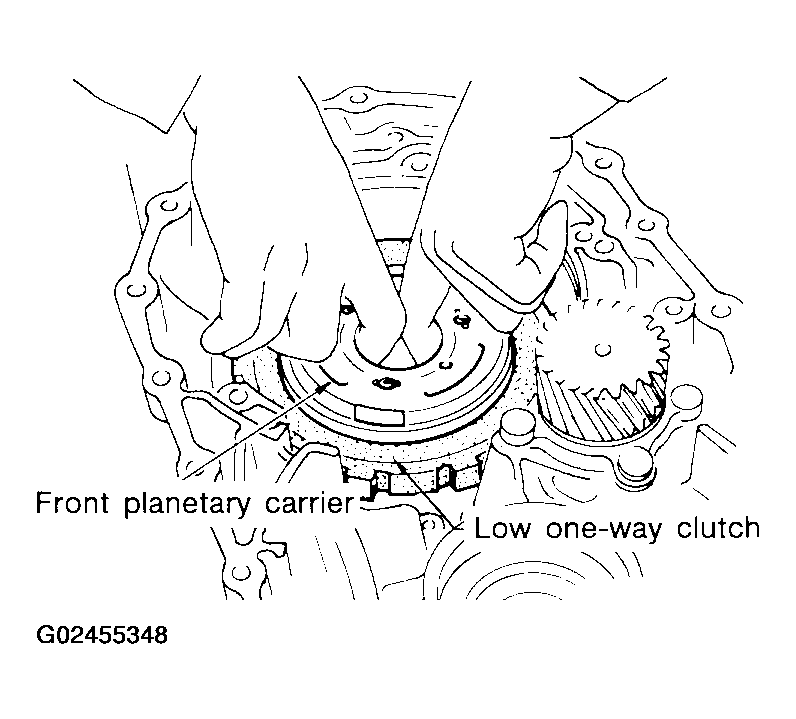

2. Remove front planetary carrier with low one-way clutch.
   Fig 38: Removing Front Planetary Carrier

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check that low one-way clutch rotates in the direction of the arrow and locks in the opposite direction.
   Fig 39: Checking That Low One-Way Clutch Rotation

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Remove low one-way clutch from front planetary carrier by rotating it in the direction of unlock.

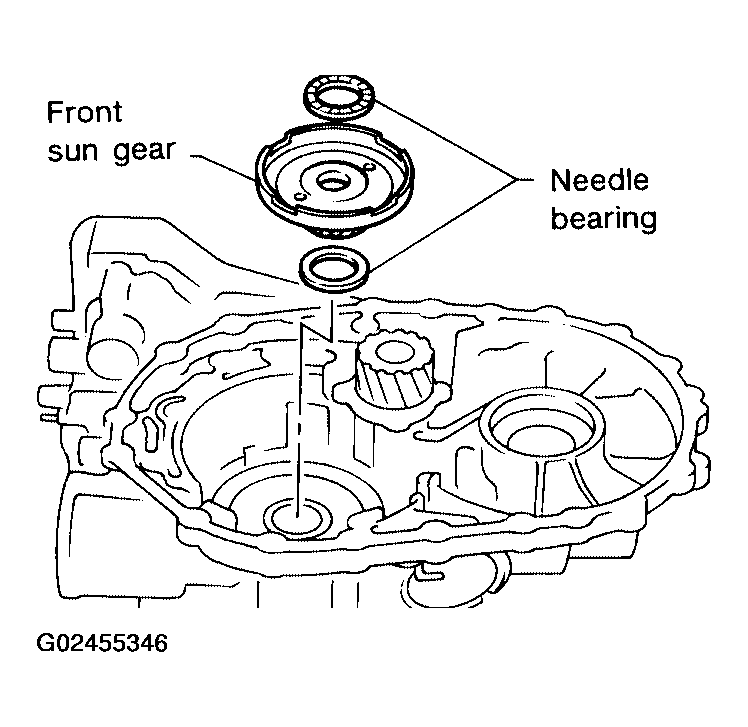

5. Remove needle bearing from front planetary carrier.
   Fig 40: Removing Needle Bearing

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. Check front planetary carrier, low one-way clutch and needle bearing for damage or wear.
7. Check clearance between pinion washer and planetary carrier using feeler gauge.
   • Standard clearance: 0.15 - 0.70 mm (0.0059 - 0.0276 in)
   • Allowable limit: 0.80 mm (0.0315 in)

   Replace front planetary carrier if the clearance exceeds allowable limit.

Fig 41: Checking Clearance Between Pinion Washer & Planetary Carrier

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 42: Removing Rear Planetary Carrier Assembly & Rear Sun Gear

Courtesy of NISSAN MOTOR CO., U.S.A.

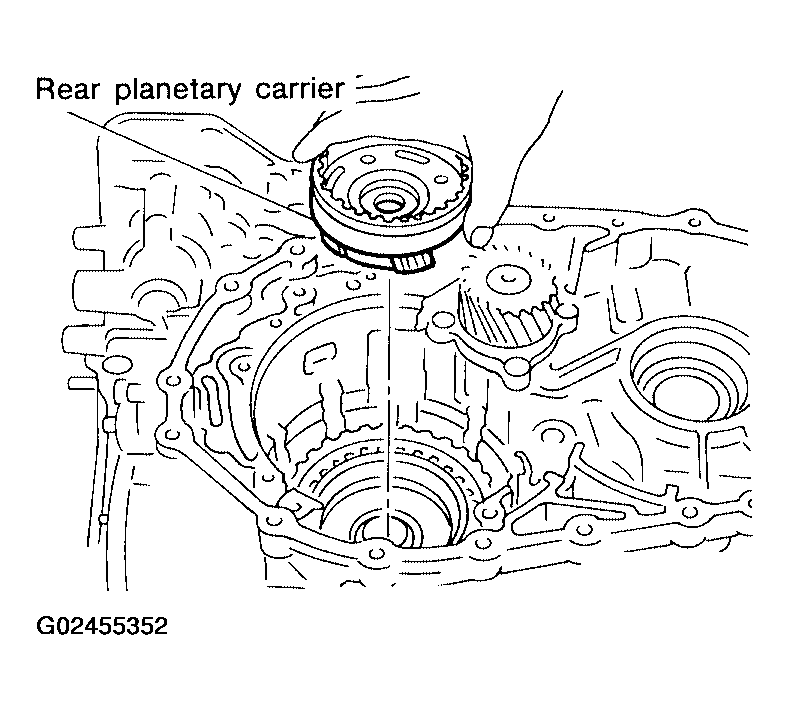

1. Remove rear planetary carrier assembly from transmission case.

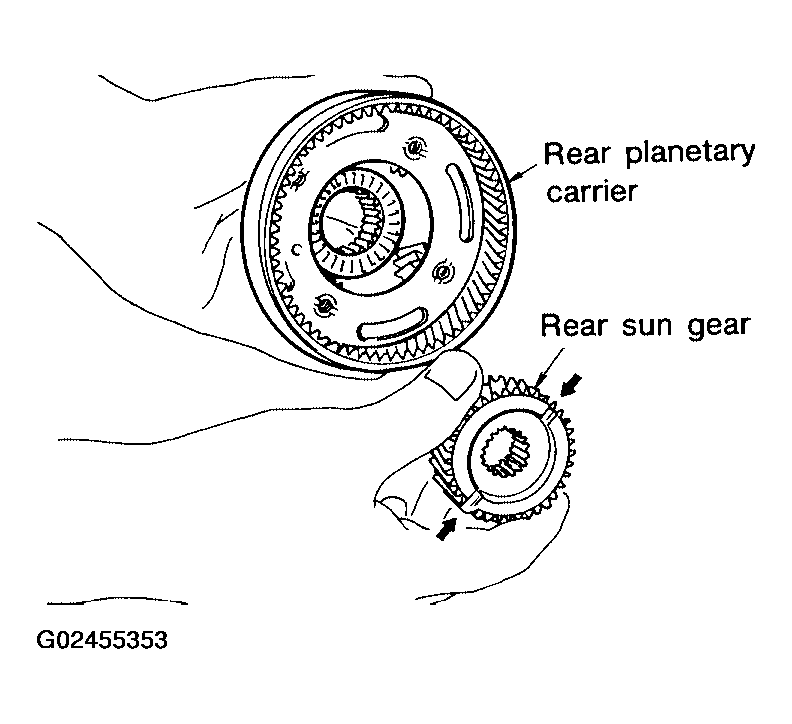

2. Remove rear sun gear from rear planetary carrier.
   Fig 43: Removing Rear Sun Gear From Rear Planetary Carrier

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Remove needle bearings from rear planetary carrier assembly.
   Fig 44: Removing Needle Bearings From Rear Planetary Carrier Assembly

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check rear planetary carrier, rear sun gear and needle bearings for damage or wear.
5. Check clearance between pinion washer and rear planetary carrier using feeler gauge.
   • Standard clearance: 0.15 - 0.70 mm (0.0059 - 0.0276 in)
   • Allowable limit: 0.80 mm (0.0315 in)

   Replace rear planetary carrier if the clearance exceeds allowable limit.

Fig 45: Checking Clearance Between Pinion Washer & Rear Planetary Carrier

Courtesy of NISSAN MOTOR CO., U.S.A.

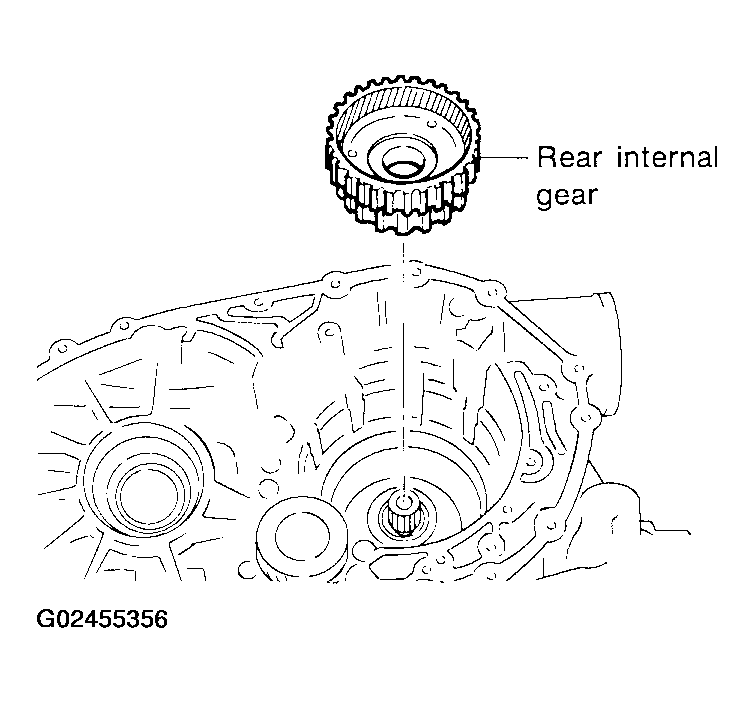

• Check needle bearing for damage or wear.

Fig 47: Removing Needle Bearing

Courtesy of NISSAN MOTOR CO., U.S.A.

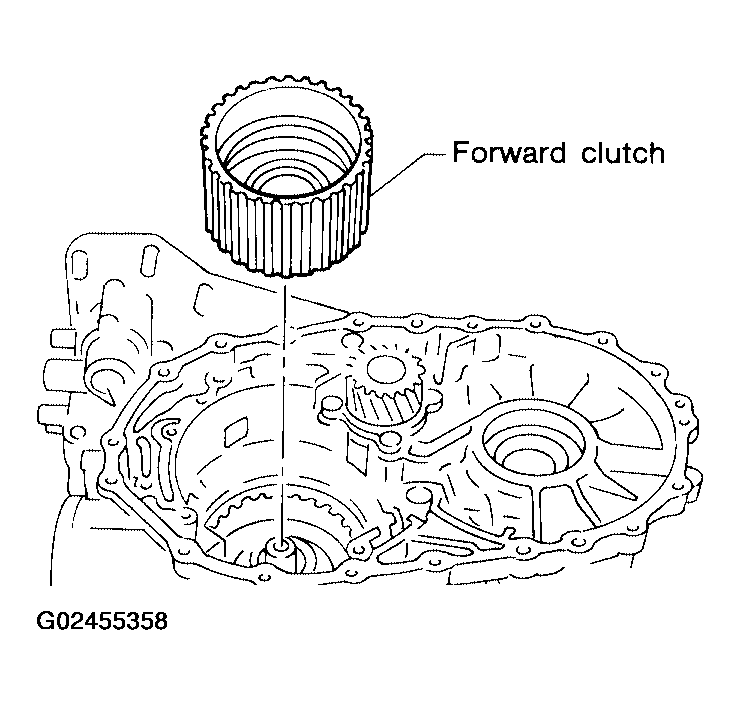

Fig 50: Removing Output Shaft Assembly

Courtesy of NISSAN MOTOR CO., U.S.A.

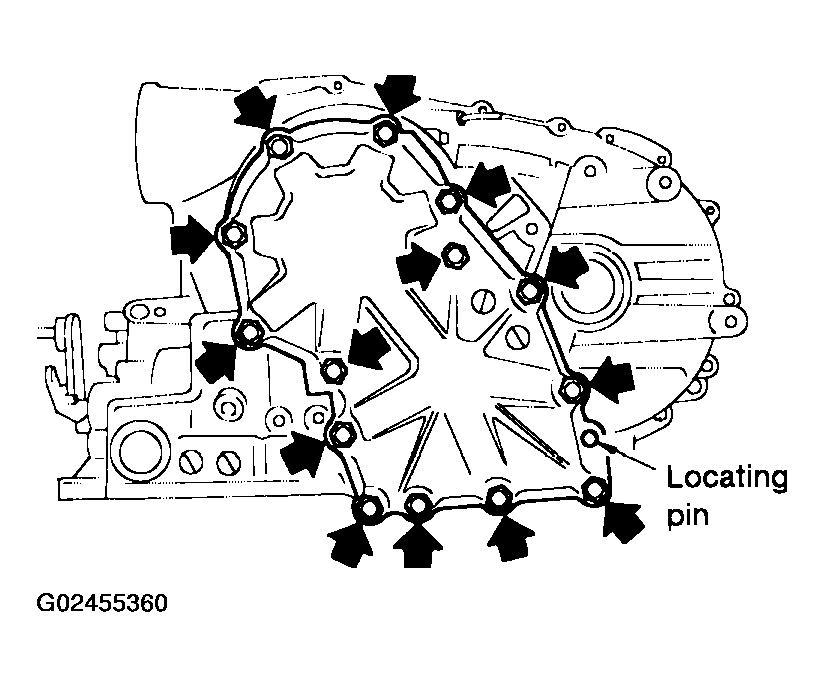

1. Remove side cover bolts.

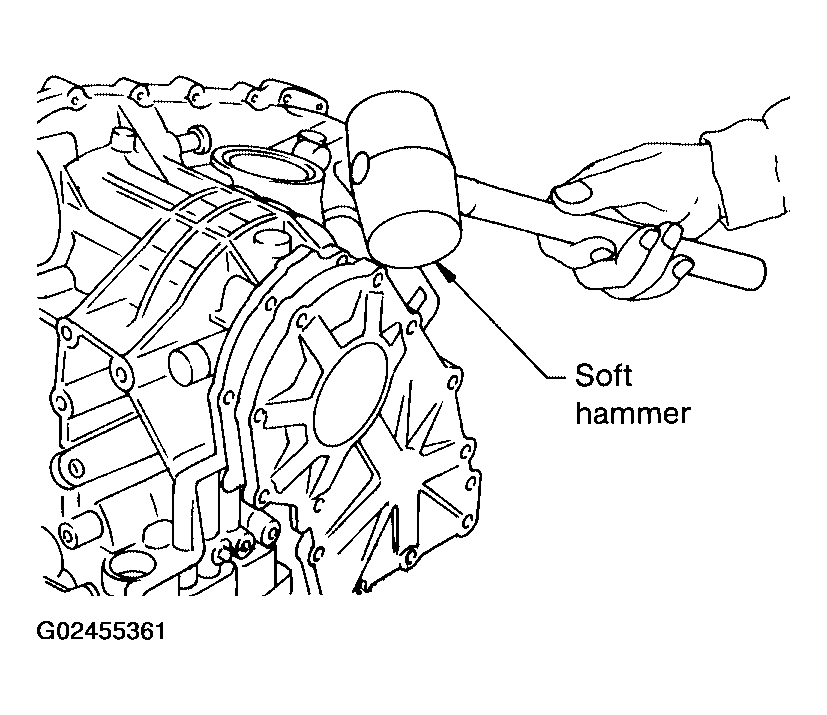

2. Remove side cover by lightly tapping it with a soft hammer.
   Fig 51: Removing Side Cover Bolts

   Courtesy of NISSAN MOTOR CO., U.S.A.
   • Be careful not to drop output shaft assembly. It might come out when removing side cover  .

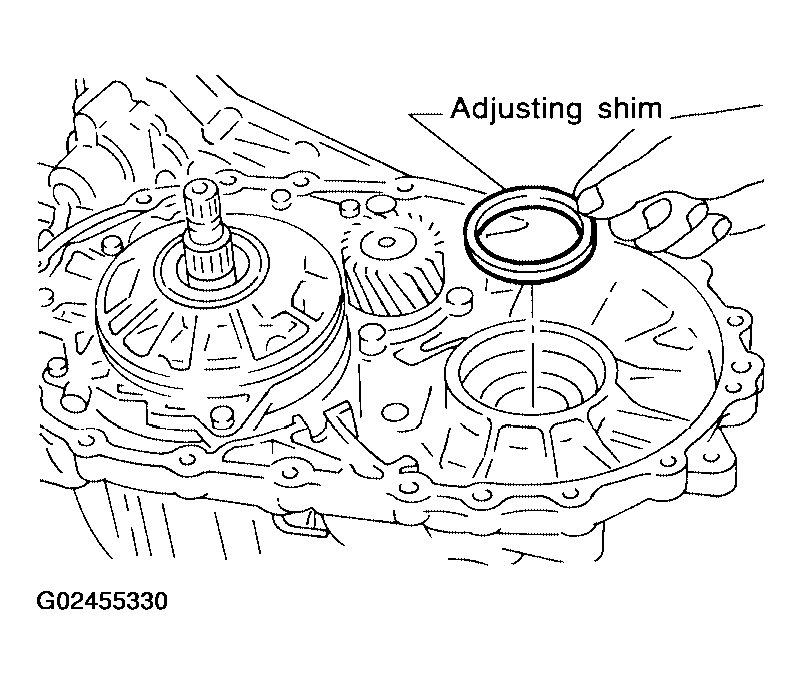

3. Remove adjusting shim.
   Fig 52: Removing Adjusting Shim

   Courtesy of NISSAN MOTOR CO., U.S.A.

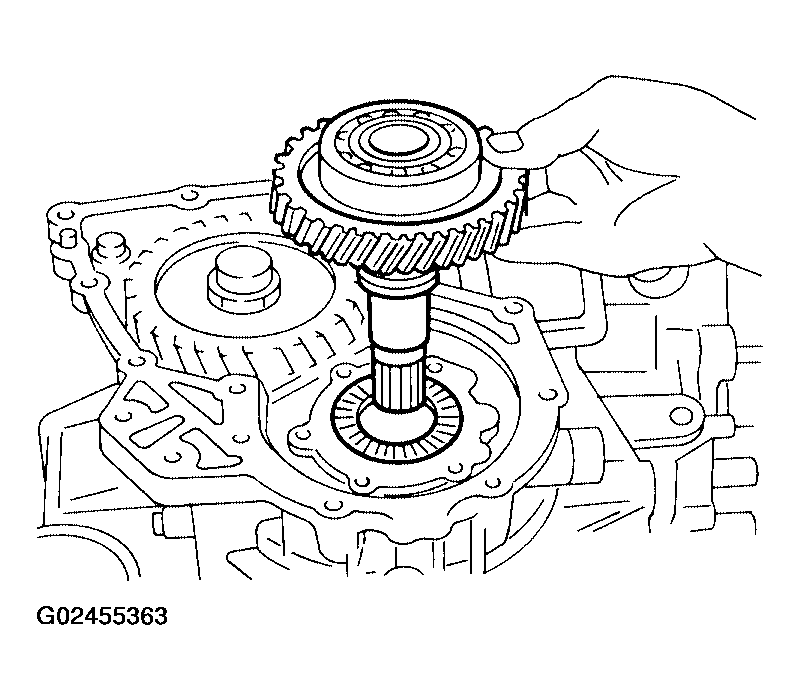

4. Remove output shaft assembly.
   Fig 53: Removing Output Shaft Assembly

   Courtesy of NISSAN MOTOR CO., U.S.A.
   • If output shaft assembly came off with side cover, tap cover with a soft hammer to separate.
   Fig 54: Tapping Cover

   Courtesy of NISSAN MOTOR CO., U.S.A.

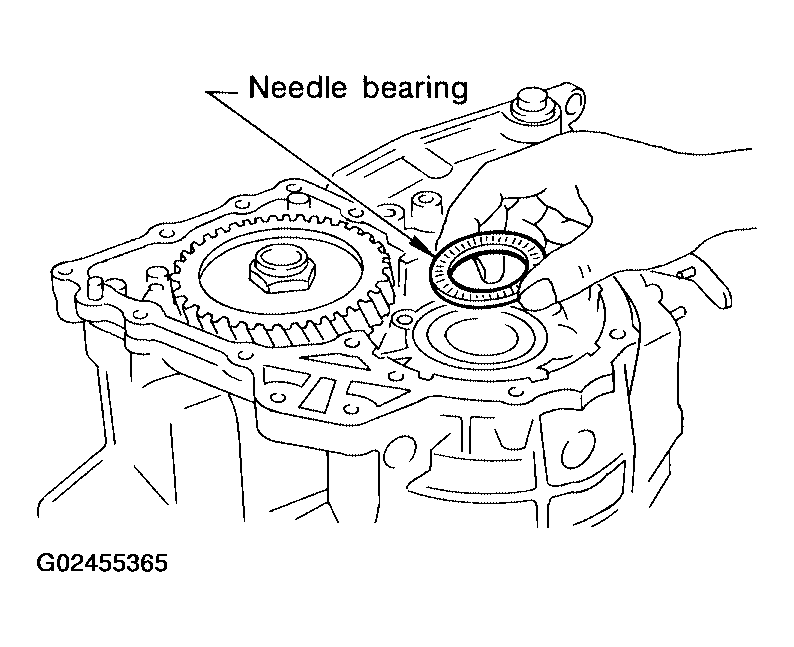

5. Remove needle bearing.

Fig 55: Removing Needle Bearing

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 56: Disassembling Reduction Pinion Gear

Courtesy of NISSAN MOTOR CO., U.S.A.

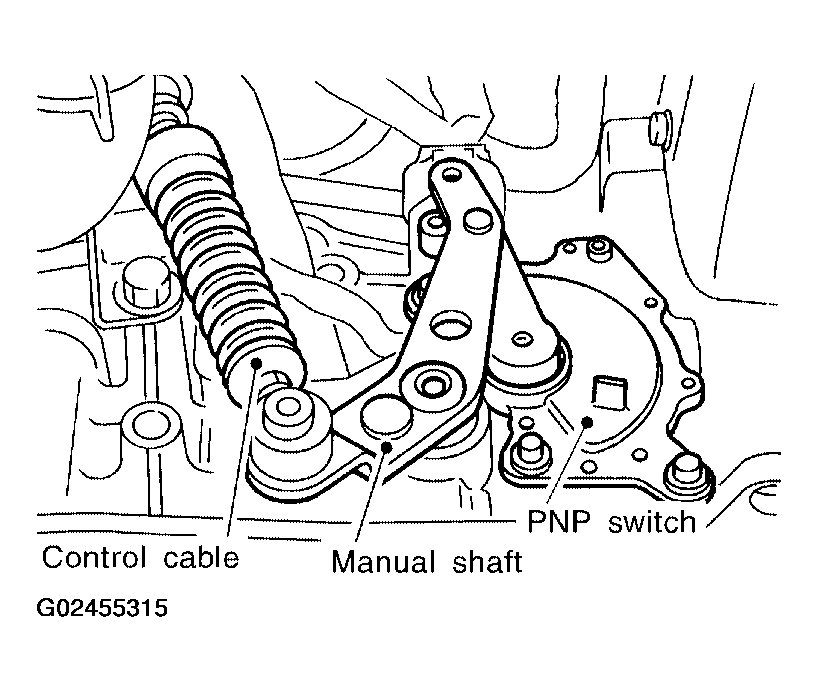

1. Set manual shaft to position "P" to fix idler gear.

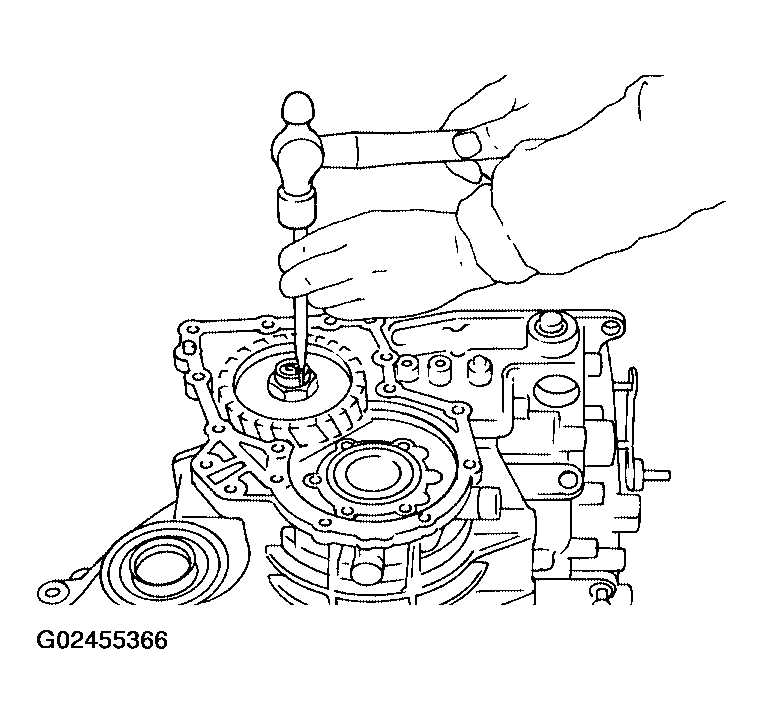

2. Unlock idler gear lock nut using a pin punch.
3. Remove idler gear lock nut.
   • Do not reuse idler gear lock nut  .
   Fig 57: Removing Idler Gear Lock Nut

   Courtesy of NISSAN MOTOR CO., U.S.A.

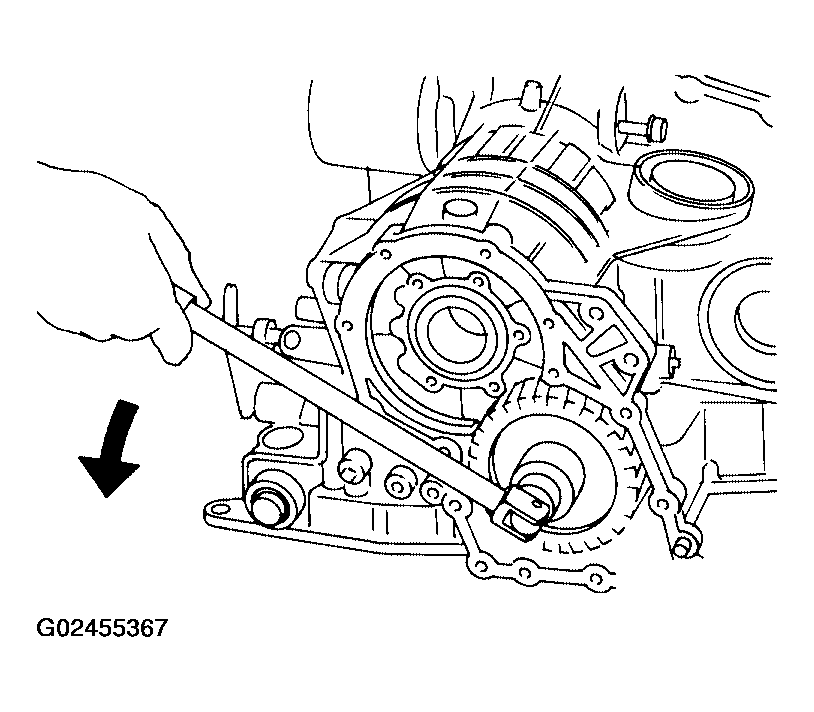

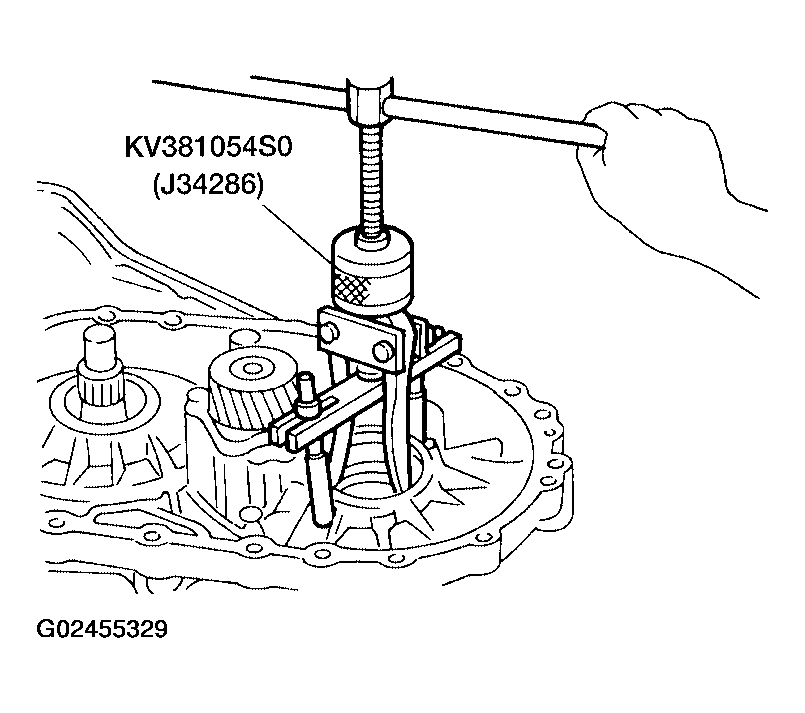

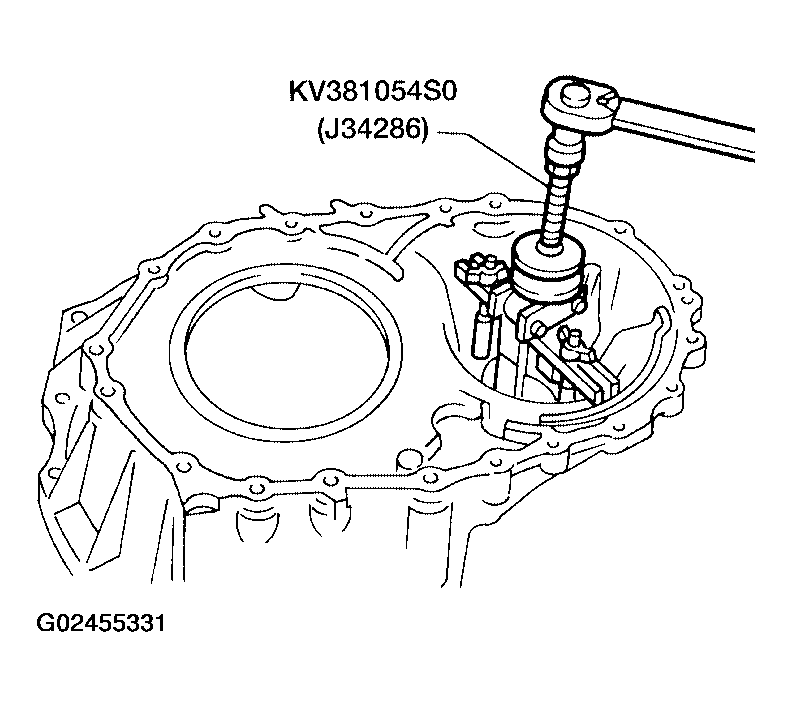

4. Remove idler gear with puller using Tool.
   Fig 58: Removing Idler Gear With Puller

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Remove reduction pinion gear.
6. Remove adjusting shim from reduction pinion gear.

Fig 59: Removing Reduction Pinion Gear

Courtesy of NISSAN MOTOR CO., U.S.A.

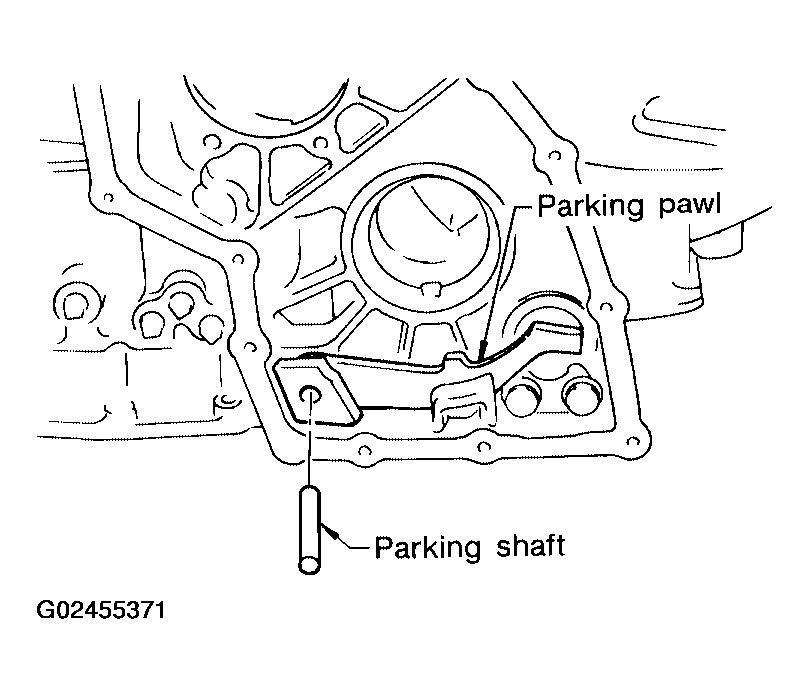

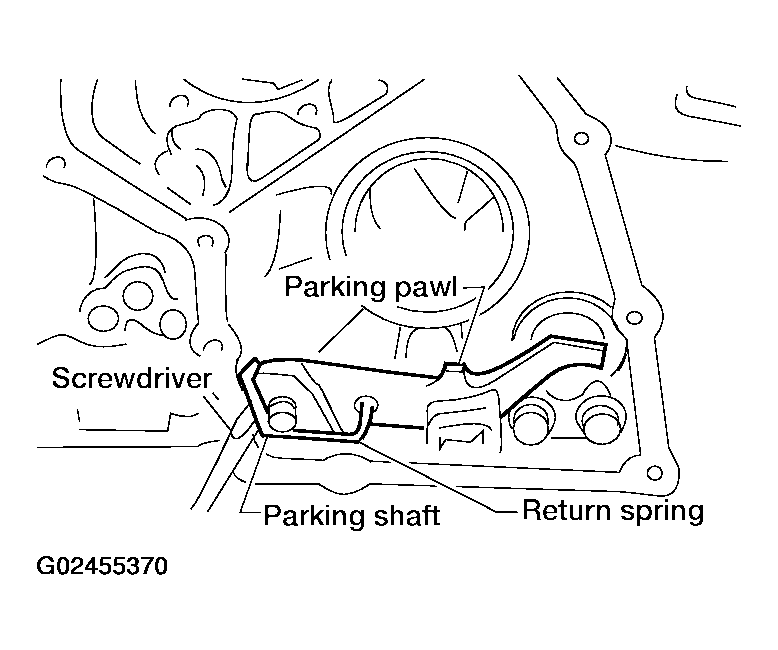

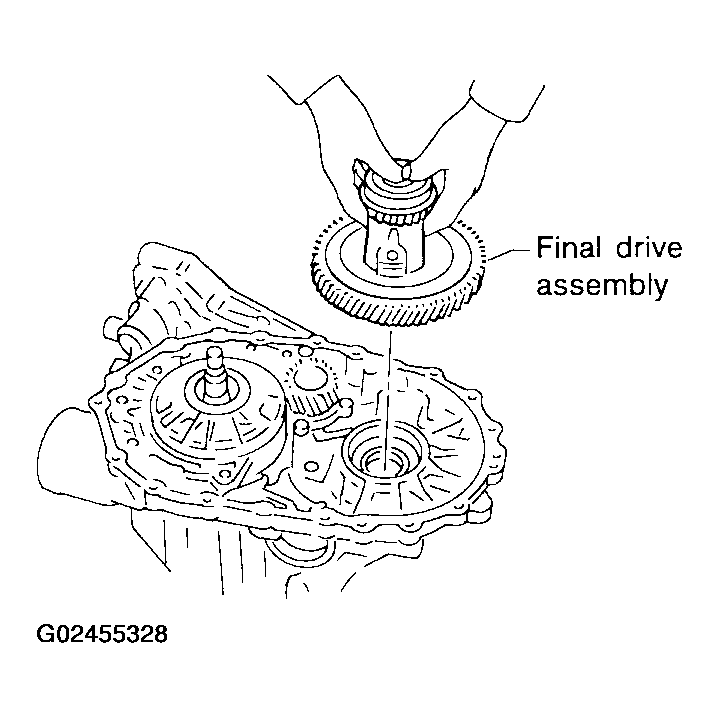

• Check parking actuator support for damage or wear.

Fig 62: Removing Parking Actuator Support

Courtesy of NISSAN MOTOR CO., U.S.A.
