Section 4 (Automatic Transmission (Re4F03B))
>>
Overall System
>>
Control System
>>
Input/Output Signal Of TCM
Input/Output Signal Of TCM
WARNING:
This page is about a different variant/trim than selected.

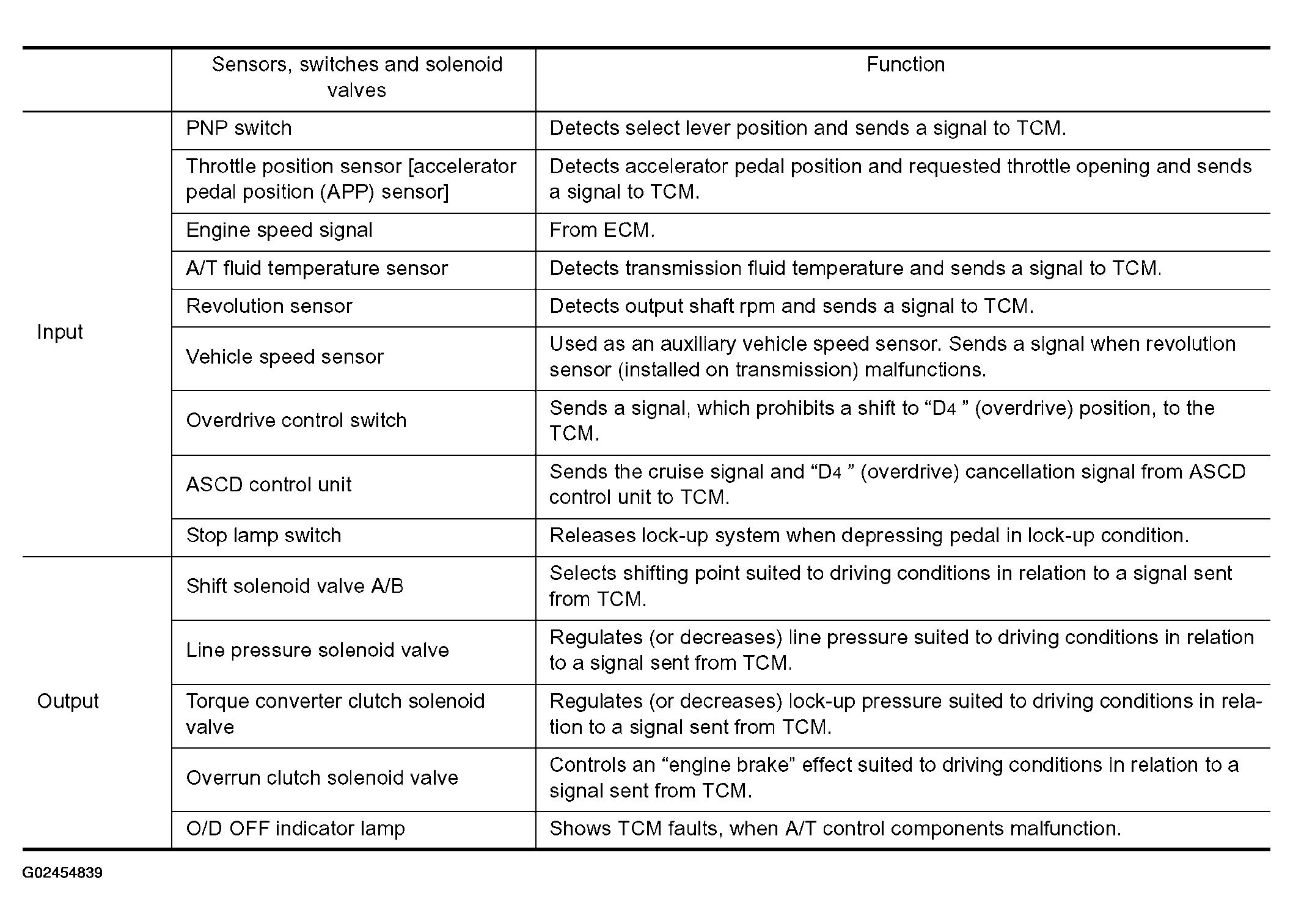

Fig 1: Input/Output Signal - TCM
Courtesy of NISSAN MOTOR CO., U.S.A.
