Manual Shaft: Components

WARNING: This page is about a different variant/trim than selected.

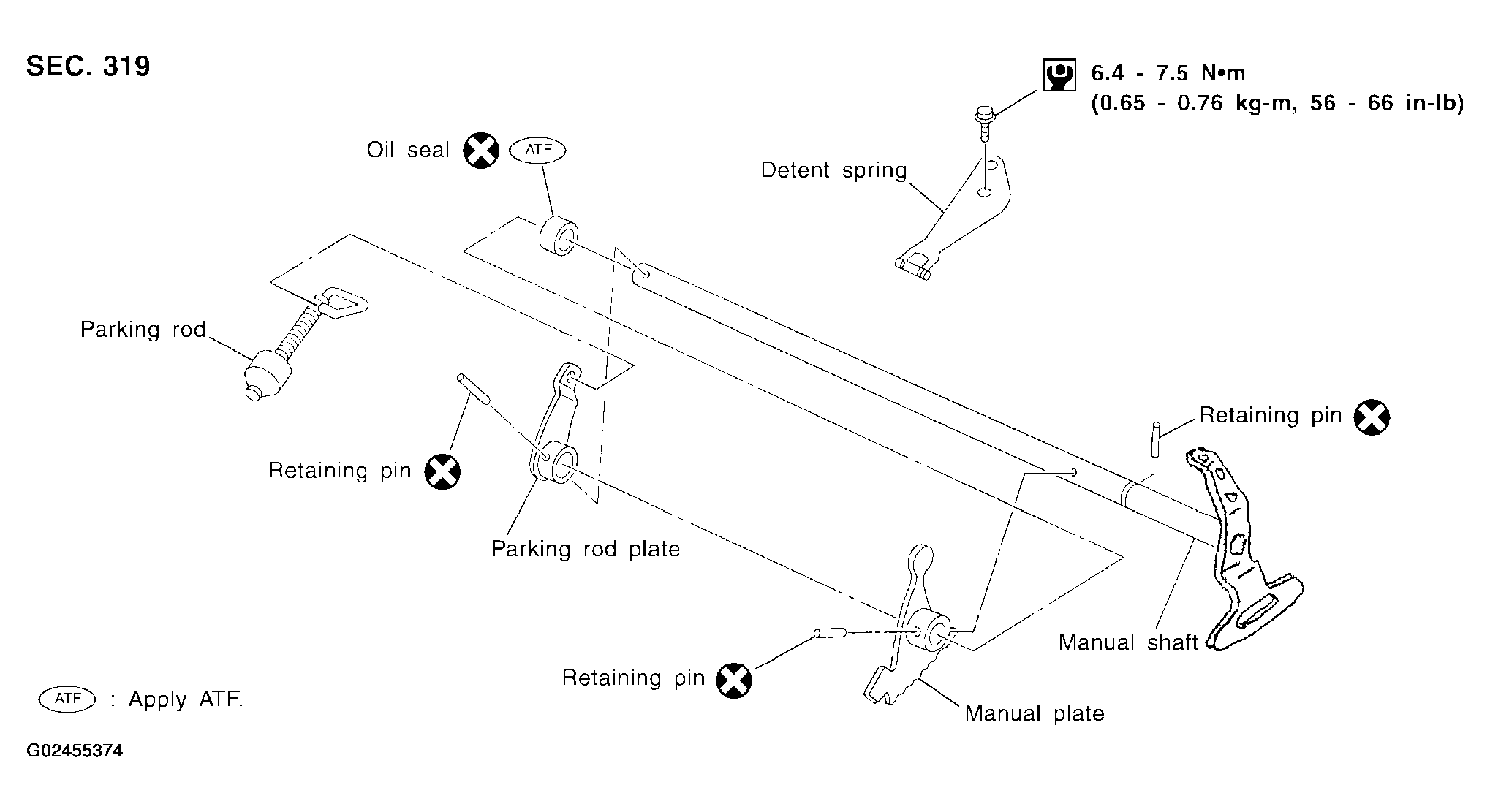

Fig 1: Manual Shaft Replacement Components With Torque Specifications
G02455374Courtesy of NISSAN MOTOR CO., U.S.A.
