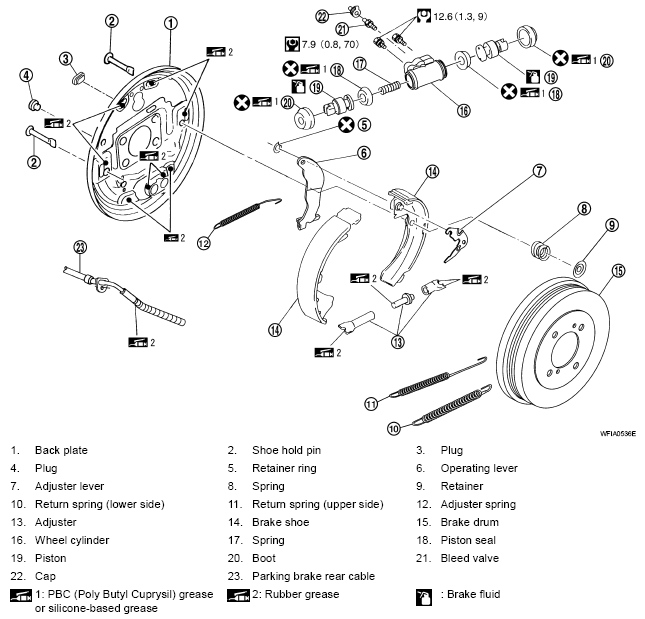

Rear Drum Brake: Components
WARNING: This page is about a different car, the 2007 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
Refer to GI section "COMPONENTS " for symbol marks except as shown.
CAUTION:
- Clean dust on drum and back plate with a vacuum dust collector. Do not blow with compressed air.
- Make sure parking brake lever is released completely.
