Trunk Lid Assembly: Removal

WARNING: This page is about a different car, the 2007 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk lid finisher. Refer to "TRUNK ROOM TRIM & TRUNK LID FINISHER ".
  2. Remove the trunk lid wire harness.
  3. Remove the nuts (a) and the trunk lid assembly (1).

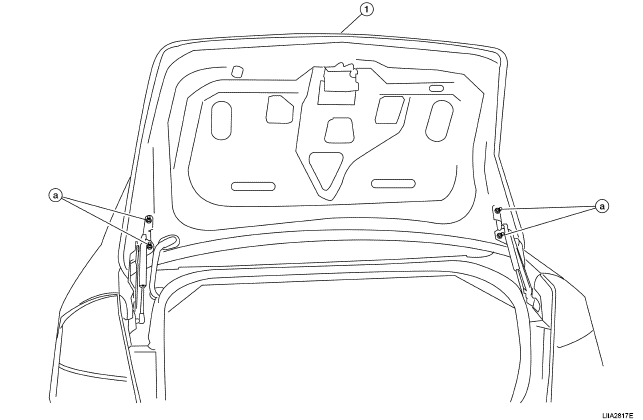

    Fig 1: Identifying Trunk Lid Assembly And Nuts
    G04927738
