With Intelligent Key

WARNING: This page is about a different car, the 2007 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

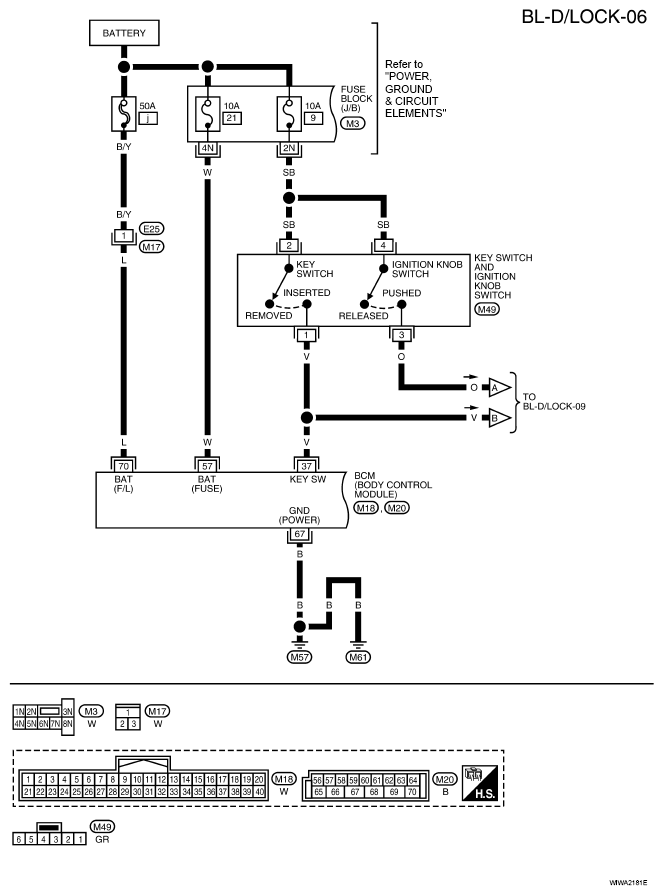

Fig 1: Wiring Diagram (With Intelligent Key) - BL-D/LOCK-06
G04927552

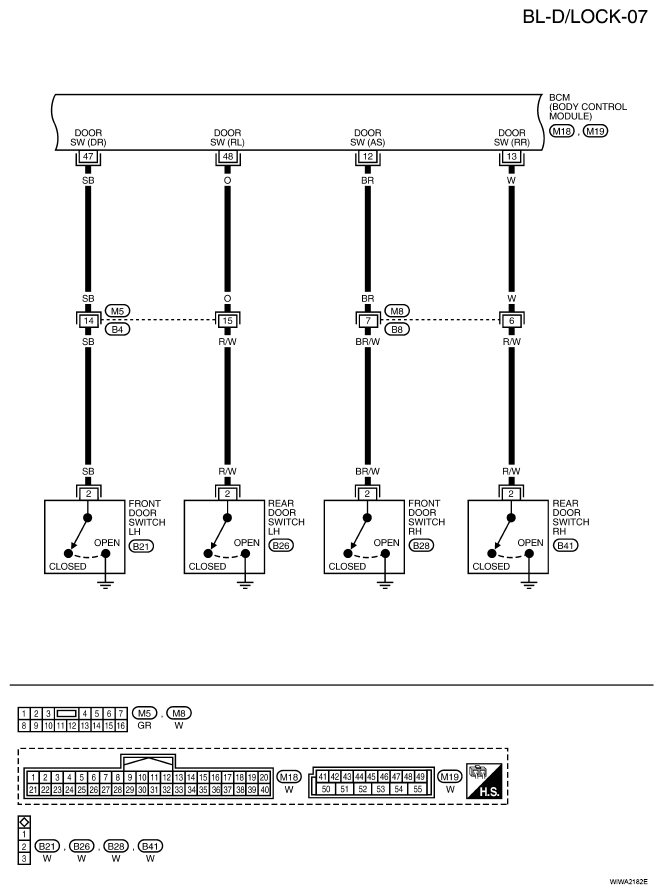

Fig 2: Wiring Diagram (With Intelligent Key) - BL-D/LOCK-07
G04927553

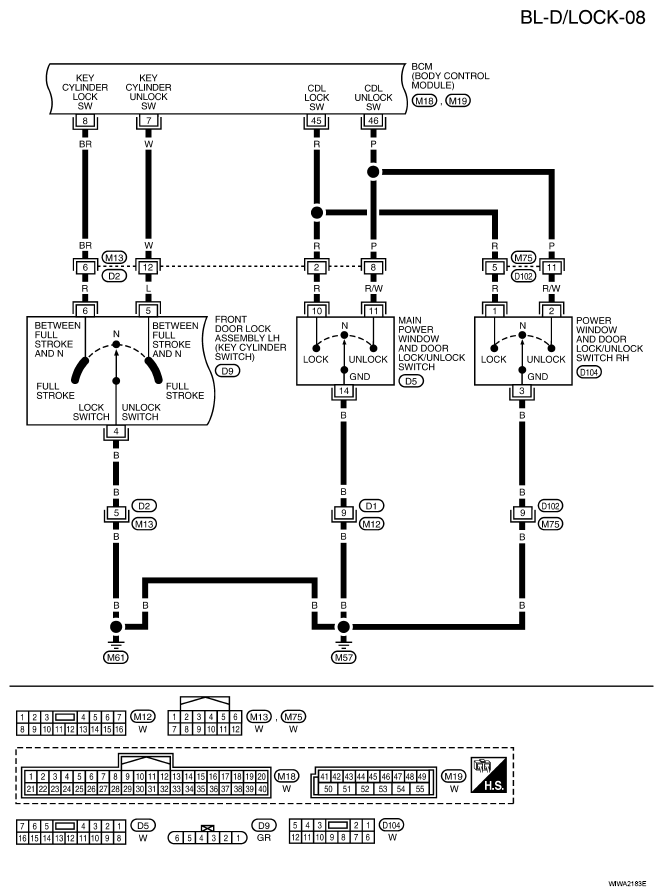

Fig 3: Wiring Diagram (With Intelligent Key) - BL-D/LOCK-08
G04927554

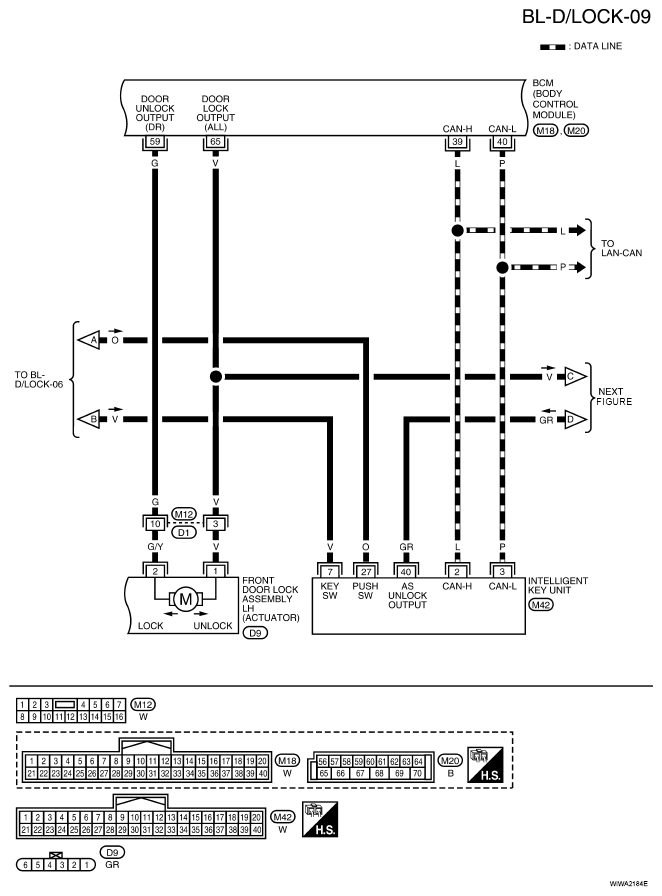

Fig 4: Wiring Diagram (With Intelligent Key) - BL-D/LOCK-09
G04927555

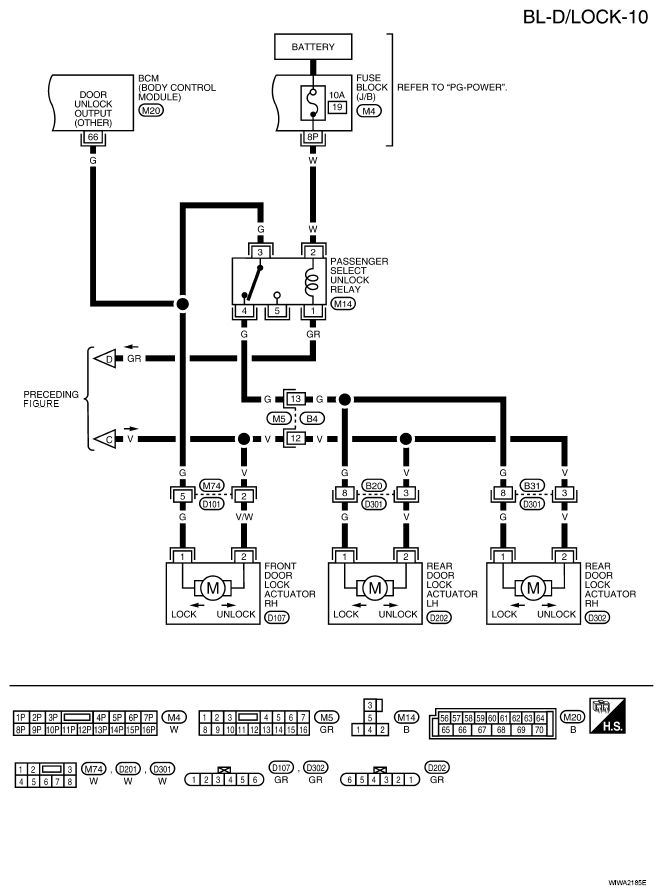

Fig 5: Wiring Diagram (With Intelligent Key) - BL-D/LOCK-10
G04927556
