Key To Symbols Signifying Measurements Or Procedures

WARNING: This page is about a different car, the 2007 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

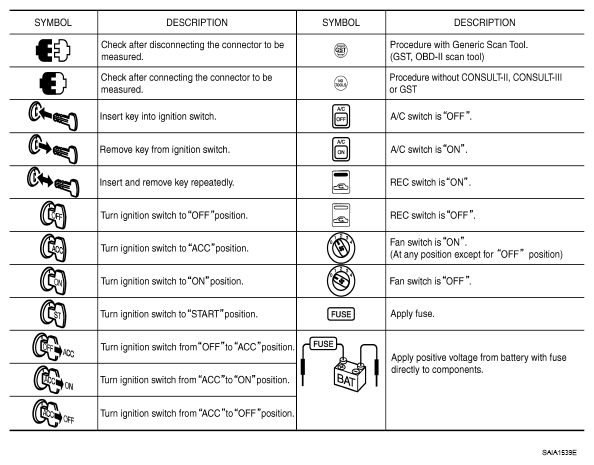

Fig 1: Symbols Chart (1 Of 2)
G04885587

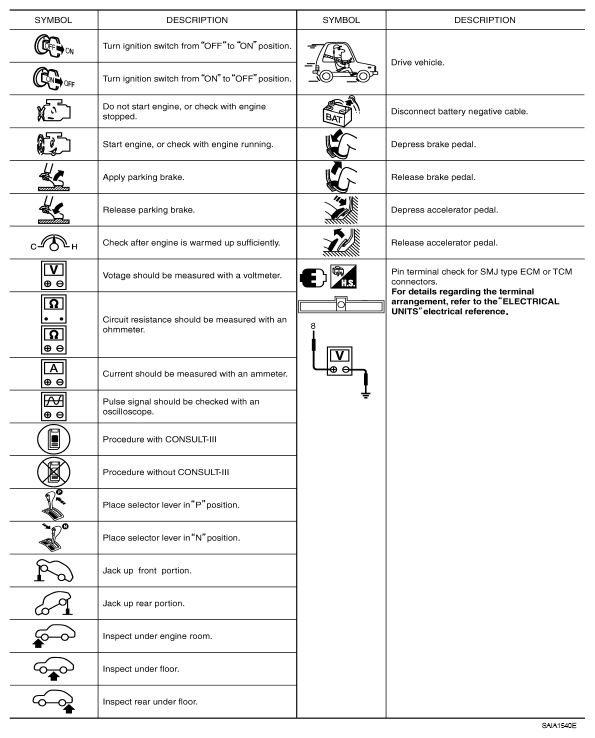

Fig 2: Symbols Chart (2 Of 2)
G04885588
