How to Display SRT Status

WITH CONSULT-II

Selecting "SRT STATUS" in "DTC CONFIRMATION" mode with CONSULT-II.

For items whose SRT codes are set, a "CMPLT" is displayed on the CONSULT-II screen; for items whose SRT codes are not set, "INCMP" is displayed.

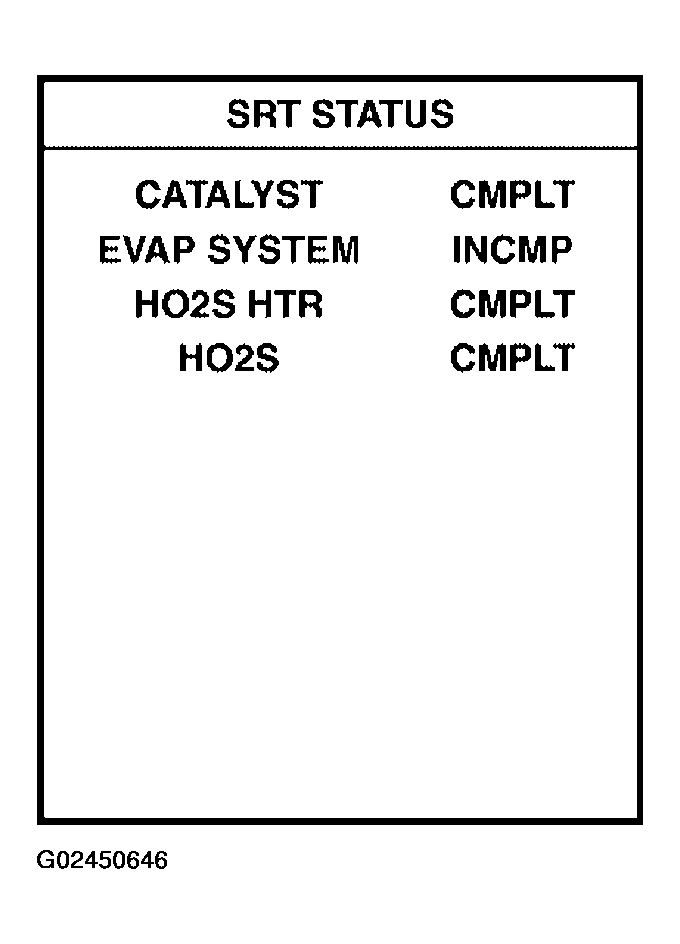

A sample of CONSULT-II display for SRT code is shown in Fig 1.

Fig 1: SRT STATUS In DTC CONFIRMATION Mode - CONSULT-II Screen Display

Courtesy of NISSAN MOTOR CO., U.S.A.

"INCMP" means the self-diagnosis is incomplete and SRT is not set.

"CMPLT" means the self-diagnosis is complete and SRT is set.

WITH GST

Selecting Service $01 with GST (Generic Scan Tool)

No Tools

A SRT code itself can not be displayed while only SRT status can be.

1. Turn ignition switch ON and wait 20 seconds.

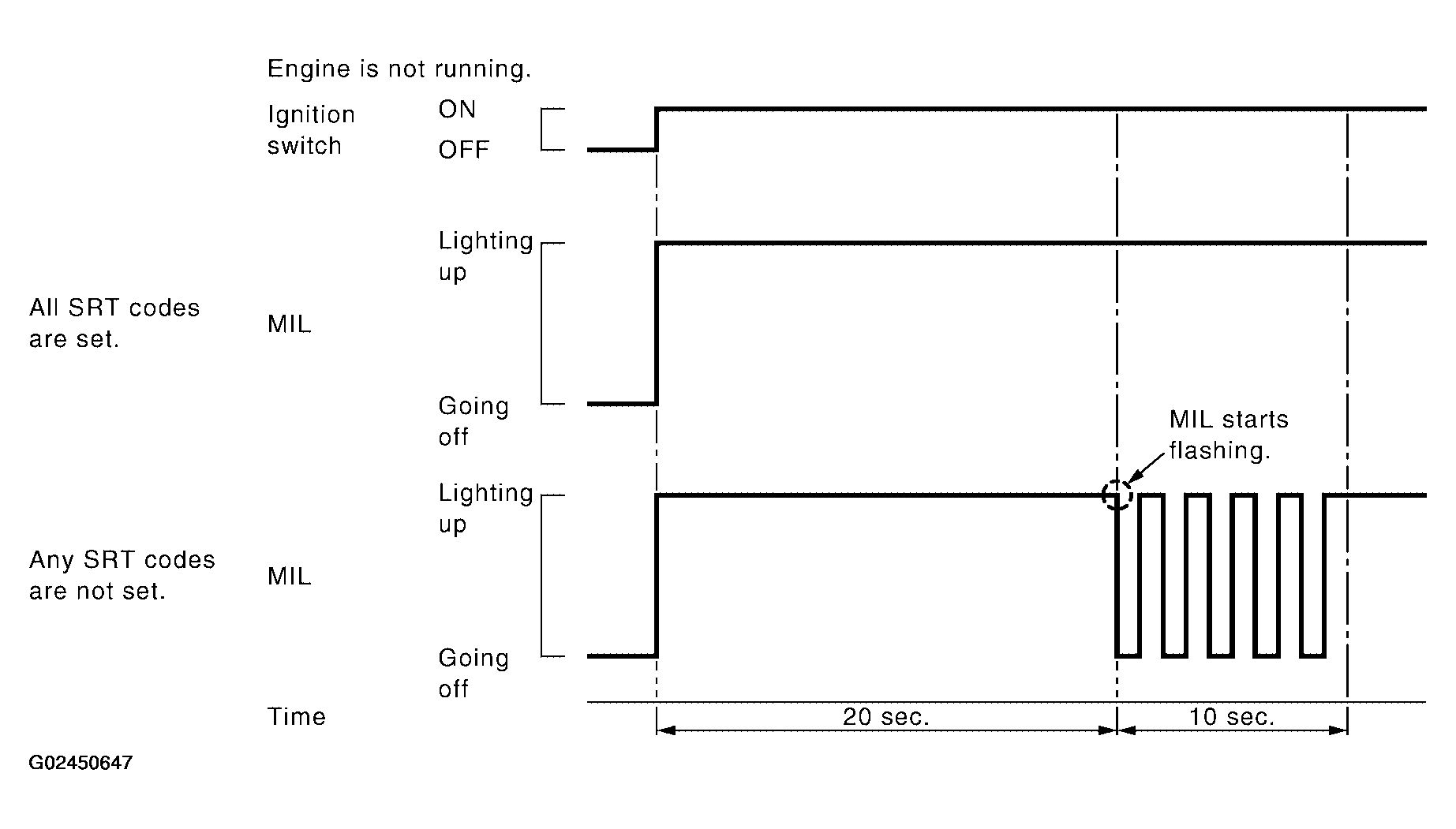

2. SRT status is indicated as shown in Fig 2.
   • When all SRT codes are set, MIL lights up continuously.
   • When any SRT codes are not set, MIL will flash periodically for 10 seconds.
   Fig 2: MIL Blinking Patter For SRT Codes

   Courtesy of NISSAN MOTOR CO., U.S.A.
