Engine Control System - Introduction (Qr25DE)
>>
Evaporative Emission System
>>
Description
>>
Evaporative Emission Line Drawing
Evaporative Emission Line Drawing

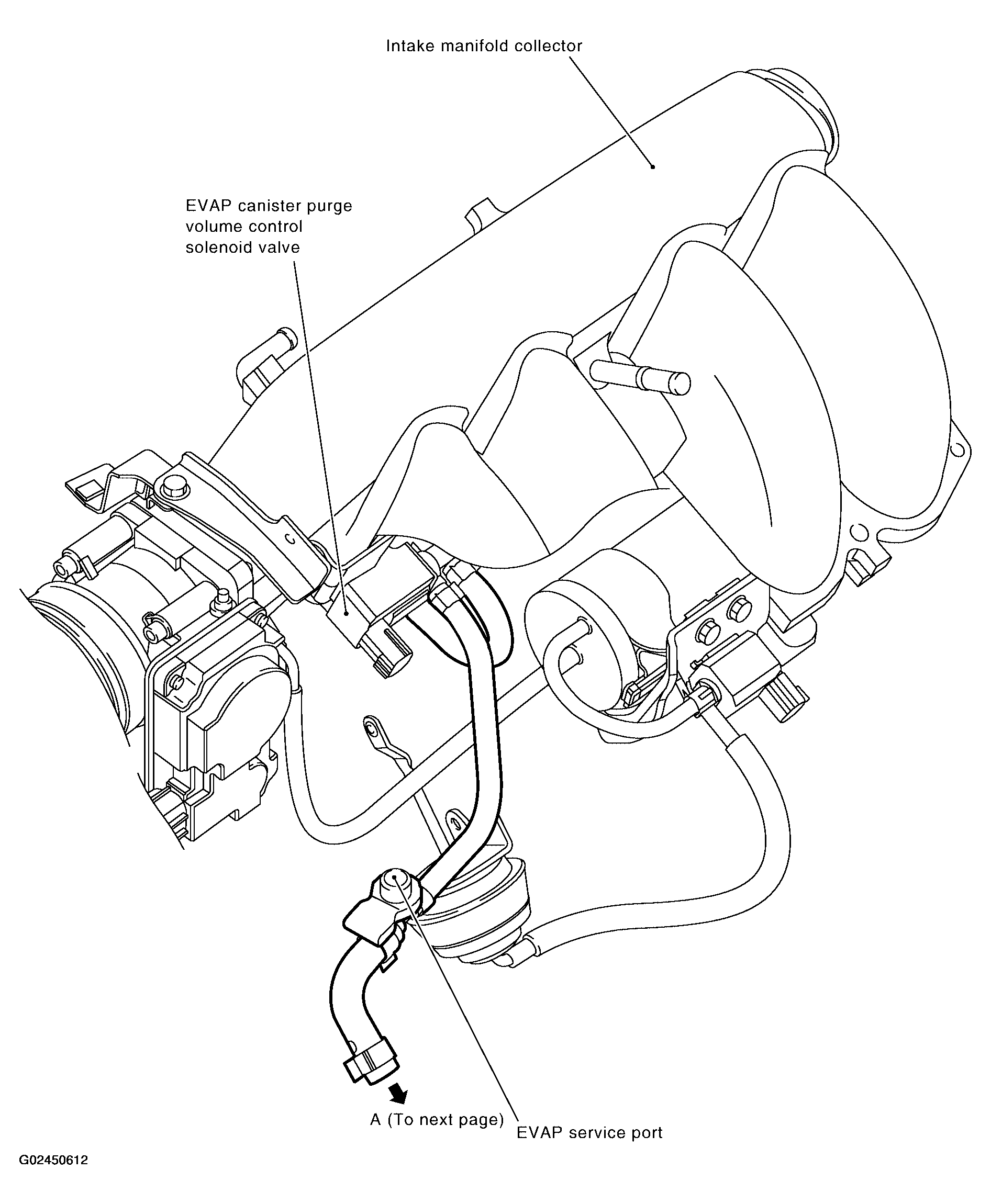

Fig 1: Evaporative Emission System Components (On Engine)
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

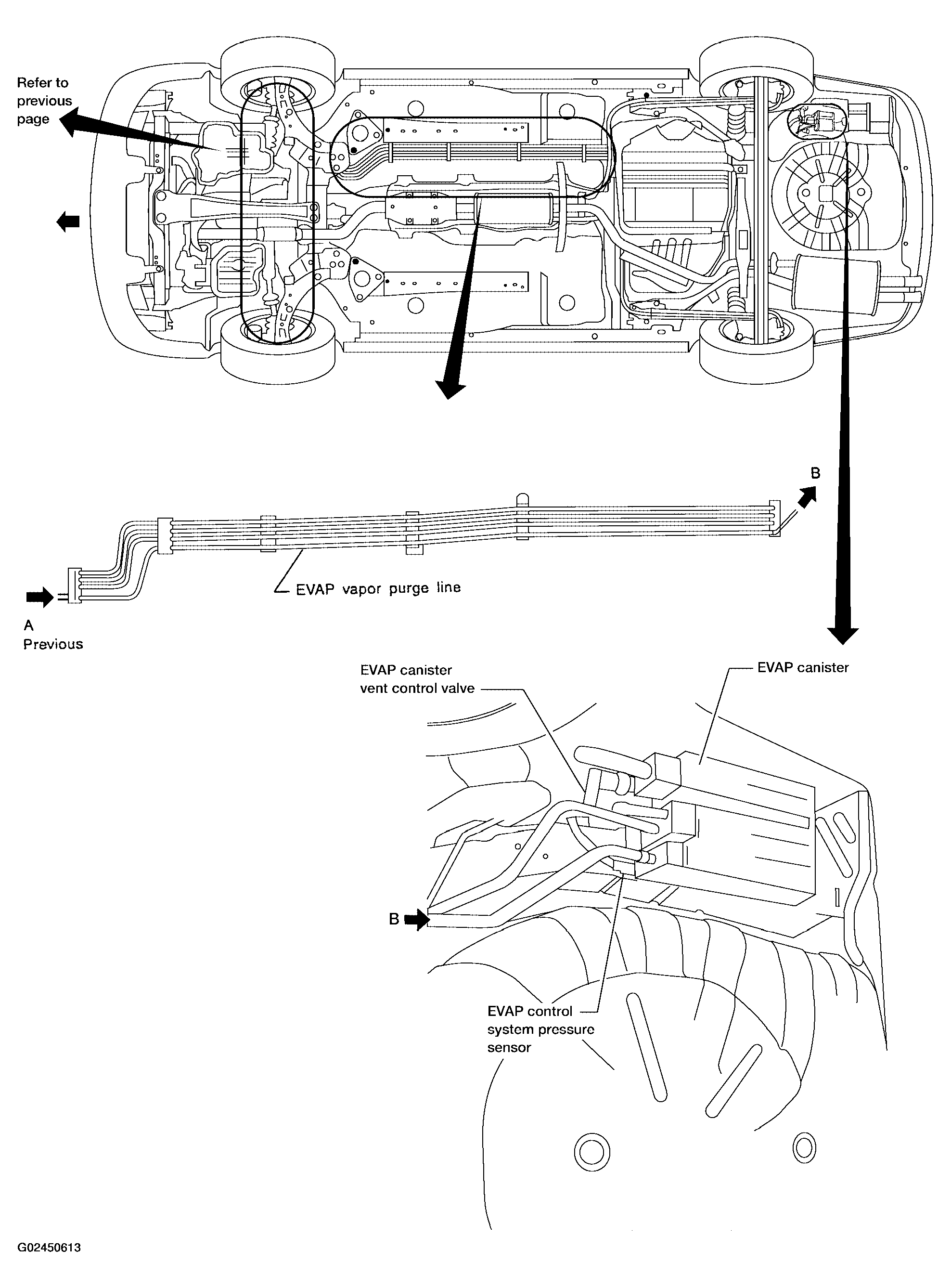

Fig 2: Evaporative Emission System Components (Under Vehicle)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
