Knock Sensor

Check resistance between knock sensor terminal 1 and ground.

NOTE: It is necessary to use an ohmmeter which can measure more than 10 M ohms.
  1. Resistance: Approximately 530 - 590 k ohms [at 20°C (68°F)]

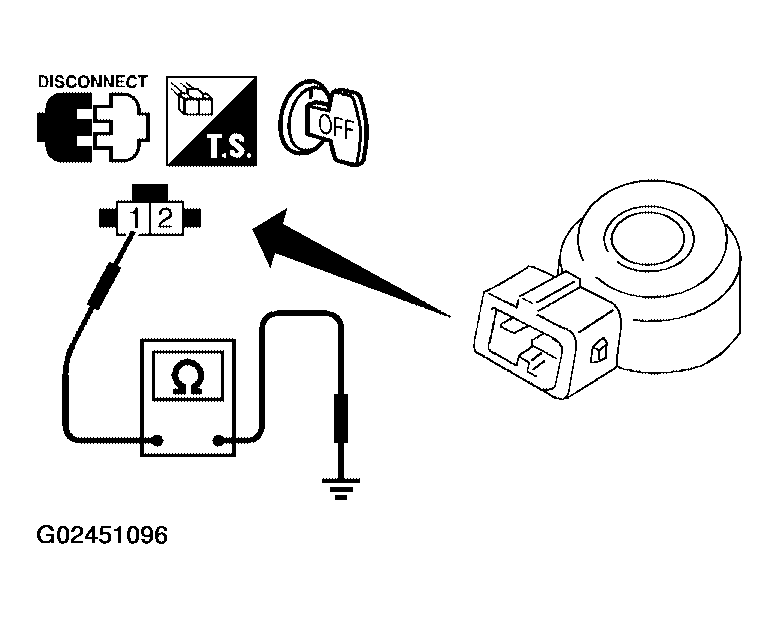

    2. Fig 1: Checking Resistance Between Knock Sensor Terminal 1 And Ground
    G02451096Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Do not use any knock sensors that have been dropped or physically damaged. Use only new ones.
