Engine Control System - DTCS U1000 To P0335 (Qr25DE)
>>
DTC P0181: FTT Sensor
>>
On Board Diagnosis Logic
On Board Diagnosis Logic

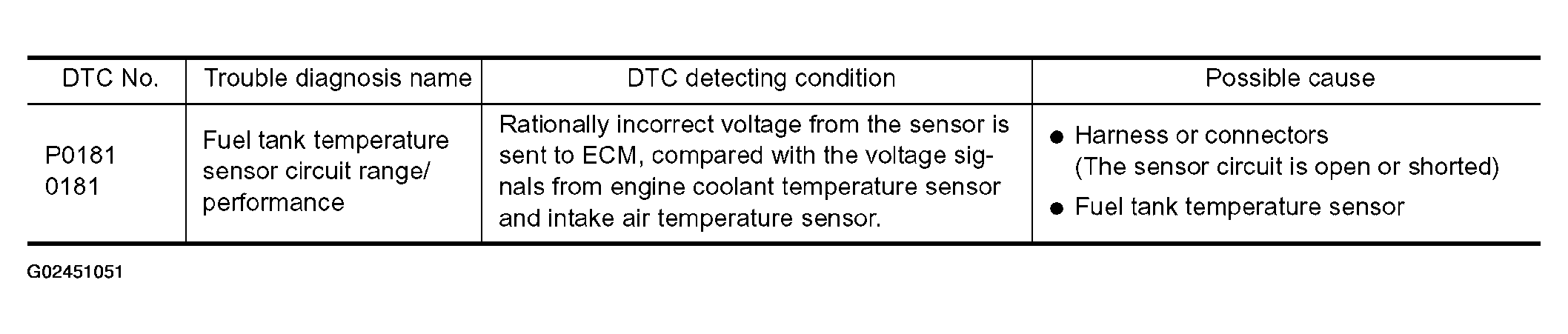

Fig 1: DTC P0181: On Board Diagnosis Logic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
