Diagnostic Trouble Codes Confirmation Procedure

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

With CONSULT-II

Turn ignition switch ON.
Select "DATA MONITOR" mode with CONSULT-II.

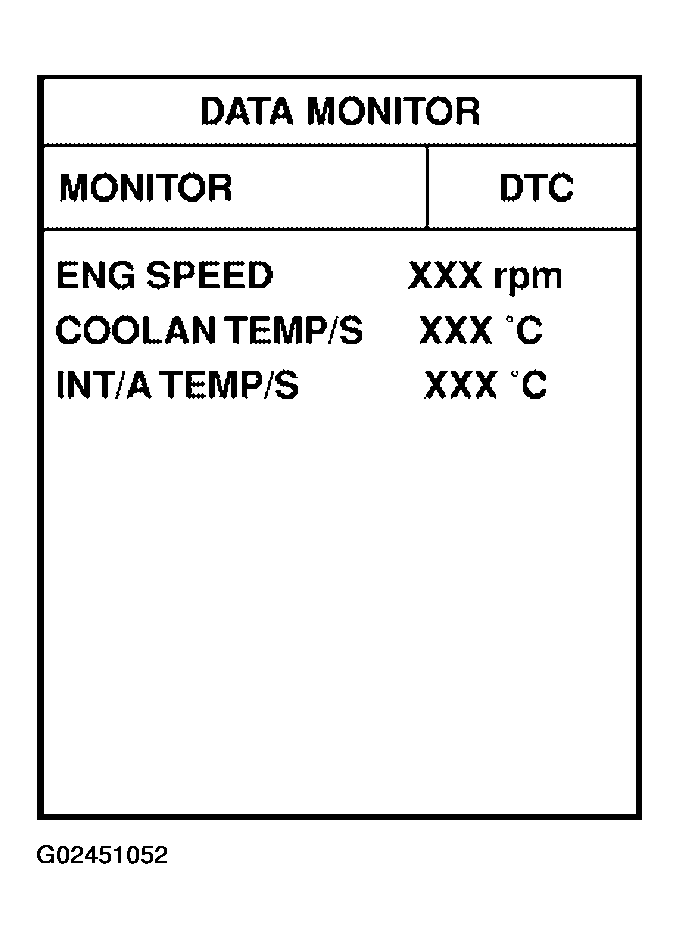

Fig 1: DATA MONITOR - CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Wait at least 10 seconds.
If the result is NG, go to "DIAGNOSTIC PROCEDURE ".

If the result is OK, go to following step.
Check "COOLAN TEMP/S" value.
If the "COOLANT TEMP/S" is less than 60°C (140°F), the result will be OK.

If the "COOLANT TEMP/S" is above 60°C (140°F), go to the following step.
Cool engine down until "COOLAN TEMP/S" signal is less than 60°C(140°F).
Wait at least 10 seconds.
If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

With GST

Follow the procedure "WITH CONSULT-II" above.
