Diagnostic Trouble Codes Confirmation Procedure

CAUTION: Be careful not to overheat engine.

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

With CONSULT-II

Turn ignition switch ON.
Select "DATA MONITOR" mode with CONSULT-II.

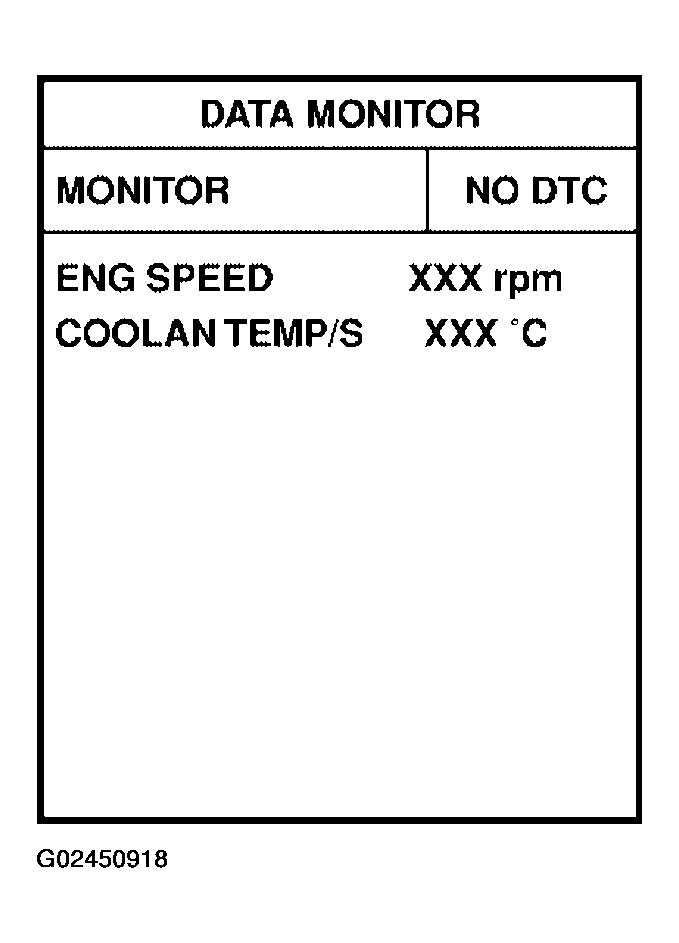

Fig 1: COOLAN TEMP/S - CONSULT-II Screen Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Check that "COOLAN TEMP/S" is above 10°C (50°F).
If it is above 10°C (50°F), the test result will be OK.

If it is below 10°C (50°F), go to following step.
Start engine and run it for 65 minutes at idle speed.
If "COOLAN TEMP/S" increases to more than 10°C (50°F) within 65 minutes, stop engine because the test result will be OK.
If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

With GST

Follow the procedure "WITH CONSULT-II" above.
