DTC P0117, P0118: ECT Sensor: Wiring Diagram

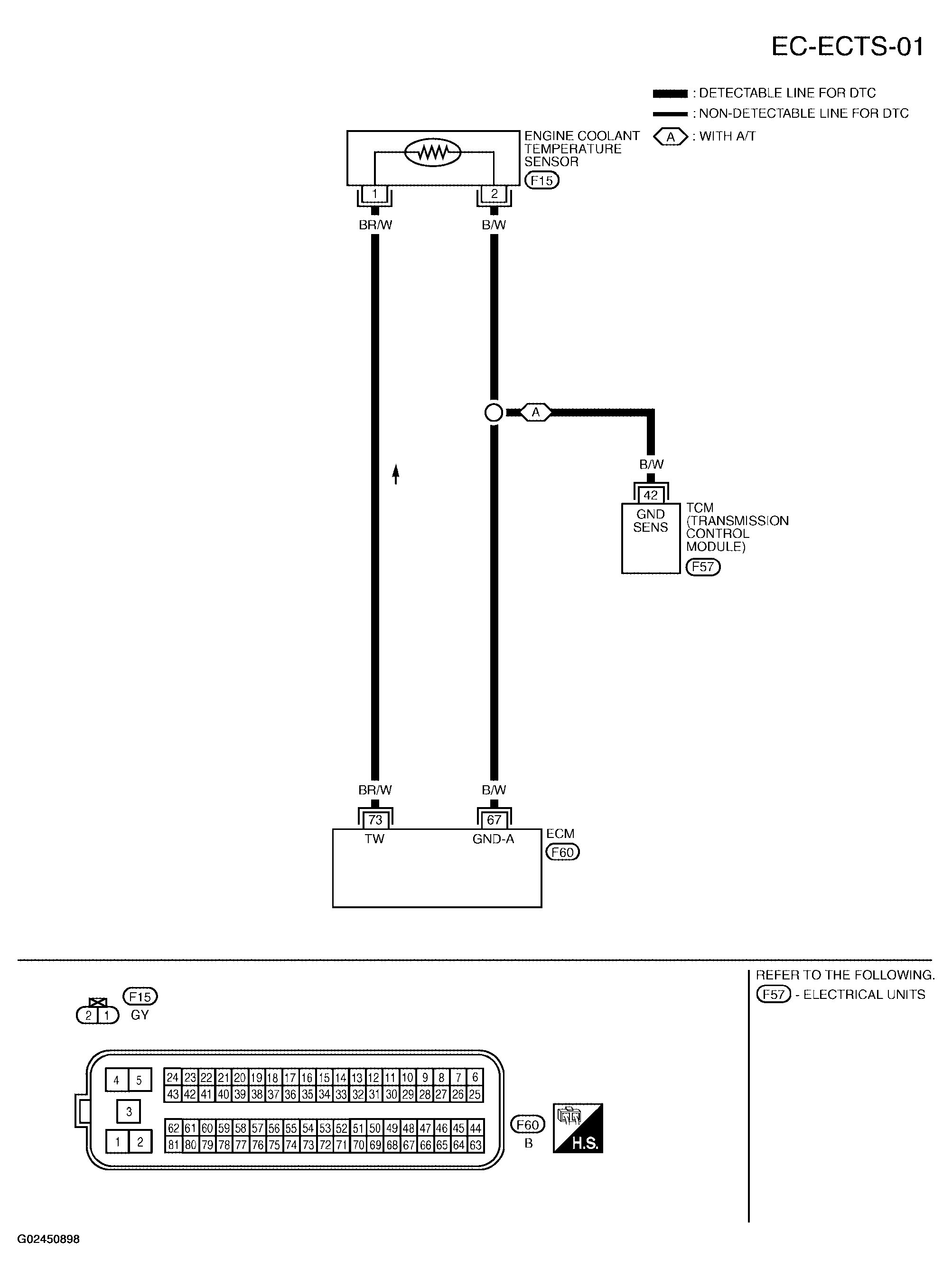

Fig 1: Wiring Diagram - ECT Sensor (EC-ECTS-01)

G02450898

Courtesy of NISSAN MOTOR CO., U.S.A.
