Fail-Safe Mode

When this malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.

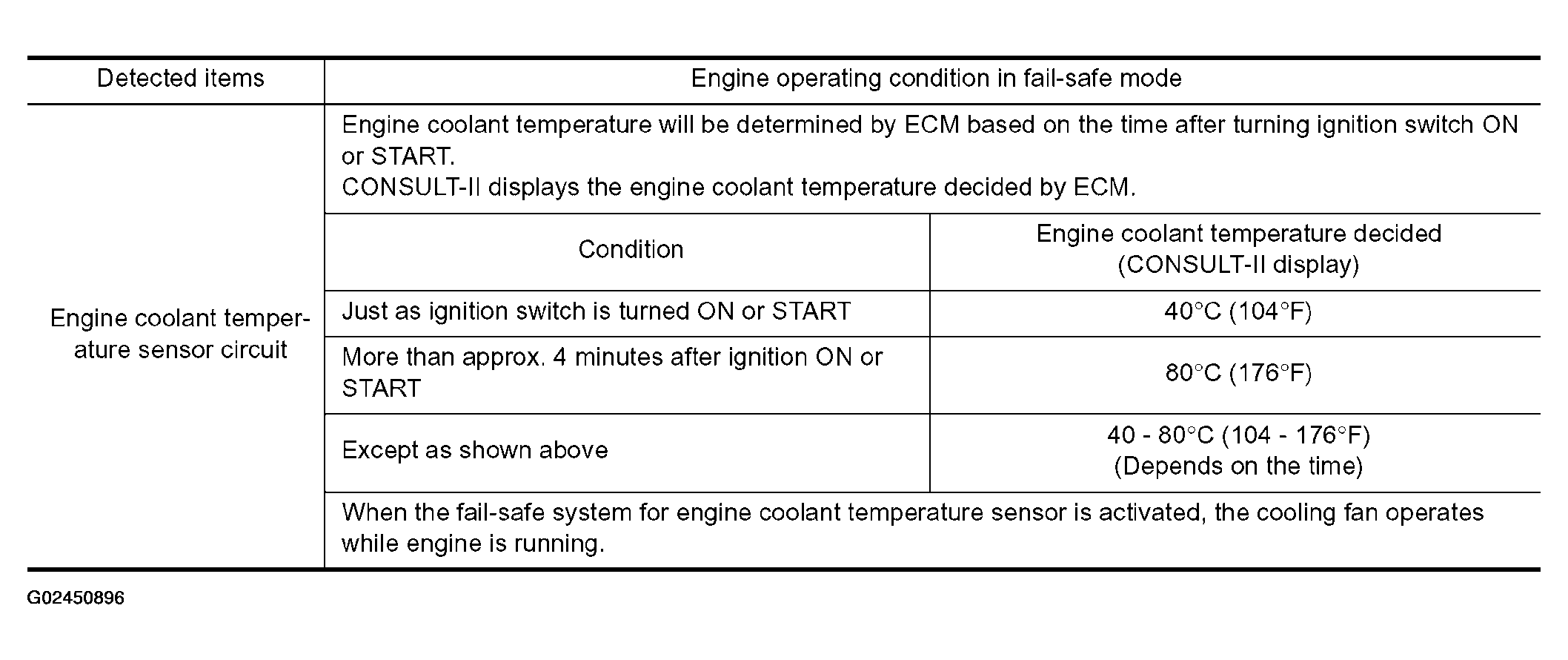

Fig 1: DTC P0117, P0118 & ECM Fail-Safe Mode Chart

G02450896

Courtesy of NISSAN MOTOR CO., U.S.A.
