Diagnostic Trouble Codes Confirmation Procedure

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

With CONSULT-II

Turn ignition switch ON.
Select "DATA MONITOR" mode with CONSULT-II.

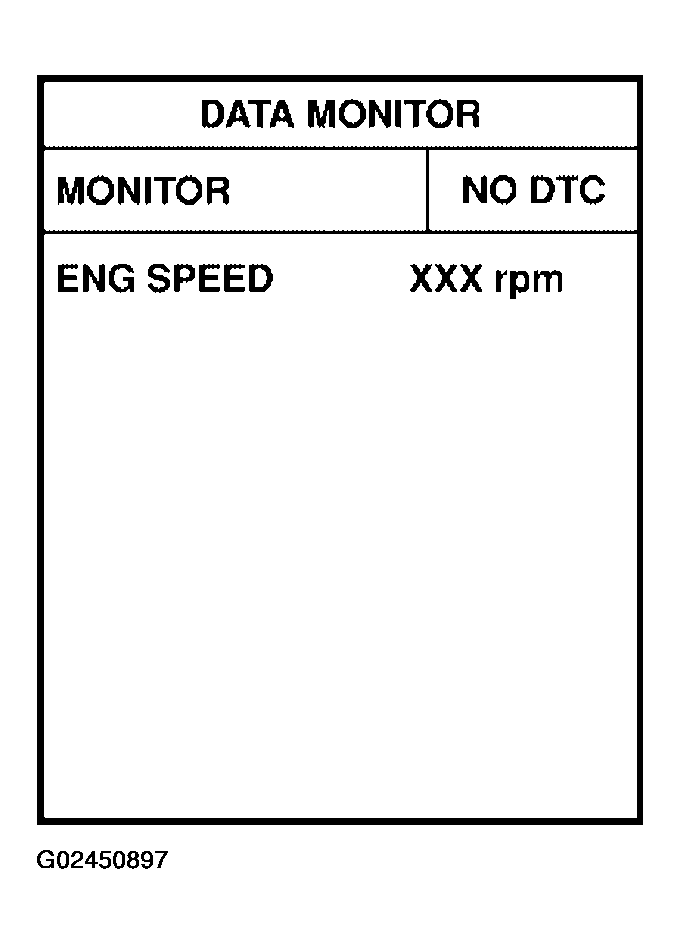

Fig 1: DATA MONITOR Mode - CONSULT-II Screen Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Wait at least 5 seconds.
If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

With GST

Follow the procedure "WITH CONSULT-II" above.
