On Board Diagnosis Logic

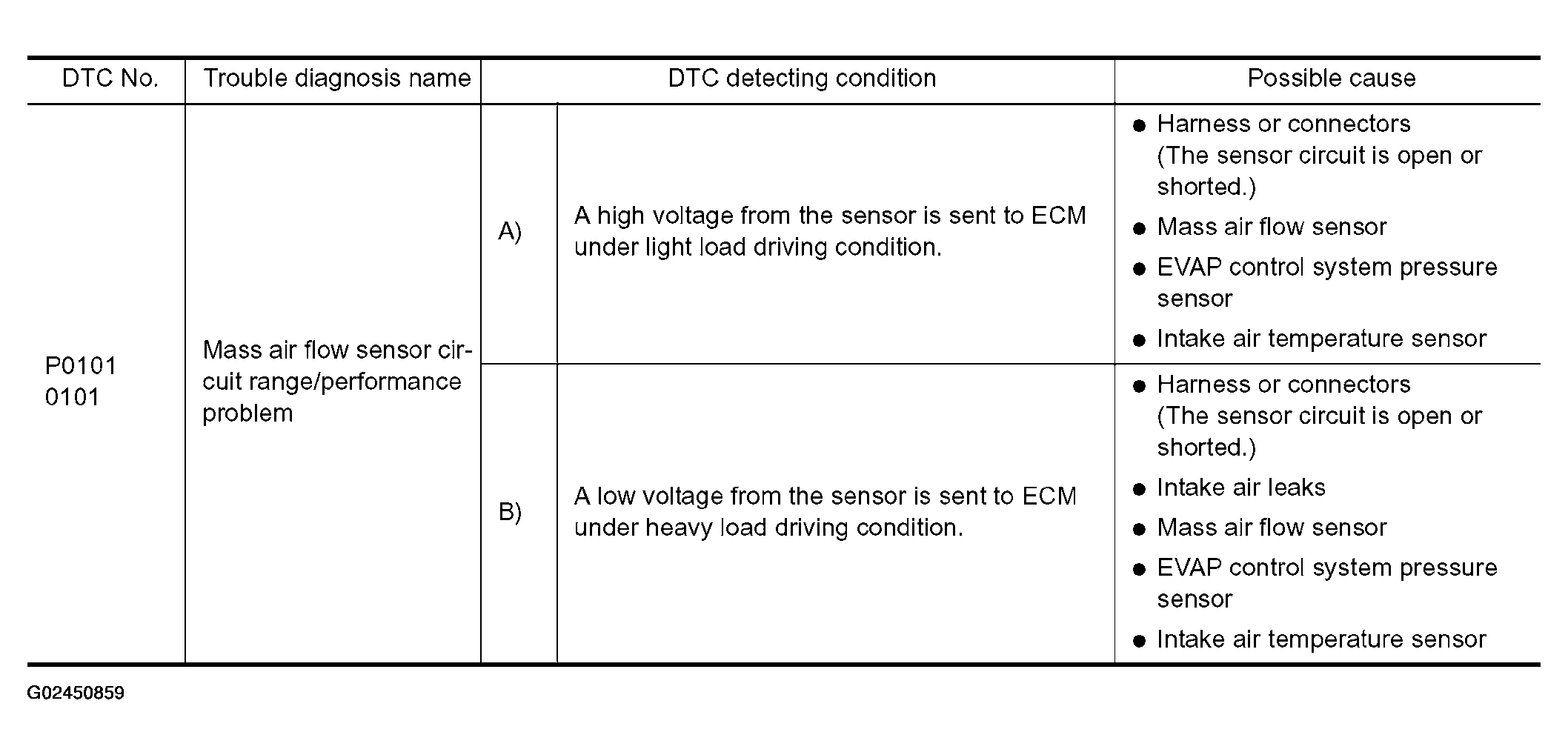

Fig 1: DTC P0101: Detecting Condition Chart

G02450859

Courtesy of NISSAN MOTOR CO., U.S.A.
