Diagnostic Trouble Codes Confirmation Procedure

CAUTION: Always drive at a safe speed.

NOTE:

If DTC P0011 is displayed with DTC P1111, first perform trouble diagnosis for DTC P1111. See DTC P1111 IVT CONTROL SOLENOID VALVE
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is between 10V and 16V at idle.

With CONSULT-II

Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.

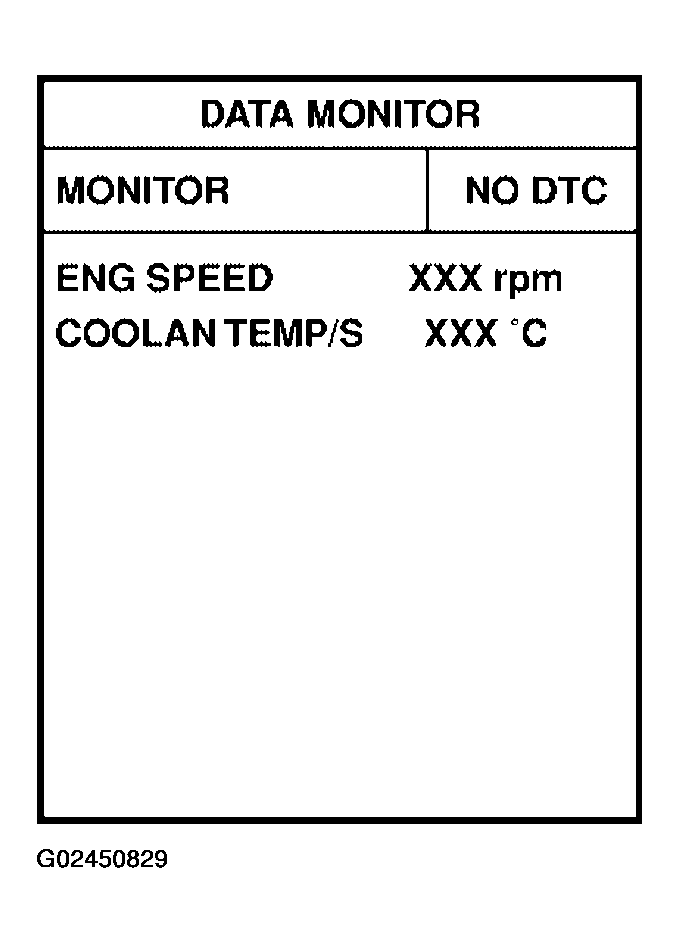

Fig 1: DATA MONITOR Mode - CONSULT-II Screen Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine and warm it up to the normal operating temperature.

Maintain the following conditions for at least 6 consecutive seconds.

Hold the accelerator pedal as steady as possible.

DTC P0011 CONFIRMATION PROCEDURE CONDITIONS

ENG SPEED	500 - 2, 000 rpm (A constant rotation is maintained.)
COOLANT TEMPS	70 - 120°C (158 - 248°F)
B/FUEL SCHDL	More than 4 msec
Selector lever	P or N position

Let engine idle for 10 seconds.
If the 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
If the 1st trip DTC is not detected, go to next step.

Maintain the following conditions for at least 6 consecutive seconds.

DTC P0011 CONFIRMATION PROCEDURE CONDITIONS (1ST TRIP DETECTED)

ENG SPEED	1, 800 - 3, 175 rpm (A constant rotation is maintained.)
COOLANT TEMPS	70 - 105°C (158 - 221 °F)
Selector lever	1st or 2nd position
Driving location uphill	Driving vehicle uphill (Increased engine load will help maintain the driving conditions required for this test.)

With GST

Follow the procedure "WITH CONSULT-II" above.
