Removal and Installation: Notes

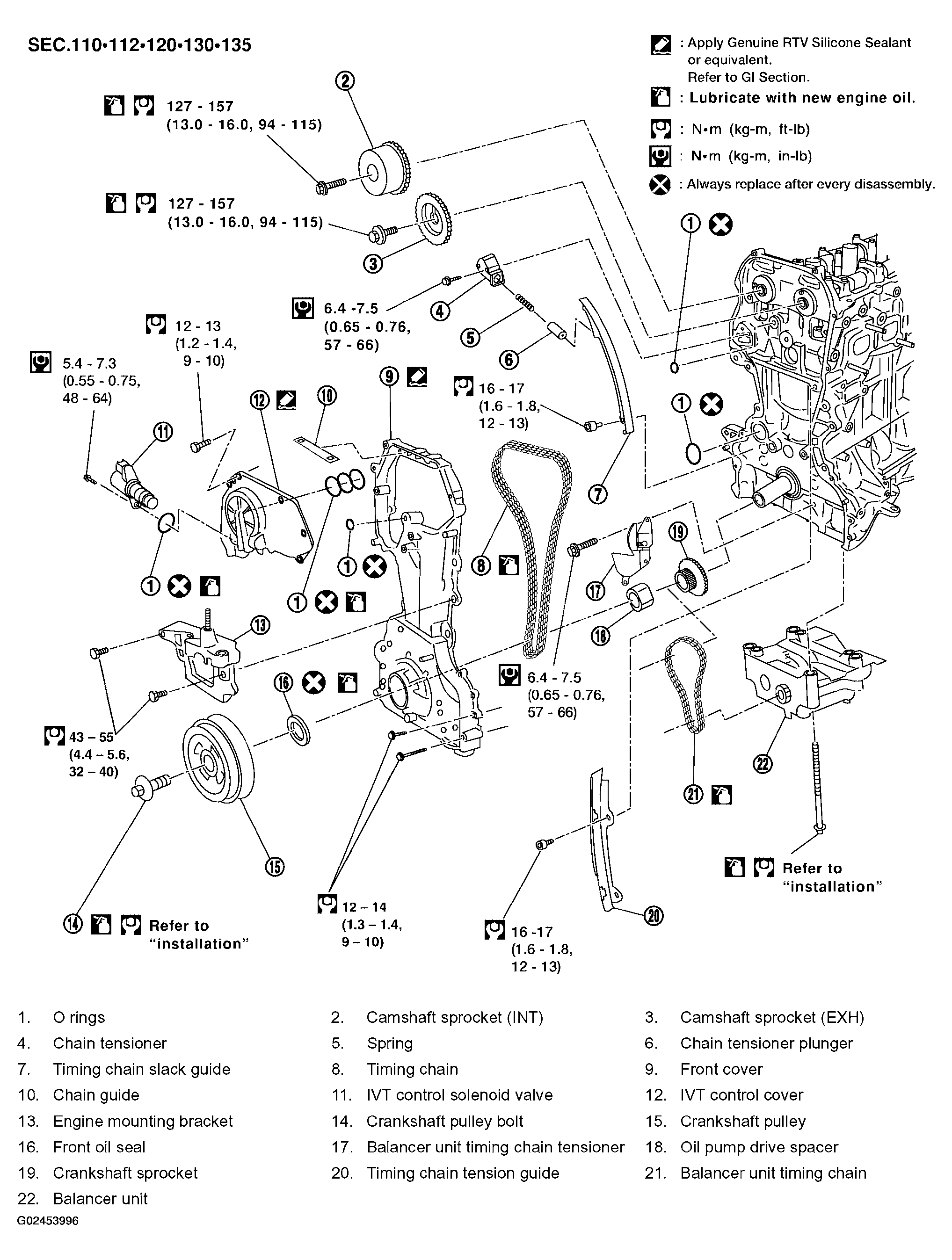

Fig 1: Exploded View Of Timing Chain With Torque Specifications
G02453996Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Apply new engine oil to parts marked in illustration before installation.
