Home >> Nissan-Datsun >> 2005 >> Sentra SE-R >> Repair and Diagnosis >> Engine Mechanical >> Engine Mechanical (Qr25DE) >> Cylinder Block >> Disassembly and Assembly >> Notes

Disassembly and Assembly: Notes

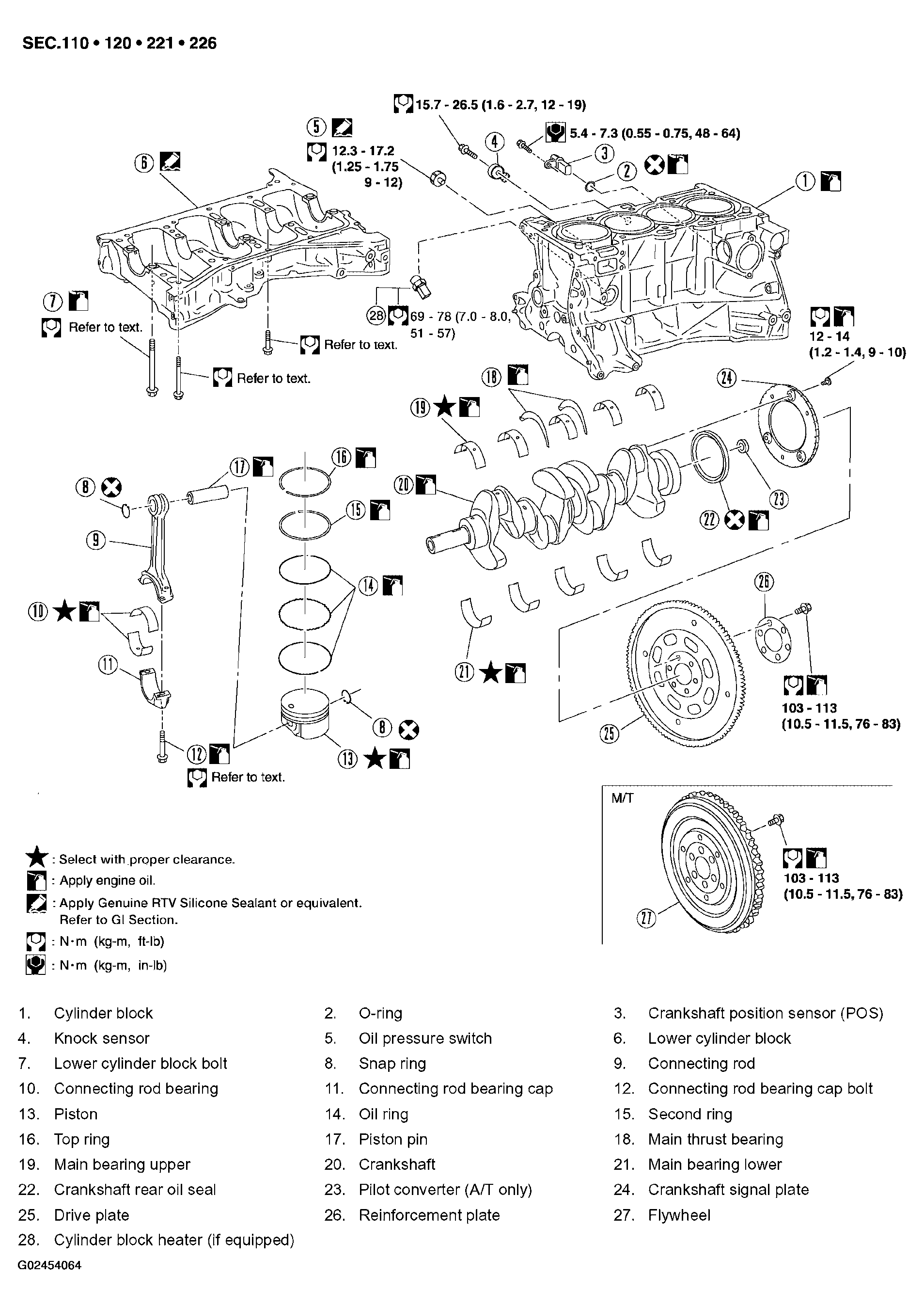

Fig 1: Exploded View Of Cylinder Block With Torque Specifications
G02454064Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Apply new engine oil to parts marked in illustration before installation.
