Without Tachometer

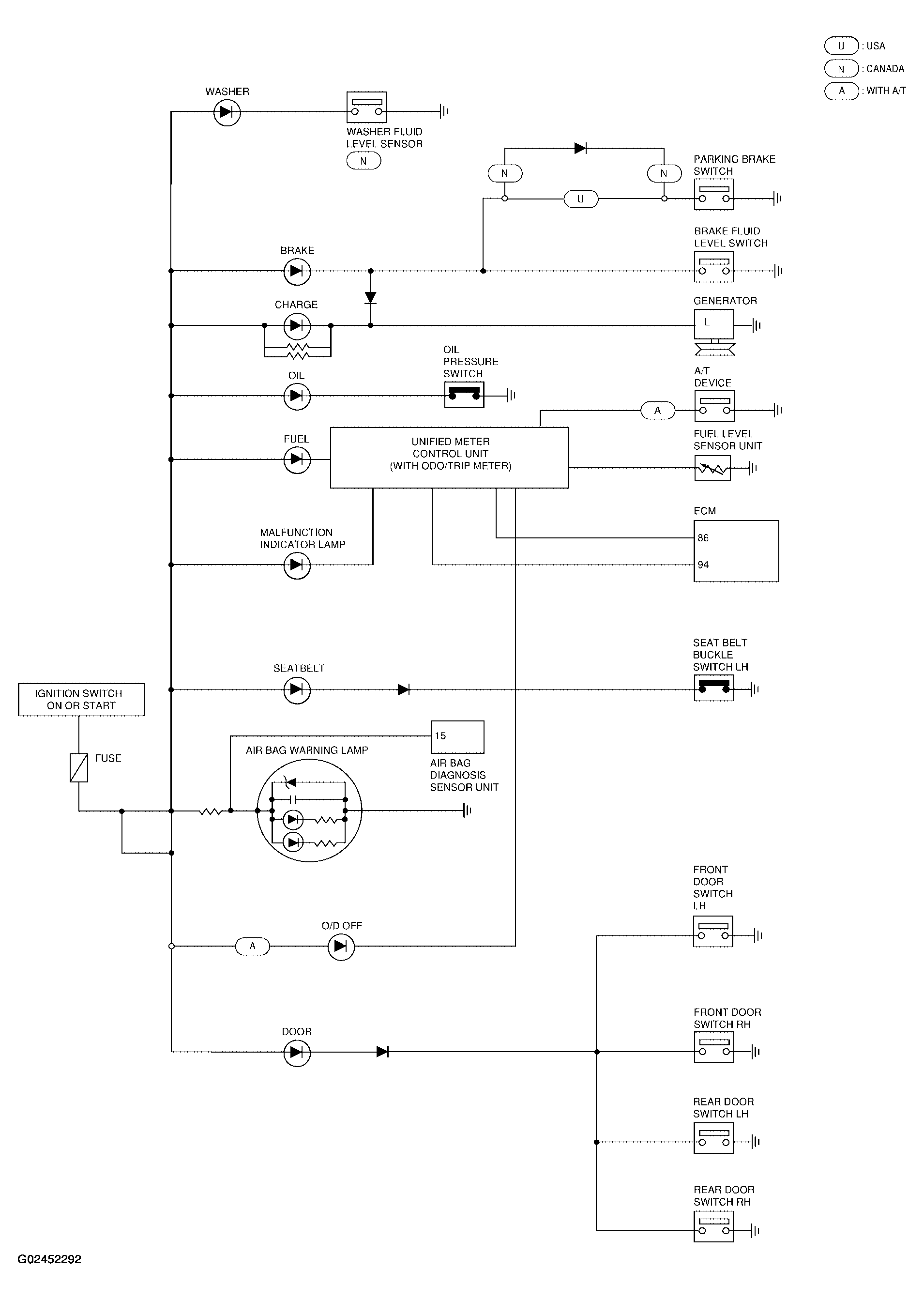

Fig 1: Warning Lamps - Schematic Diagram (Without Tachometer)

G02452292

Courtesy of NISSAN MOTOR CO., U.S.A.
